Levelling device/tubing/attaching parts of Rolls Royce Rolls Royce Phantom

View All

Rolls Royce Phantom - Levelling device/tubing/attaching parts

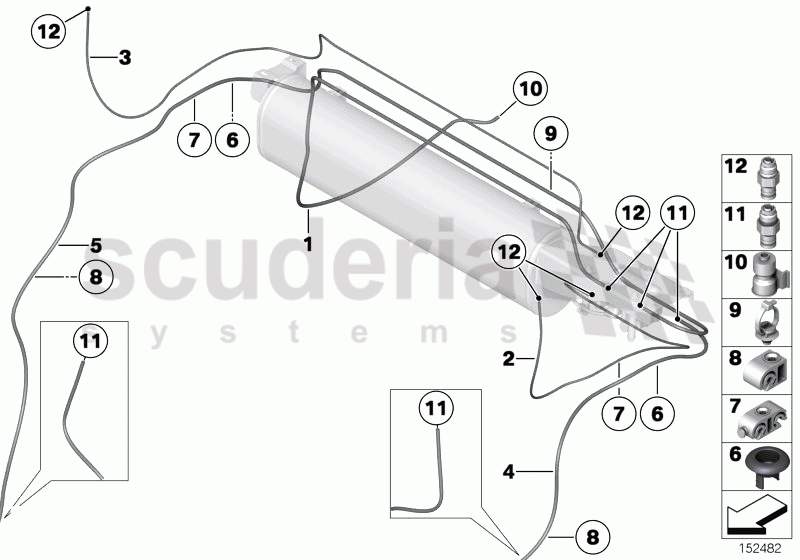

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	37236759551	Pipe, valve unit/air supply system	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37230151042	Pipe, rear left air spring	Enquire	To Order
	37236759555	Pipe, rear left air spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37236759556	Pipe, rear right air spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37206781087	Pipe, front left air spring	Enquire	To Order
	37230151040	Pipe, front left air spring	Enquire	To Order
	37236759553	Pipe, front left air spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37206781088	Pipe, front right air spring	Enquire	To Order
	37230151041	Pipe, front right air spring	Enquire	To Order
	37236759554	Pipe, front right air spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37236759552	Rubber grommet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34301161736	BRAKE PIPE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34301161567	BRAKE PIPE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61138375988	Cable strap with bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37226754486	DISTRIBUTION PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37226754370	Screwed connection	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37221092403	Screwed connection	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	37221092403	Screwed connection	37221092403 Screwed connection D=4MM	-	-	Enquire
-	37226754370	Screwed connection	37226754370 Screwed connection D=6MM	-	-	Enquire
-	37226754486	DISTRIBUTION PIECE	37226754486 DISTRIBUTION PIECE	-	-	Enquire
1	37236759551	Pipe, valve unit/air supply system	37236759551 Pipe, valve unit/air supply system 1550MM	-	-	Enquire
2	37230151042	Pipe, rear left air spring	37230151042 Pipe, rear left air spring	-	-	Enquire
2	37236759555	Pipe, rear left air spring	37236759555 Pipe, rear left air spring 775MM	-	-	Enquire
3	37236759556	Pipe, rear right air spring	37236759556 Pipe, rear right air spring 1390MM	-	-	Enquire
4	37206781087	Pipe, front left air spring	37206781087 Pipe, front left air spring 4850MM	-	-	Enquire
4	37230151040	Pipe, front left air spring	37230151040 Pipe, front left air spring	-	-	Enquire
4	37236759553	Pipe, front left air spring	37236759553 Pipe, front left air spring 4600MM	-	-	Enquire
5	37206781088	Pipe, front right air spring	37206781088 Pipe, front right air spring 5980MM	-	-	Enquire
5	37230151041	Pipe, front right air spring	37230151041 Pipe, front right air spring	-	-	Enquire
5	37236759554	Pipe, front right air spring	37236759554 Pipe, front right air spring 5730MM	-	-	Enquire
6	37236759552	Rubber grommet	37236759552 Rubber grommet	-	-	Enquire
7	34301161736	BRAKE PIPE BRACKET	34301161736 BRAKE PIPE BRACKET	-	-	Enquire
8	34301161567	BRAKE PIPE BRACKET	34301161567 BRAKE PIPE BRACKET	-	-	Enquire
9	61138375988	Cable strap with bracket	61138375988 Cable strap with bracket Ð¨=7,9 / L=150	-	-	Enquire
10	37226754486	DISTRIBUTION PIECE	37226754486 DISTRIBUTION PIECE	-	-	Enquire
11	37226754370	Screwed connection	37226754370 Screwed connection D=6MM	-	-	Enquire
12	37221092403	Screwed connection	37221092403 Screwed connection D=4MM	-	-	Enquire
