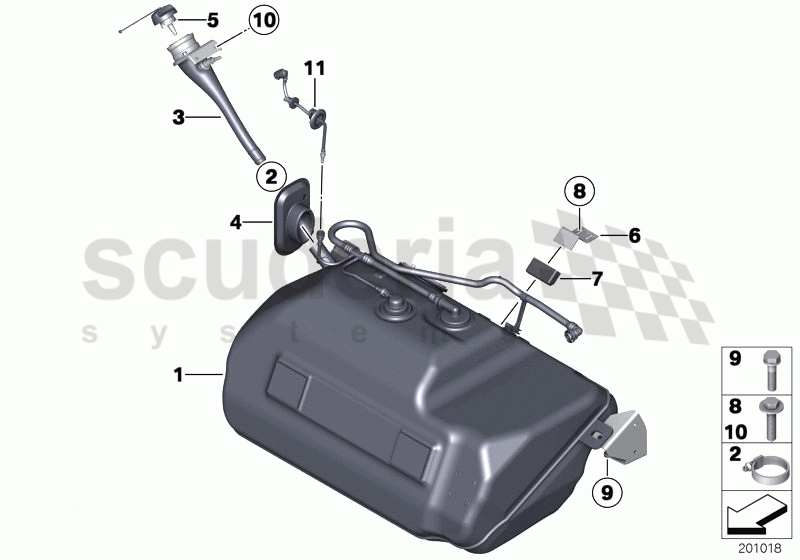

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7129952115	Hose clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16116759297	Rubber seal	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	16116762710	Spacer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16116759294	Spacer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16117210663	Scavenge air line	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	16117138003	Plastic fuel tank	16117138003 Plastic fuel tank	-	-	Enquire
1	16117138003	Plastic fuel tank	16117138003 Plastic fuel tank	-	-	Enquire
1	16117204186	Plastic fuel tank	16117204186 Plastic fuel tank	-	-	Enquire
2	7129952115	Hose clamp	7129952115 Hose clamp L32-38	-	-	Enquire
3	16116759299	Filler pipe	16116759299 Filler pipe	-	-	Enquire
3	16116759300	Filler pipe	16116759300 Filler pipe	-	-	Enquire
4	16116759297	Rubber seal	16116759297 Rubber seal	-	-	Enquire
5	16116759251	Filler cap	16116759251 Filler cap	-	-	Enquire
5	16116765046	Filler cap	16116765046 Filler cap	-	-	Enquire
5	16117193382	Filler cap	16117193382 Filler cap	-	-	Enquire
5	16117222391	Filler cap	16117222391 Filler cap	-	-	Enquire
6	16116762710	Spacer	16116762710 Spacer	-	-	Enquire
7	16116759294	Spacer	16116759294 Spacer	-	-	Enquire
8	7119901131	Hex Bolt with washer	7119901131 Hex Bolt with washer M8X25-Z1-ZNS	-	-	Enquire
8	7119905394	Hex Bolt with washer	7119905394 Hex Bolt with washer M8X25-8.8-ZNNIV	-	-	Enquire
9	7119901509	Hex Bolt	7119901509 Hex Bolt M6X18 ZNS	-	-	Enquire
9	7119902933	Hex Bolt with washer	7119902933 Hex Bolt with washer M6X18-U2-ZNS3	-	-	Enquire
10	7119901588	Hex Bolt with washer	7119901588 Hex Bolt with washer M6X14-Z2-ZNS	-	-	Enquire
10	7119905952	Hex Bolt with washer	7119905952 Hex Bolt with washer M6X14U2-ZNNIVSI	-	-	Enquire
11	16117210663	Scavenge air line	16117210663 Scavenge air line	-	-	Enquire

Haven't found what you're looking for?

View Cart / Checkout

Fuel Tank

Rolls Royce Phantom
