Rear Axle Support Wheel Suspension

Rolls Royce Phantom Extended RR12(2017-2023)

Find Your Part

Rolls Royce Phantom Extended RR12(2017-2023) - Rear axle support wheel suspension

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
33306871855 Carrier, left $2,320.58 To Order
33306871856 Carrier, right $2,320.58 To Order
Photo Part No Description Price (each) Stock
33306861143 Covering left $55.60 To Order
33306861144 Covering right $55.60 To Order
Photo Part No Description Price (each) Stock
7119902751 Hex nut $1.88 To Order
7149213164 Hex Bolt $1.26 IN STOCK
Photo Part No Description Price (each) Stock
33326871865 Toe arm with rubber mount, left $668.12 To Order
33326871866 Toe arm with rubber mount, right $668.12 To Order
Photo Part No Description Price (each) Stock
33326875104 Camber link $528.34 To Order
Photo Part No Description Price (each) Stock
33326883339 Wishbone, bottom, with rubber mount left $674.17 IN STOCK
33326883340 Wishbone, bottom,with rubber mount right $640.45 To Order
Photo Part No Description Price (each) Stock
33326867537 Guide arm, left $453.63 To Order
33326867538 Guide arm, right $453.63 To Order
Photo Part No Description Price (each) Stock
33326871879 Trailing arm with rubber mount $101.35 IN STOCK
Photo Part No Description Price (each) Stock
33306861944 Hex Bolt $14.09 To Order
Photo Part No Description Price (each) Stock
7119906489 Hexagon screw with flange $3.63 To Order
Photo Part No Description Price (each) Stock
31106890194 Hexagon nut with collar $4.74 To Order
33306874090 Eccentric bolt $12.73 To Order
Photo Part No Description Price (each) Stock
33306874239 Eccentric washer $5.28 To Order
Photo Part No Description Price (each) Stock
33306867271 Hex Bolt with washer $9.42 To Order
Photo Part No Description Price (each) Stock
33306787062 Combination nut $5.05 IN STOCK
Photo Part No Description Price (each) Stock
33176760336 Hex Bolt with washer $14.04 To Order
Photo Part No Description Price (each) Stock
7119908024 Torx-bolt with washer $5.96 To Order
Photo Part No Description Price (each) Stock
7119906292 Hex Bolt $3.73 To Order
Photo Part No Description Price (each) Stock
37106789678 Hex nut with flange $2.28 To Order
Photo Part No Description Price (each) Stock
34526869993 Bracket, left $9.82 To Order
34526886993 Holder, wheel speed sensor, left $13.18 To Order
34526869994 Bracket, right $9.82 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
34526885831 Wheel-speed sensor $87.12 To Order
Photo Part No Description Price (each) Stock
34509804151 ASA screw, thread-forming $2.34 To Order
Photo Part No Description Price (each) Stock
34526869189 Holder, wheel speed sensor, left $43.65 To Order
34526869190 Holder, wheel speed sensor, right $43.65 To Order
Photo Part No Description Price (each) Stock
34526869191 Bracket, left $12.44 To Order
34526869192 Bracket, right $12.44 To Order
Photo Part No Description Price (each) Stock
7147169847 Plastic cap nut with washer $0.52 To Order
Photo Part No Description Price (each) Stock
34526878437 Bracket, left $8.50 To Order
34526878438 Bracket, right $8.50 To Order
View All

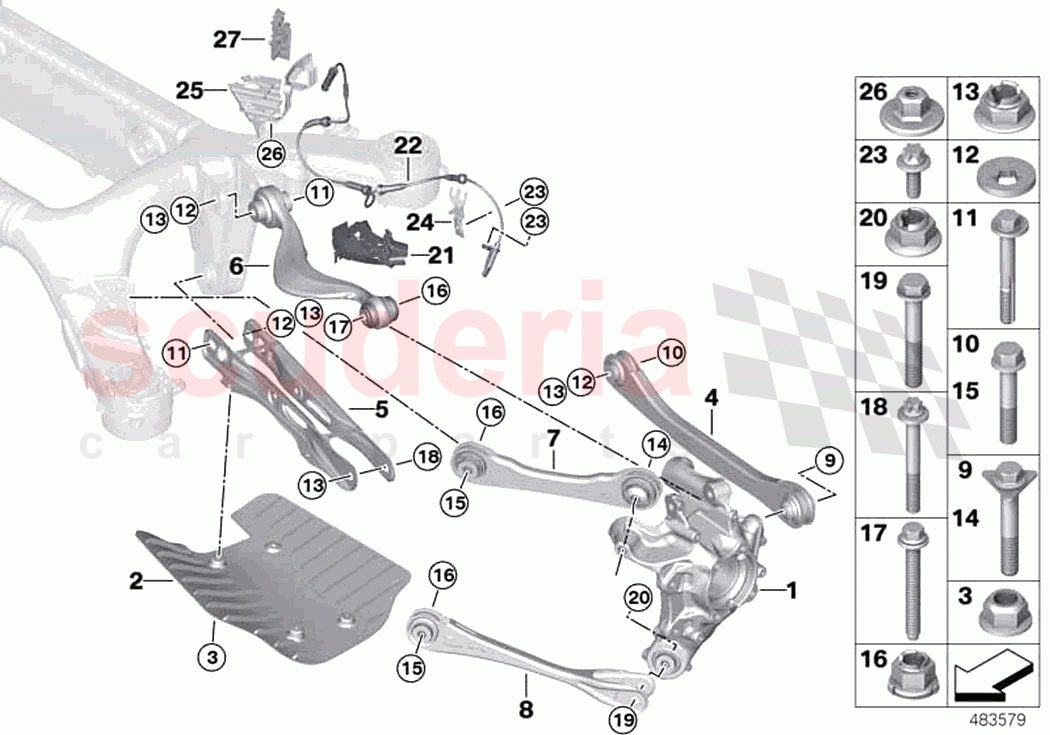

Rear axle support wheel suspension of Rolls Royce Rolls Royce Phantom Extended RR12(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 33306871855
Carrier, left 		$2,320.58 1
1 33306871856
Carrier, right 		$2,320.58 1
2 33306861143
Covering left 		$55.60 1
2 33306861144
Covering right 		$55.60 1
3 7119902751
Hex nut
M6-8-ZNS3 		$1.88 1
3 7149213164
Hex Bolt
TS5X20 SW8 D=22
IN STOCK 		$1.26 1
4 33326871865
Toe arm with rubber mount, left 		$668.12 1
4 33326871866
Toe arm with rubber mount, right 		$668.12 1
5 33326875104
Camber link 		$528.34 2
6 33326883339
Wishbone, bottom, with rubber mount left
IN STOCK 		$674.17 1
6 33326883340
Wishbone, bottom,with rubber mount right 		$640.45 1
7 33326867537
Guide arm, left 		$453.63 1
7 33326867538
Guide arm, right 		$453.63 1
8 33326871879
Trailing arm with rubber mount
IN STOCK 		$101.35 2
9 33306861944
Hex Bolt
M16X1,5X100 		$14.09 2
10 7119906489
Hexagon screw with flange
M12X1,5X67-10.9 		$3.63 2
11 31106890194
Hexagon nut with collar
M14X1,5-10 ZNS3 		$4.74 2
11 33306874090
Eccentric bolt
M14X1.5 		$12.73 4
12 33306874239
Eccentric washer 		$5.28 2
15 33306867271
Hex Bolt with washer
M14X1,5X84 		$9.42 4
16 33306787062
Combination nut
M14X1,5-10ZNNIV
IN STOCK 		$5.05 4
17 33176760336
Hex Bolt with washer
M14X1,5X133ZNS3 		$14.04 2
18 7119908024
Torx-bolt with washer
M14X1,5X85 		$5.96 2
19 7119906292
Hex Bolt
M12X1,5X80 10.9 		$3.73 2
20 37106789678
Hex nut with flange
M12X1,5-10-ZNS3 		$2.28 2
21 34526869993
Bracket, left
from 04.2018 		$9.82 1
21 34526886993
Holder, wheel speed sensor, left 		$13.18 1
21 34526869994
Bracket, right
from 04.2018 		$9.82 1
21 34526886994
Holder, wheel speed sensor, right 		$13.18 1
22 34526885831
Wheel-speed sensor 		$87.12 2
23 34509804151
ASA screw, thread-forming
M6X16 		$2.34 2
24 34526869189
Holder, wheel speed sensor, left 		$43.65 1
24 34526869190
Holder, wheel speed sensor, right 		$43.65 1
25 34526869191
Bracket, left 		$12.44 1
25 34526869192
Bracket, right 		$12.44 1
26 7147169847
Plastic cap nut with washer
D=22MM 		$0.52 4
27 34526878437
Bracket, left 		$8.50 1
27 34526878438
Bracket, right 		$8.50 1
