Add On Parts Electr Steering Column Adj

Rolls Royce Phantom Extended RR12(2017-2023)

Find Your Part

Rolls Royce Phantom Extended RR12(2017-2023) - Add on parts electr steering column adj

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
32306894880 Steering wheel column adjustment,electr. Enquire To Order
Photo Part No Description Price (each) Stock
7119904024 Hex nut Enquire To Order
Photo Part No Description Price (each) Stock
32306884585 Steering shaft Enquire To Order
Photo Part No Description Price (each) Stock
32306884587 Swivel joint Enquire To Order
Photo Part No Description Price (each) Stock
32306778609 Torx bolt Enquire To Order
Photo Part No Description Price (each) Stock
32306871974 Steering shaft sleeve Enquire To Order
Photo Part No Description Price (each) Stock
32306871975 Steering shaft sleeve Enquire To Order
Photo Part No Description Price (each) Stock
34506859776 Hex nut Enquire To Order
Photo Part No Description Price (each) Stock
32302635621 Screw microencapsulation hex Enquire To Order
7149890645 Torx screw, micro-encapsulated Enquire To Order
Photo Part No Description Price (each) Stock
32306885215 Steering column control unit Enquire To Order
32308842043 Steering column control unit Enquire To Order
Photo Part No Description Price (each) Stock
32306891640 Steering column control unit bracket Enquire To Order
Photo Part No Description Price (each) Stock
7149319414 C-clip sheet metal nut Enquire To Order
Photo Part No Description Price (each) Stock
7149323312 Combi. fillister head self-tapping screw Enquire To Order
Photo Part No Description Price (each) Stock
32306884510 Spacer clip Enquire To Order
View All

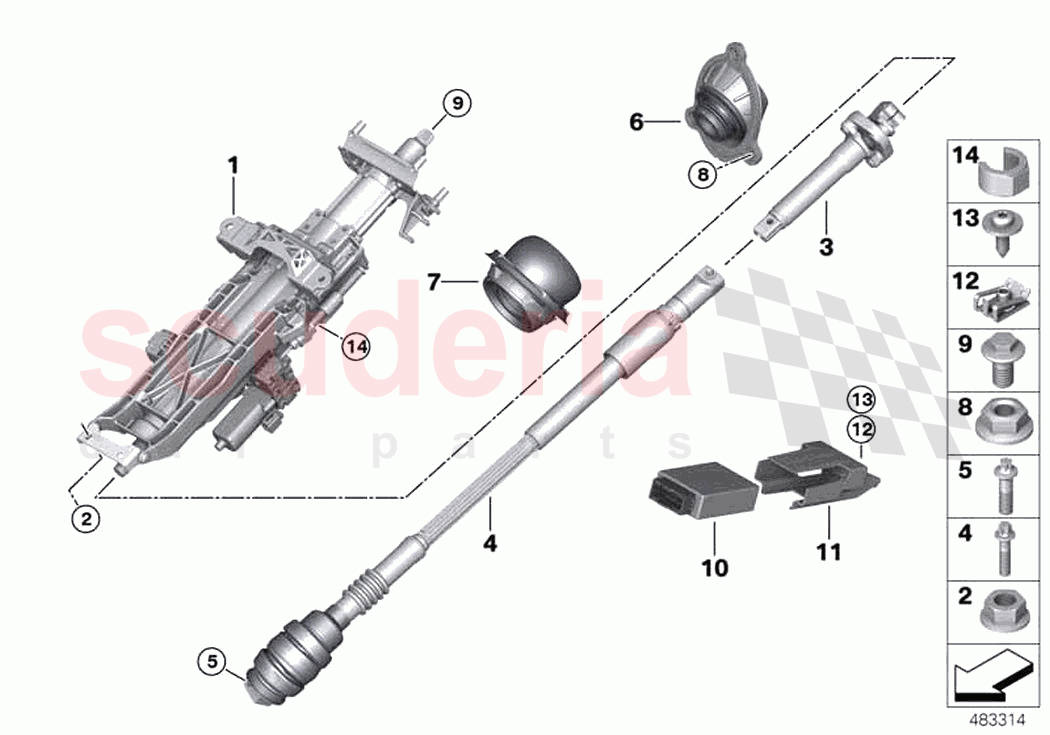

Add on parts electr steering column adj of Rolls Royce Rolls Royce Phantom Extended RR12(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 32306894880
Steering wheel column adjustment,electr. 		- 1 Enquire
2 7119904024
Hex nut
M8-ZNS3 		- 4 Enquire
3 32306884585
Steering shaft 		- 1 Enquire
4 32306884587
Swivel joint 		- 1 Enquire
5 32306778609
Torx bolt
M8X33 		- 3 Enquire
6 32306871974
Steering shaft sleeve 		- 1 Enquire
7 32306871975
Steering shaft sleeve 		- 1 Enquire
8 34506859776
Hex nut
M6-8-SC-ZNNIV S 		- 3 Enquire
9 32302635621
Screw microencapsulation hex
M14X1,5; from 03.2019 		- 1 Enquire
9 7149890645
Torx screw, micro-encapsulated
M14X1.5X25 ZNS3 		- 1 Enquire
10 32306885215
Steering column control unit
from 07.2020 		- 1 Enquire
10 32308842043
Steering column control unit 		- 1 Enquire
11 32306891640
Steering column control unit bracket 		- 1 Enquire
12 7149319414
C-clip sheet metal nut 		- 1 Enquire
13 7149323312
Combi. fillister head self-tapping screw 		- 1 Enquire
14 32306884510
Spacer clip 		- 1 Enquire
