Find Your Part

Battery mounting parts of Rolls Royce Rolls Royce Phantom Extended RR12(2017-2023)

View All

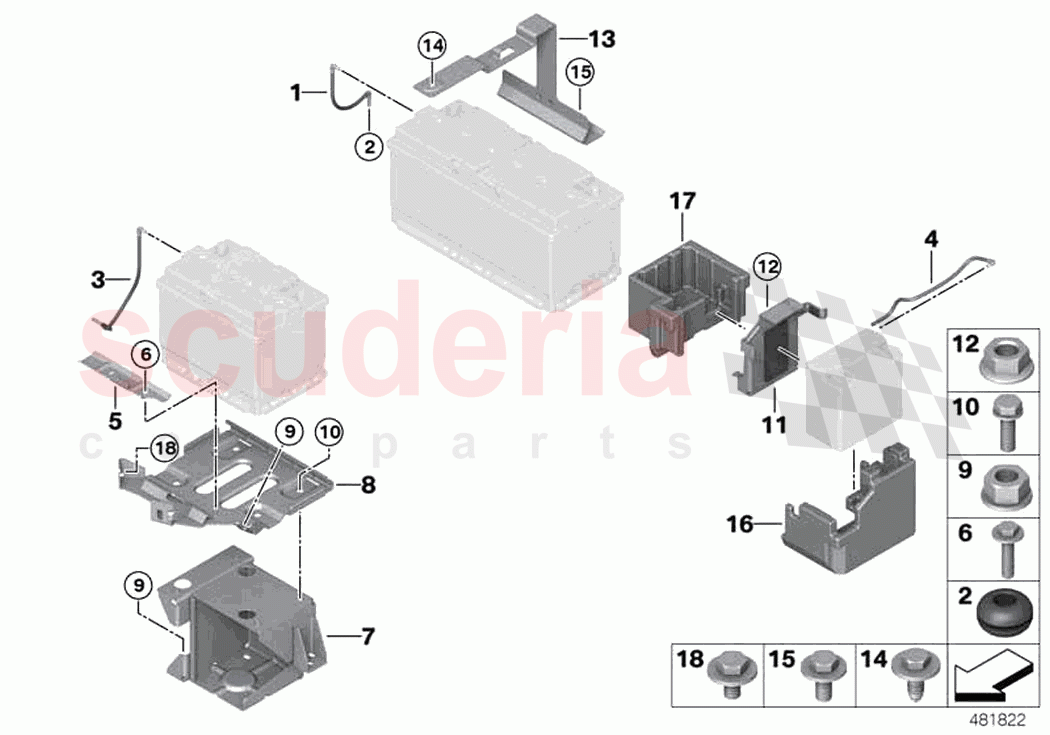

Rolls Royce Phantom Extended RR12(2017-2023) - Battery mounting parts

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	61216836685	Degassing hose, battery	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61218050550	Grommet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61216836684	Degassing hose, battery	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61216836686	Degassing hose, battery	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61216836677	Battery clamping rail	Enquire	To Order
	61216836680	Battery clamping rail	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119903994	Hex Bolt with washer	Enquire	To Order
	7146874880	Hex screw with collar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61216836653	Battery tray	Enquire	To Order
	61216836654	Battery tray	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61216836675	Battery carrier, front	Enquire	To Order
	61216836676	Battery carrier, front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904862	Hex nut with plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904793	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61216836671	Battery roll bar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904544	Stud bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61216836668	Battery roll bar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146961201	Self-locking hex bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119906119	Hex Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61216836673	Battery box	Enquire	To Order
	61219864788	Battery box	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61216836674	Dividing element	Enquire	To Order
	61216993538	Dividing element	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904459	Hex Bolt with washer	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	61216836685	Degassing hose, battery	61216836685 Degassing hose, battery	-	1	Enquire
2	61218050550	Grommet	61218050550 Grommet 10,5MM	-	1	Enquire
3	61216836684	Degassing hose, battery	61216836684 Degassing hose, battery	-	1	Enquire
4	61216836686	Degassing hose, battery	61216836686 Degassing hose, battery	-	1	Enquire
5	61216836677	Battery clamping rail	61216836677 Battery clamping rail	-	1	Enquire
5	61216836680	Battery clamping rail	61216836680 Battery clamping rail	-	1	Enquire
6	7119903994	Hex Bolt with washer	7119903994 Hex Bolt with washer M6X30-U2-ZNS3; from 03.2018	-	2	Enquire
6	7146874880	Hex screw with collar	7146874880 Hex screw with collar M8X30-10.9 ZNS3; to 03.2018	-	2	Enquire
7	61216836653	Battery tray	61216836653 Battery tray	-	1	Enquire
7	61216836654	Battery tray	61216836654 Battery tray	-	1	Enquire
8	61216836675	Battery carrier, front	61216836675 Battery carrier, front	-	1	Enquire
8	61216836676	Battery carrier, front	61216836676 Battery carrier, front	-	1	Enquire
9	7129904862	Hex nut with plate	7129904862 Hex nut with plate M8-ZNS3	-	4	Enquire
10	7119904793	Hex Bolt with washer	7119904793 Hex Bolt with washer M8X25 ZNS3	-	4	Enquire
11	61216836671	Battery roll bar	61216836671 Battery roll bar	-	1	Enquire
12	7129904544	Stud bolt	7129904544 Stud bolt M6X30-ZNNIV SI	-	2	Enquire
13	61216836668	Battery roll bar	61216836668 Battery roll bar	-	1	Enquire
14	7146961201	Self-locking hex bolt	7146961201 Self-locking hex bolt M6	-	1	Enquire
15	7119906119	Hex Bolt	7119906119 Hex Bolt M8X20- 8.8-ZNS3	-	2	Enquire
16	61216836673	Battery box	61216836673 Battery box	-	1	Enquire
16	61219864788	Battery box	61219864788 Battery box	-	1	Enquire
17	61216836674	Dividing element	61216836674 Dividing element	-	1	Enquire
17	61216993538	Dividing element	61216993538 Dividing element	-	1	Enquire
18	7119904459	Hex Bolt with washer	7119904459 Hex Bolt with washer M6X12-U2-8.8	-	1	Enquire
