Name: Levelling device tubing attaching parts
Rating: 4.1 (1 reviews)

Levelling device tubing attaching parts of Rolls Royce Rolls Royce Phantom RR11(2017-2023)

View All

Rolls Royce Phantom RR11(2017-2023) - Levelling device tubing attaching parts

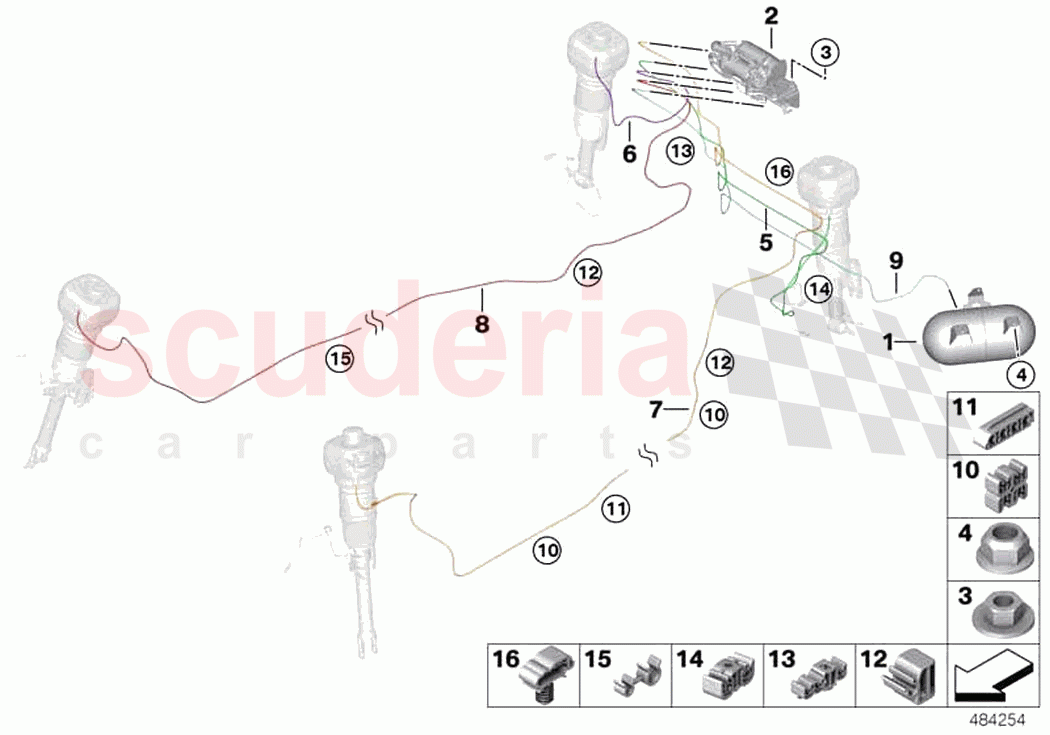

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	37206872020	Pressure accumulator	$750.94	To Order

Photo	Part No	Description	Price (each)	Stock
	37206887905	RP air supply system	Enquire	To Order
	37205A1ACB0	RP air supply system	$1,299.45	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905374	Self-locking collar nut	$1.22	To Order

Photo	Part No	Description	Price (each)	Stock
	7147311066	Hex nut with plate	$2.28	To Order

Photo	Part No	Description	Price (each)	Stock
	37206872017	Air pipe, rear left	$56.06	To Order

Photo	Part No	Description	Price (each)	Stock
	37206872018	Air pipe, rear right	$55.54	To Order

Photo	Part No	Description	Price (each)	Stock
	37206872015	Air pipe, front left	$165.45	To Order
	37206877377	Air pipe, front left	$165.45	To Order

Photo	Part No	Description	Price (each)	Stock
	37206872016	Air pipe, front right	$165.45	To Order
	37206877378	Air pipe, front right	$162.25	To Order

Photo	Part No	Description	Price (each)	Stock
	37206872014	Air intake tube	$21.76	To Order

Photo	Part No	Description	Price (each)	Stock
	37226776050	Pipe clip	$2.43	To Order

Photo	Part No	Description	Price (each)	Stock
	34326777692	Spacer, 4-part	$0.82	To Order

Photo	Part No	Description	Price (each)	Stock
	37206875836	Line clip, single	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	37206870527	Line clip, triple	$2.51	To Order

Photo	Part No	Description	Price (each)	Stock
	34306858578	Line clip, double	$2.03	To Order

Photo	Part No	Description	Price (each)	Stock
	34322333077	Hose clamp, double	$3.51	To Order

Photo	Part No	Description	Price (each)	Stock
	34521164653	Tubing support	$0.65	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	37206872020	Pressure accumulator	37206872020 Pressure accumulator 2LITER	$750.94	1
02	37206887905	RP air supply system	37206887905 RP air supply system 2LITER; from 04.2020	-	1	Enquire
02	37205A1ACB0	RP air supply system	37205A1ACB0 RP air supply system 2LITER	$1,299.45	1
03	7119905374	Self-locking collar nut	7119905374 Self-locking collar nut M8-10 ZNS3	$1.22	4
04	7147311066	Hex nut with plate	7147311066 Hex nut with plate M6	$2.28	3
05	37206872017	Air pipe, rear left	37206872017 Air pipe, rear left SCHWARZ	$56.06	1
06	37206872018	Air pipe, rear right	37206872018 Air pipe, rear right SCHWARZ	$55.54	1
07	37206872015	Air pipe, front left	37206872015 Air pipe, front left SCHWARZ	$165.45	1
07	37206877377	Air pipe, front left	37206877377 Air pipe, front left SCHWARZ	$165.45	1
08	37206872016	Air pipe, front right	37206872016 Air pipe, front right SCHWARZ	$165.45	1
08	37206877378	Air pipe, front right	37206877378 Air pipe, front right SCHWARZ	$162.25	1
09	37206872014	Air intake tube	37206872014 Air intake tube SCHWARZ	$21.76	1
10	37226776050	Pipe clip	37226776050 Pipe clip	$2.43	2
11	34326777692	Spacer, 4-part	34326777692 Spacer, 4-part	$0.82	2
12	37206875836	Line clip, single	37206875836 Line clip, single	$1.97	13
13	37206870527	Line clip, triple	37206870527 Line clip, triple	$2.51	4
14	34306858578	Line clip, double	34306858578 Line clip, double	$2.03	3
15	34322333077	Hose clamp, double	34322333077 Hose clamp, double	$3.51	1
16	34521164653	Tubing support IN STOCK	34521164653 Tubing support IN STOCK	$0.65	4

Levelling Device Tubing Attaching Parts

Rolls Royce Phantom RR11(2017-2023)

Rolls Royce Phantom RR11(2017-2023) - Levelling device tubing attaching parts
