Frnt axle support wishbone tension strut of Rolls Royce Rolls Royce Phantom RR11(2017-2023)

View All

Rolls Royce Phantom RR11(2017-2023) - Frnt axle support wishbone tension strut

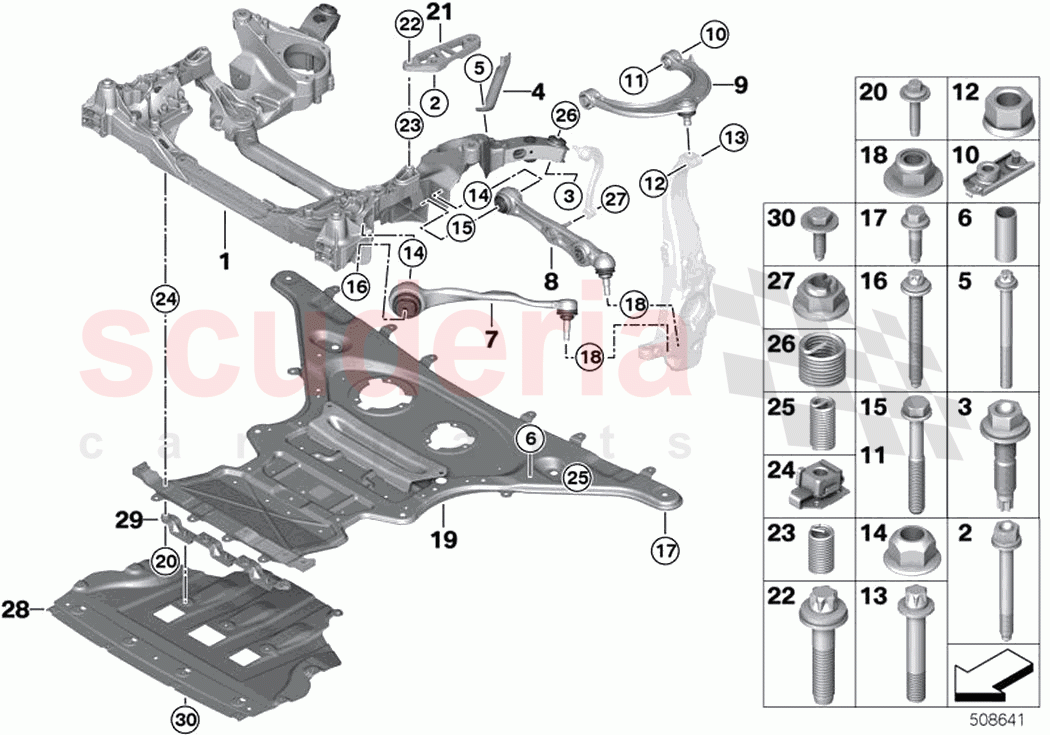

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	31106871405	Front axle support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31106876339	Hexagon screw with flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31106872063	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31106872115	Strut, engine mount, left	Enquire	To Order
	31106872116	Strut, engine mount, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119909300	Screw with flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129907856	Threaded spindle M12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31106888079	LEFT tension strut WITH RUBBER MOUNTING	Enquire	To Order
	31106888080	Right tension strut with rubber mounting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31106871829	Wishbone, bottom, with rubber mount left	Enquire	To Order
	31106893396	Wishbone, bottom,with rubber mount right	Enquire	To Order
	31106893395	Wishbone, bottom, with rubber mount left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	31106883553	Control arm, camber correction, top left	Enquire	To Order
	31108845761	Wishbone, upper left	Enquire	To Order
	31106883554	Control arm, camber correction,top right	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	31106875903	Cage nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119909323	Hex Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31106765451	Combination nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31106789333	Torx screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33306760349	Self-locking collar nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33176760342	Hex Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33316767586	ASA screw with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31106876225	Hexagon screw with flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146875114	Hexagon nut with collar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31106891642	Stiffening plate with cross-member	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31106870648	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31106896469	Reinforcement, left	Enquire	To Order
	31106871416	Reinforcement, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33306797639	ASA screw, self-tapping	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31106868499	Heli-Coil threaded insert	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31106870940	Cage nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31106868376	Heli-Coil threaded insert	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147141730	Threaded plug	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33556790913	Hexagon nut with collar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31146894930	Underride protection, front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31106894931	Holder for underride protection front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119907898	Hex Bolt	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	31106871405	Front axle support	31106871405 Front axle support	-	1	Enquire
02	31106876339	Hexagon screw with flange	31106876339 Hexagon screw with flange M12X1,5X106	-	6	Enquire
03	31106872063	Hex Bolt with washer	31106872063 Hex Bolt with washer M14X54X1.5	-	2	Enquire
04	31106872115	Strut, engine mount, left	31106872115 Strut, engine mount, left	-	1	Enquire
04	31106872116	Strut, engine mount, right	31106872116 Strut, engine mount, right	-	1	Enquire
05	7119909300	Screw with flange	7119909300 Screw with flange AM8X85-U1-10,9	-	4	Enquire
06	7129907856	Threaded spindle M12	7129907856 Threaded spindle M12 M12X1,5X30 A2	-	8	Enquire
07	31106888079	LEFT tension strut WITH RUBBER MOUNTING	31106888079 LEFT tension strut WITH RUBBER MOUNTING	-	1	Enquire
07	31106888080	Right tension strut with rubber mounting	31106888080 Right tension strut with rubber mounting	-	1	Enquire
08	31106871829	Wishbone, bottom, with rubber mount left	31106871829 Wishbone, bottom, with rubber mount left from 02.2021	-	1	Enquire
08	31106893396	Wishbone, bottom,with rubber mount right	31106893396 Wishbone, bottom,with rubber mount right from 02.2021	-	1	Enquire
08	31106893395	Wishbone, bottom, with rubber mount left	31106893395 Wishbone, bottom, with rubber mount left	-	1	Enquire
08	31106893396	Wishbone, bottom,with rubber mount right	31106893396 Wishbone, bottom,with rubber mount right	-	1	Enquire
09	31106883553	Control arm, camber correction, top left	31106883553 Control arm, camber correction, top left +30MIN; from 06.2021	-	1	Enquire
09	31108845761	Wishbone, upper left	31108845761 Wishbone, upper left PLUS	-	1	Enquire
09	31106883554	Control arm, camber correction,top right	31106883554 Control arm, camber correction,top right +30MIN; from 06.2021	-	1	Enquire
09	31108845762	Wishbone, upper right	31108845762 Wishbone, upper right PLUS	-	1	Enquire
09	31108838797	Wishbone with rubber mount top left	31108838797 Wishbone with rubber mount top left from 03.2021	-	1	Enquire
09	31108838797	Wishbone with rubber mount top left	31108838797 Wishbone with rubber mount top left	-	1	Enquire
09	31106878256	Wishbone with rubber mount top right	31106878256 Wishbone with rubber mount top right from 03.2021	-	1	Enquire
09	31108838798	Wishbone with rubber mount top right	31108838798 Wishbone with rubber mount top right	-	1	Enquire
09	31106883555	Control arm, camber correction, top left	31106883555 Control arm, camber correction, top left -30MIN; from 06.2021	-	1	Enquire
09	31108845763	Wishbone, upper left	31108845763 Wishbone, upper left MINUS	-	1	Enquire
09	31106883556	Control arm, camber correction,top right	31106883556 Control arm, camber correction,top right -30MIN; from 06.2021	-	1	Enquire
09	31108845764	Wishbone, upper right	31108845764 Wishbone, upper right MINUS	-	1	Enquire
10	31106875903	Cage nut	31106875903 Cage nut M10-10 ZNS3	-	4	Enquire
11	7119909323	Hex Bolt	7119909323 Hex Bolt M10X90 TC 10,9	-	4	Enquire
12	31106765451	Combination nut	31106765451 Combination nut M10-22H ZNS3	-	2	Enquire
13	31106789333	Torx screw	31106789333 Torx screw M10X59-10.9 ZNS	-	2	Enquire
14	33306760349	Self-locking collar nut	33306760349 Self-locking collar nut M14X1,5-10 ZNS3	-	2	Enquire
15	33176760342	Hex Bolt	33176760342 Hex Bolt M14X1,5X110	-	2	Enquire
16	33316767586	ASA screw with washer	33316767586 ASA screw with washer M14X127-10.9	-	2	Enquire
17	31106876225	Hexagon screw with flange	31106876225 Hexagon screw with flange M12X1,5X45-10.9	-	4	Enquire
18	7146875114	Hexagon nut with collar	7146875114 Hexagon nut with collar M16X1.5 ZNNIV	-	4	Enquire
19	31106891642	Stiffening plate with cross-member	31106891642 Stiffening plate with cross-member	-	1	Enquire
20	31106870648	Hex Bolt with washer	31106870648 Hex Bolt with washer M8X40	-	16	Enquire
21	31106896469	Reinforcement, left	31106896469 Reinforcement, left	-	1	Enquire
21	31106871416	Reinforcement, right	31106871416 Reinforcement, right	-	1	Enquire
22	33306797639	ASA screw, self-tapping	33306797639 ASA screw, self-tapping M12X60-10.9ZNS3	-	2	Enquire
23	31106868499	Heli-Coil threaded insert	31106868499 Heli-Coil threaded insert M12X30-A2	-	2	Enquire
24	31106870940	Cage nut	31106870940 Cage nut	-	4	Enquire
25	31106868376	Heli-Coil threaded insert	31106868376 Heli-Coil threaded insert M8X20-A2	-	16	Enquire
26	7147141730	Threaded plug	7147141730 Threaded plug M14X1,5X14	-	2	Enquire
27	33556790913	Hexagon nut with collar	33556790913 Hexagon nut with collar M10-10 ZNS3	-	2	Enquire
28	31146894930	Underride protection, front	31146894930 Underride protection, front to 08.2020	-	1	Enquire
29	31106894931	Holder for underride protection front	31106894931 Holder for underride protection front to 08.2020	-	1	Enquire
30	7119907898	Hex Bolt	7119907898 Hex Bolt M6X20-8.8; to 08.2020	-	3	Enquire
