Name: Exhaust system rear
Rating: 4.7 (1 reviews)

View All

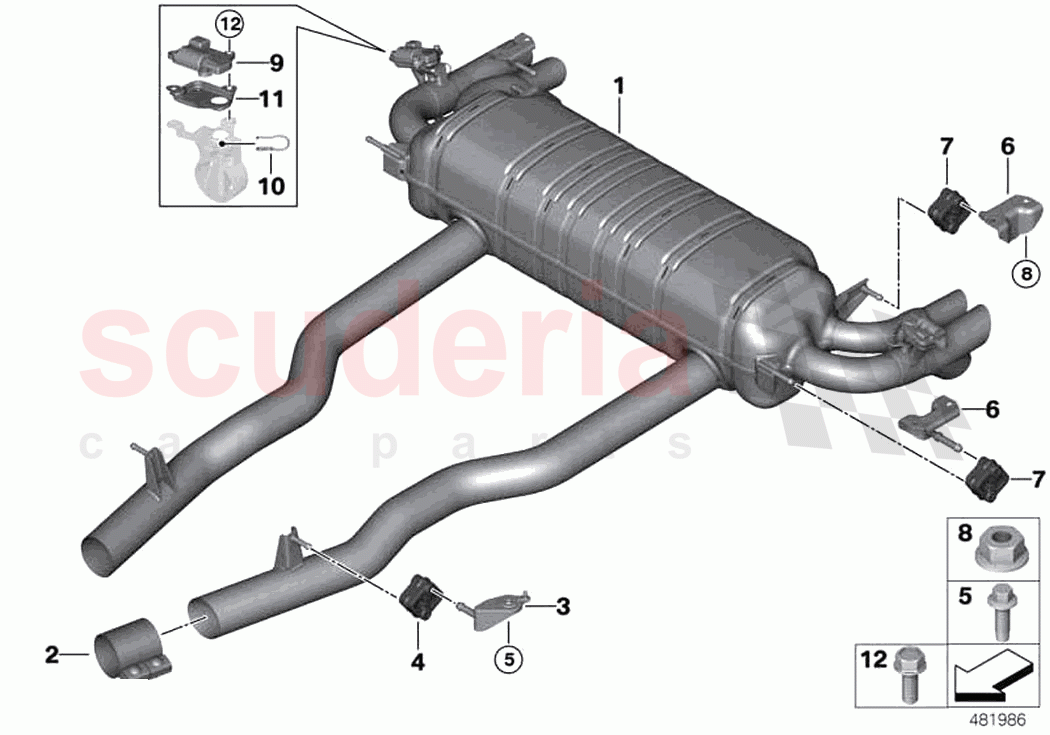

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	18308681516	Rear silencer with exhaust flap	$4,837.67	To Order
	18308681517	Rear silencer with exhaust flap	$4,837.67	To Order

Photo	Part No	Description	Price (each)	Stock
	18307560815	Clamping bush	$63.41	To Order

Photo	Part No	Description	Price (each)	Stock
	18308582062	REAR SILENCER BRACKET, front	$35.38	To Order
	18308582063	Bracket for rear silencer, left	$35.38	To Order

Photo	Part No	Description	Price (each)	Stock
	18307616850	Rubber mounting	$12.87	To Order

Photo	Part No	Description	Price (each)	Stock
	18309909376	Hex Bolt	$3.02	To Order

Photo	Part No	Description	Price (each)	Stock
	18308681512	REAR SILENCER BRACKET, rear	$99.65	To Order

Photo	Part No	Description	Price (each)	Stock
	18308631988	Rubber mounting	$26.44	To Order

Photo	Part No	Description	Price (each)	Stock
	7119906089	Collar nut	$1.23	To Order

Photo	Part No	Description	Price (each)	Stock
	18308623424	Actuator drive, exhaust flap	$130.00	To Order

Photo	Part No	Description	Price (each)	Stock
	18307620323	Fixing bow	$11.04	To Order

Photo	Part No	Description	Price (each)	Stock
	18307628041	Thermal protection	$41.33	To Order

Photo	Part No	Description	Price (each)	Stock
	18308623584	Hex Bolt	$3.40	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
01	18308681516	Rear silencer with exhaust flap	18308681516 Rear silencer with exhaust flap	$4,837.67	1
01	18308681517	Rear silencer with exhaust flap	18308681517 Rear silencer with exhaust flap	$4,837.67	1
02	18307560815	Clamping bush	18307560815 Clamping bush D=80MM	$63.41	2
03	18308582062	REAR SILENCER BRACKET, front	18308582062 REAR SILENCER BRACKET, front	$35.38	1
03	18308582063	Bracket for rear silencer, left	18308582063 Bracket for rear silencer, left	$35.38	1
04	18307616850	Rubber mounting	18307616850 Rubber mounting	$12.87	2
05	18309909376	Hex Bolt	18309909376 Hex Bolt M8X25	$3.02	2
06	18308681512	REAR SILENCER BRACKET, rear	18308681512 REAR SILENCER BRACKET, rear	$99.65	4
07	18308631988	Rubber mounting	18308631988 Rubber mounting	$26.44	4
08	7119906089	Collar nut	7119906089 Collar nut M8-8-SC-ZNNIV	$1.23	8
09	18308623424	Actuator drive, exhaust flap	18308623424 Actuator drive, exhaust flap	$130.00	2
10	18307620323	Fixing bow	18307620323 Fixing bow	$11.04	2
11	18307628041	Thermal protection	18307628041 Thermal protection	$41.33	2
12	18308623584	Hex Bolt	18308623584 Hex Bolt M6X16	$3.40	6

Exhaust System Rear

Rolls Royce Phantom RR11(2017-2023)
