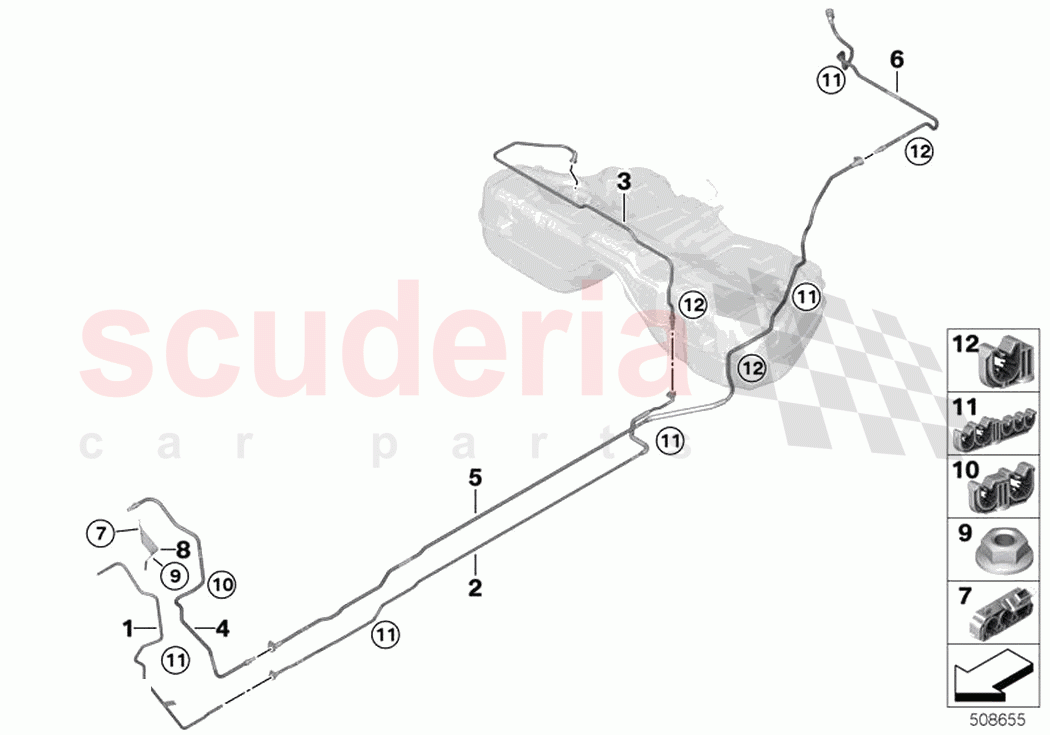

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	16127415285	Fuel feed line front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16127415286	Fuel feed line rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16127415293	Scavenge air line	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16127415295	Scavenging line rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16127385405	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16117415279	Tubing support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34506859776	Hex nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147441119	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147441123	Clip	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	16127415285	Fuel feed line front	16127415285 Fuel feed line front	-	1	Enquire
02	16127415287	Fuel feed line	16127415287 Fuel feed line	-	1	Enquire
02	16127415290	Fuel feed line	16127415290 Fuel feed line	-	1	Enquire
03	16127415286	Fuel feed line rear	16127415286 Fuel feed line rear	-	1	Enquire
04	16127415292	Scavenging line front	16127415292 Scavenging line front from 08.2020	-	1	Enquire
04	16125A20A10	Scavenging line front	16125A20A10 Scavenging line front to 08.2020	-	1	Enquire
05	16127415293	Scavenge air line	16127415293 Scavenge air line	-	1	Enquire
06	16127415295	Scavenging line rear	16127415295 Scavenging line rear	-	1	Enquire
07	16127385405	Clip	16127385405 Clip D12 D12/D10 D10	-	1	Enquire
08	16117415279	Tubing support	16117415279 Tubing support	-	1	Enquire
09	34506859776	Hex nut	34506859776 Hex nut M6-8-SC-ZNNIV S	-	1	Enquire
10	7147441116	Clip	7147441116 Clip D8/10 D10/12; from 02.2021	-	1	Enquire
10	7145A154B0	Clip	7145A154B0 Clip D10 D12	-	1	Enquire
11	7147441119	Clip	7147441119 Clip 2XD5 D4 D10/12	-	14	Enquire
12	7147441123	Clip	7147441123 Clip D10/12	-	5	Enquire
