Name: Front door hinge door brake
Rating: 5.0 (1 reviews)

Front door hinge door brake of Rolls Royce Rolls Royce Ghost Extended RR22(2019-2023)

View All

Rolls Royce Ghost Extended RR22(2019-2023) - Front door hinge door brake (1)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51719852749	Door front left	$5,952.60	To Order
	51719852750	Door, front, right	$5,952.60	To Order

Photo	Part No	Description	Price (each)	Stock
	41517420089	Door hinge, bottom left	$62.73	To Order
	41517420090	Door hinge, bottom right	$62.73	To Order

Photo	Part No	Description	Price (each)	Stock
	41517420093	Door hinge, top left	$62.73	To Order
	41517420094	Door hinge, top right	$62.73	To Order

Photo	Part No	Description	Price (each)	Stock
	7146979757	Hex Bolt	$22.45	To Order

Photo	Part No	Description	Price (each)	Stock
	7147261771	Torx-countersunk screw	$2.68	To Order

Photo	Part No	Description	Price (each)	Stock
	7147284478	Hexagon screw with flange	$3.25	To Order

Photo	Part No	Description	Price (each)	Stock
	51218499269	Front door brake	$148.13	To Order
	51218496739	Front door brake	$404.23	To Order

Photo	Part No	Description	Price (each)	Stock
	51225A03CD1	Dust grommet door brake front left	$17.91	To Order
	51225A03CD2	Dust grommet door brake front right	$17.91	To Order
	51225A03CC7	Dust grommet door brake front left	$17.68	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51219447565	Bodyshell grommet door front left	$36.28	To Order
	51219447566	Bodyshell grommet door front right	$36.28	To Order

Photo	Part No	Description	Price (each)	Stock
	51219447561	Grommet, door stop, front left	$52.28	To Order
	51219447562	Grommet, door stop, front right	$52.28	To Order

Photo	Part No	Description	Price (each)	Stock
	51217493599	Crashpad, door, front left	$210.36	To Order
	51217493600	Crashpad, door, front right	$210.36	To Order

Photo	Part No	Description	Price (each)	Stock
	7129909275	Hex nut	$1.14	To Order

Photo	Part No	Description	Price (each)	Stock
	7147248303	Torx-bolt with washer	$1.97	To Order

View All

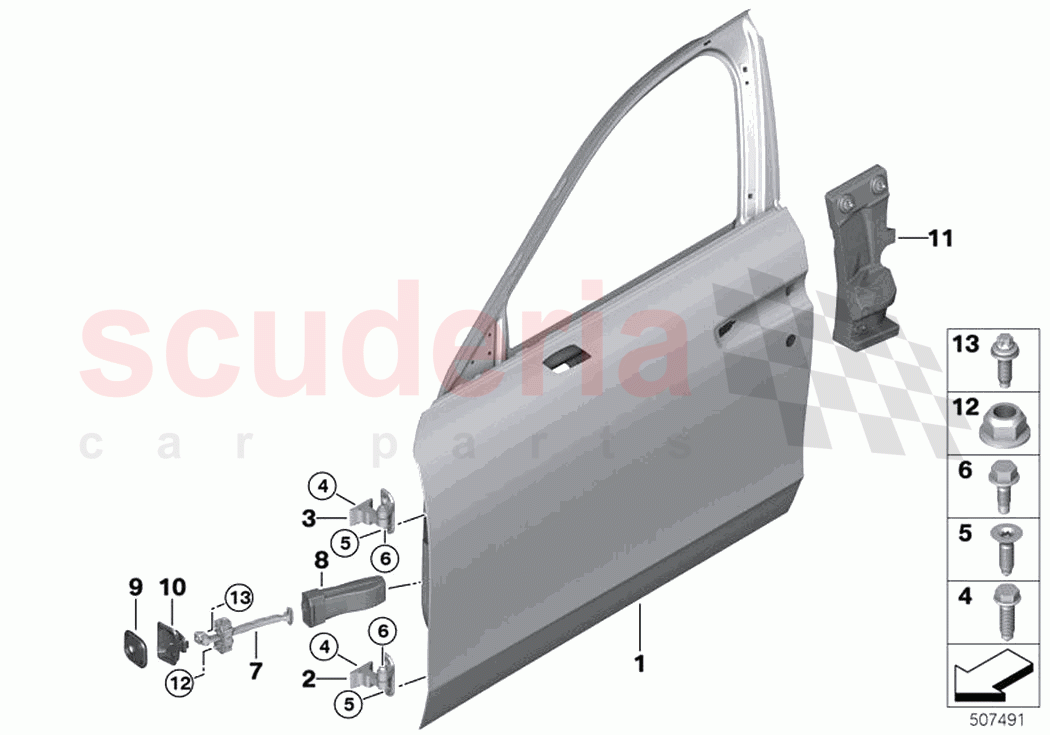

Diagram Tap to enlarge

Front Door Hinge Door Brake

Rolls Royce Ghost Extended RR22(2019-2023)

Illustration Number: 1

Rolls Royce Ghost Extended RR22(2019-2023) - Front door hinge door brake (1)

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	51719852749	Door front left	51719852749 Door front left	$5,952.60	1
1	51719852750	Door, front, right	51719852750 Door, front, right	$5,952.60	1
2	41517420089	Door hinge, bottom left	41517420089 Door hinge, bottom left	$62.73	1
2	41517420090	Door hinge, bottom right	41517420090 Door hinge, bottom right	$62.73	1
3	41517420093	Door hinge, top left	41517420093 Door hinge, top left	$62.73	1
3	41517420094	Door hinge, top right	41517420094 Door hinge, top right	$62.73	1
4	7146979757	Hex Bolt	7146979757 Hex Bolt M12X48	$22.45	2
5	7147261771	Torx-countersunk screw	7147261771 Torx-countersunk screw ISA M8X29.5	$2.68	4
6	7147284478	Hexagon screw with flange	7147284478 Hexagon screw with flange M8X24	$3.25	4
7	51218499269	Front door brake	51218499269 Front door brake to 12.2020	$148.13	2
7	51218496739	Front door brake	51218496739 Front door brake from 12.2020	$404.23	2
8	51225A03CD1	Dust grommet door brake front left	51225A03CD1 Dust grommet door brake front left to 12.2020	$17.91	1
8	51225A03CD2	Dust grommet door brake front right	51225A03CD2 Dust grommet door brake front right to 12.2020	$17.91	1
8	51225A03CC7	Dust grommet door brake front left	51225A03CC7 Dust grommet door brake front left from 12.2020	$17.68	1
8	51225A03CC8	Dust grommet door brake front right	51225A03CC8 Dust grommet door brake front right from 12.2020	$17.68	1
9	51219447565	Bodyshell grommet door front left	51219447565 Bodyshell grommet door front left	$36.28	1
9	51219447566	Bodyshell grommet door front right	51219447566 Bodyshell grommet door front right	$36.28	1
10	51219447561	Grommet, door stop, front left	51219447561 Grommet, door stop, front left	$52.28	1
10	51219447562	Grommet, door stop, front right	51219447562 Grommet, door stop, front right	$52.28	1
11	51217493599	Crashpad, door, front left	51217493599 Crashpad, door, front left	$210.36	1
11	51217493600	Crashpad, door, front right	51217493600 Crashpad, door, front right	$210.36	1
12	7129909275	Hex nut	7129909275 Hex nut M6	$1.14	4
13	7147248303	Torx-bolt with washer	7147248303 Torx-bolt with washer ASA M8X22	$1.97	2
