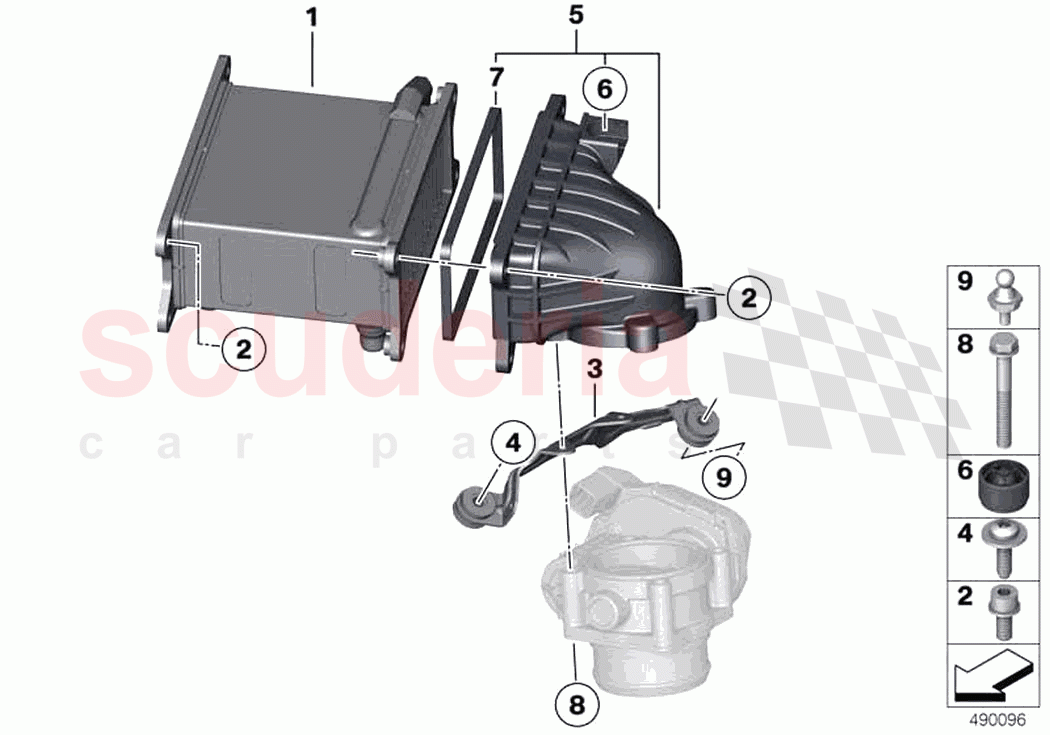

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	17117594307	ISA screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13717588501	Rubber buffer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11617561009	Profile-gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904526	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149362188	Ball pin	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	17518695450	Bracket, charge-air cooler	17518695450 Bracket, charge-air cooler CYL.7-12	-	-	Enquire
1	17517566391	Charge-air cooler	17517566391 Charge-air cooler 7-12	-	1	Enquire
1	17517566392	Charge-air cooler	17517566392 Charge-air cooler 1-6	-	1	Enquire
1	17519470130	Charge-air cooler	17519470130 Charge-air cooler CYL. 1-6	-	1	Enquire
1	17519480566	Charge-air cooler	17519480566 Charge-air cooler CYL. 7-12	-	1	Enquire
2	7119905182	Fillister head screw	7119905182 Fillister head screw M6X22	-	16	Enquire
2	11617574307	Oval head screw with O-ring	11617574307 Oval head screw with O-ring M6X25	-	12	Enquire
3	17519796608	Bracket, charge-air cooler	17519796608 Bracket, charge-air cooler CYL.7-12	-	1	Enquire
3	17518695449	Bracket, charge-air cooler	17518695449 Bracket, charge-air cooler CYL.1-6	-	1	Enquire
4	17117594307	ISA screw	17117594307 ISA screw M6X27	-	2	Enquire
5	17517578864	Air channel	17517578864 Air channel 1-6	-	1	Enquire
5	17518647964	Air channel	17518647964 Air channel 7-12	-	1	Enquire
6	13717588501	Rubber buffer	13717588501 Rubber buffer	-	2	Enquire
7	11617561009	Profile-gasket	11617561009 Profile-gasket	-	2	Enquire
8	7119904526	Hex Bolt with washer	7119904526 Hex Bolt with washer M6X55-Z1	-	8	Enquire
9	7149362188	Ball pin	7149362188 Ball pin	-	2	Enquire
