Name: Cylinder head attached parts
Rating: 4.1 (1 reviews)

Cylinder head attached parts of Rolls Royce Rolls Royce Ghost Extended RR22(2019-2023)

View All

Rolls Royce Ghost Extended RR22(2019-2023) - Cylinder head attached parts (1)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11148699005	Timing case cover, top	$211.69	To Order

Photo	Part No	Description	Price (each)	Stock
	11148699008	Timing case cover, top	$211.69	To Order

Photo	Part No	Description	Price (each)	Stock
	11147578949	Gasket Steel	$20.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11121715657	Dowel	$2.28	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11519908732	Hexalobular socket screw	$2.57	To Order

Photo	Part No	Description	Price (each)	Stock
	7119907838	Hexalobular socket screw	$1.49	To Order

Photo	Part No	Description	Price (each)	Stock
	11147584157	Stud bolt	$14.46	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905516	Torx-bolt with washer	$2.97	To Order

Photo	Part No	Description	Price (each)	Stock
	7119908750	Hexalobular socket screw	$2.12	To Order

Photo	Part No	Description	Price (each)	Stock
	11127564891	Non-return valve	$30.39	To Order

Photo	Part No	Description	Price (each)	Stock
	11127584362	Shackle	$20.60	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905769	ISA screw	$2.93	To Order

Photo	Part No	Description	Price (each)	Stock
	11127584361	Shackle	$15.74	To Order

Photo	Part No	Description	Price (each)	Stock
	13627636937	Ping Sensor	$62.59	To Order

Photo	Part No	Description	Price (each)	Stock
	7119907464	ASA-Bolt	$1.69	To Order

Photo	Part No	Description	Price (each)	Stock
	7129903036	Stud bolt	$4.25	To Order

Photo	Part No	Description	Price (each)	Stock
	11128680222	Stud bolt self-locking	$4.56	To Order

Photo	Part No	Description	Price (each)	Stock
	11127570995	ISA screw	$1.96	To Order

Photo	Part No	Description	Price (each)	Stock
	11368605123	Solenoid valve (SOLV)	$231.72	To Order

Photo	Part No	Description	Price (each)	Stock
	11367548459	Set of gaskets	$8.98	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904524	Hex Bolt with washer	$1.48	IN STOCK

View All

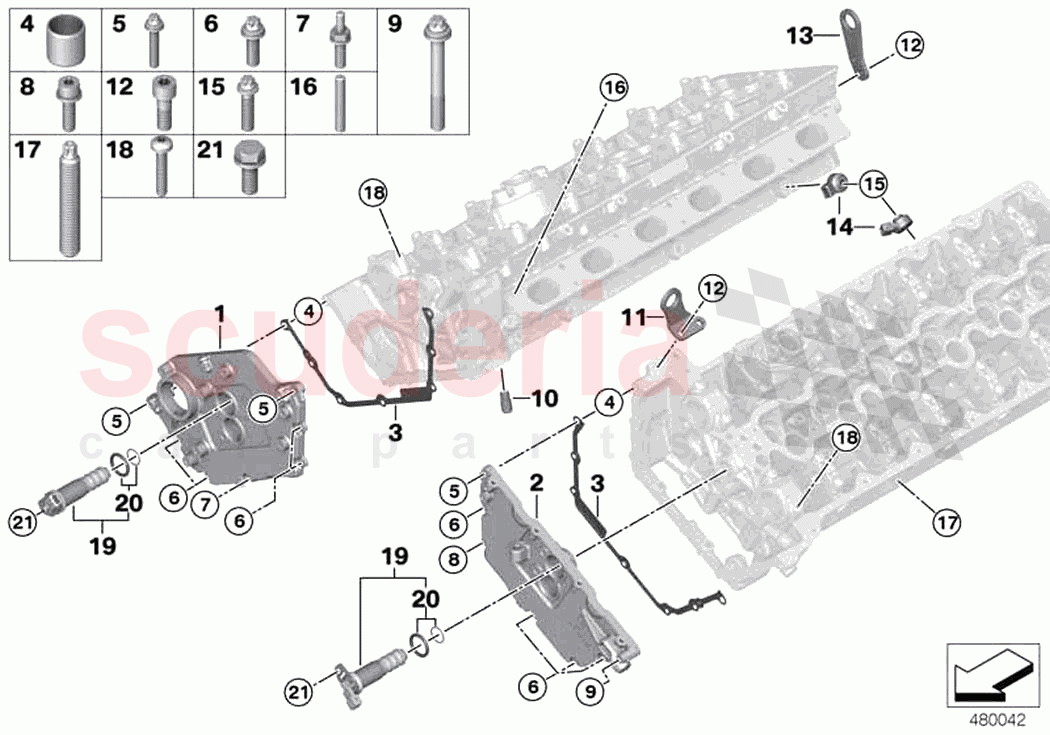

Diagram Tap to enlarge

Cylinder Head Attached Parts

Rolls Royce Ghost Extended RR22(2019-2023)

Illustration Number: 1

Rolls Royce Ghost Extended RR22(2019-2023) - Cylinder head attached parts (1)

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	83190404517	Liquid sealant, Loctite 5970	83190404517 Liquid sealant, Loctite 5970 50ML	$25.81	1
1	11148699005	Timing case cover, top	11148699005 Timing case cover, top ZYL. 1-6	$211.69	1
2	11148699008	Timing case cover, top	11148699008 Timing case cover, top ZYL. 7-12	$211.69	1
3	11147578949	Gasket Steel IN STOCK	11147578949 Gasket Steel IN STOCK	$20.74	2
4	11121715657	Dowel IN STOCK	11121715657 Dowel D=8,3MM IN STOCK	$2.28	16
5	11519908732	Hexalobular socket screw	11519908732 Hexalobular socket screw M6X30	$2.57	3
6	7119907838	Hexalobular socket screw	7119907838 Hexalobular socket screw BM6X20-U1-8.8	$1.49	8
7	11147584157	Stud bolt	11147584157 Stud bolt M6/M5	$14.46	1
8	7129905516	Torx-bolt with washer	7129905516 Torx-bolt with washer M6X20-U1-8.8	$2.97	1
9	7119908750	Hexalobular socket screw	7119908750 Hexalobular socket screw	$2.12	1
10	11127564891	Non-return valve	11127564891 Non-return valve M14X1,5	$30.39	2
11	11127584362	Shackle	11127584362 Shackle	$20.60	1
12	7129905769	ISA screw	7129905769 ISA screw M8X22-ZNNIV SI	$2.93	4
13	11127584361	Shackle	11127584361 Shackle	$15.74	1
14	13627636937	Ping Sensor	13627636937 Ping Sensor	$62.59	6
15	7119907464	ASA-Bolt	7119907464 ASA-Bolt BM8X30-8.8-ZNS3	$1.69	6
16	7129903036	Stud bolt	7129903036 Stud bolt M7X45-ZNNIV SI	$4.25	14
17	11128680222	Stud bolt self-locking	11128680222 Stud bolt self-locking M8X50-10.9	$4.56	22
18	11127570995	ISA screw	11127570995 ISA screw M7X45-8.8	$1.96	60
19	11368605123	Solenoid valve (SOLV)	11368605123 Solenoid valve (SOLV)	$231.72	4
20	11367548459	Set of gaskets	11367548459 Set of gaskets	$8.98	4
21	7119904524	Hex Bolt with washer IN STOCK	7119904524 Hex Bolt with washer M6X16-U1-8.8 IN STOCK	$1.48	4
