Flexible Discs Centre Mount Insert Nut

Rolls Royce Ghost RR4(2017-2019)

Illustration Number: 1

Find Your Part

Rolls Royce Ghost RR4(2017-2019) - Flexible discs centre mount insert nut (1)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
26117514207 Universal joint Enquire To Order
Photo Part No Description Price (each) Stock
26117526611 Centering sleeve Enquire To Order
Photo Part No Description Price (each) Stock
26117527475 Hex Bolt Enquire To Order
Photo Part No Description Price (each) Stock
33326760368 Hexagon nut with collar Enquire To Order
Photo Part No Description Price (each) Stock
26117527617 Damper ring Enquire To Order
26117581110 Damper ring Enquire To Order
Photo Part No Description Price (each) Stock
26117526628 Rubber boot, centre bearing Enquire To Order
Photo Part No Description Price (each) Stock
26128624826 Centre Mount, aluminium Enquire To Order
26127577054 Centre mount, propeller shaft Enquire To Order
26127621278 Centre Mount, aluminium Enquire To Order
Photo Part No Description Price (each) Stock
26121225002 Grooved ball bearing Enquire To Order
Photo Part No Description Price (each) Stock
26127521853 Hex Bolt with washer Enquire To Order
Photo Part No Description Price (each) Stock
26117526806 Centering sleeve hard Enquire To Order
26117562574 Centering sleeve hard Enquire To Order
Photo Part No Description Price (each) Stock
26118607971 Torx screw Enquire To Order
Photo Part No Description Price (each) Stock
33127607158 Repair kit insert nut Enquire To Order
Photo Part No Description Price (each) Stock
83190447919 Lubricating mat.Optitemp 2 LN 584 LO Enquire To Order
View All

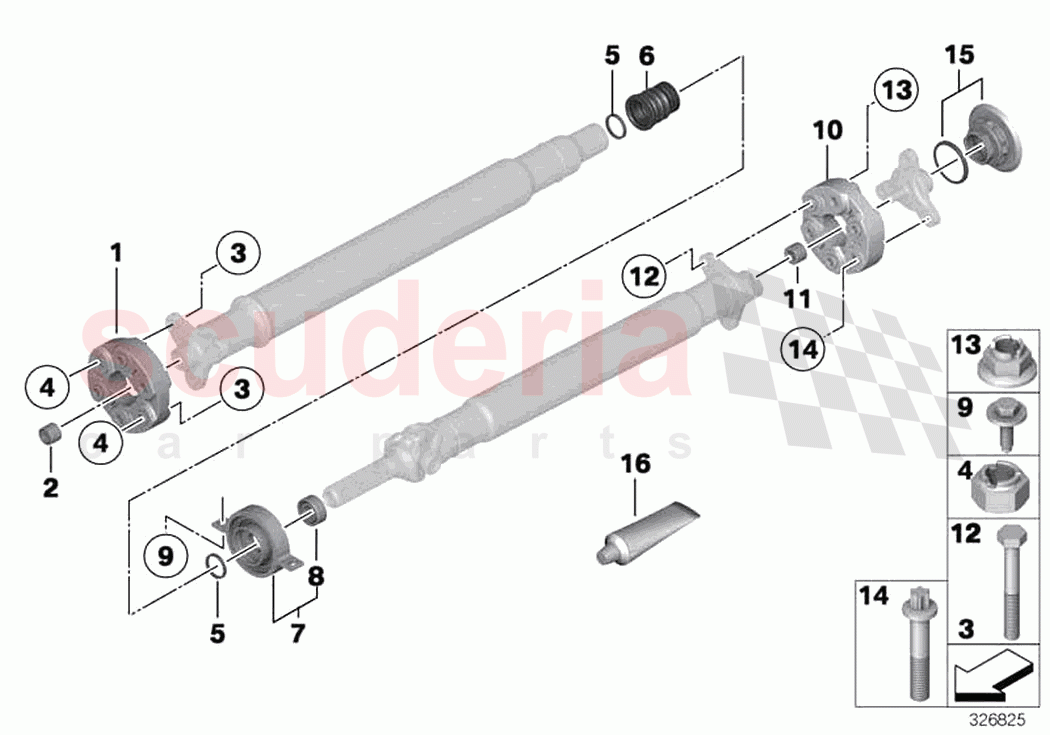

Flexible discs centre mount insert nut of Rolls Royce Rolls Royce Ghost RR4(2017-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 26117514207
Universal joint
LK=110MM 		- 1 Enquire
2 26117526611
Centering sleeve 		- 1 Enquire
3 26117527475
Hex Bolt
M12X1,5X71-ZNS3 		- 3 Enquire
4 33326760368
Hexagon nut with collar
M12X1,5-10 ZNS3 		- 3 Enquire
5 26117527617
Damper ring
D=39/D=35; from 11.2009 		- 2 Enquire
5 26117581110
Damper ring
D=38/D=33; to 11.2009 		- 2 Enquire
6 26117526628
Rubber boot, centre bearing 		- 1 Enquire
7 26128624826
Centre Mount, aluminium 		- 1 Enquire
7 26127577054
Centre mount, propeller shaft
from 08.2016 		- 1 Enquire
7 26127621278
Centre Mount, aluminium
to 12.2012 		- 1 Enquire
8 26121225002
Grooved ball bearing
D=55/D=35 		- 1 Enquire
9 26127521853
Hex Bolt with washer
M8X24-8.8-ZNS3 		- 2 Enquire
11 26117526806
Centering sleeve hard
from 04.2010 		- 1 Enquire
11 26117562574
Centering sleeve hard
to 04.2010 		- 1 Enquire
14 26118607971
Torx screw
M12X1,5X55-ZNS3 		- 3 Enquire
15 33127607158
Repair kit insert nut
M39X1,5X20 		- 1 Enquire
16 83190447919
Lubricating mat.Optitemp 2 LN 584 LO
100G 		- 1 Enquire
