Name: Repair parts optical fibre cable
Rating: 5.0 (1 reviews)

View All

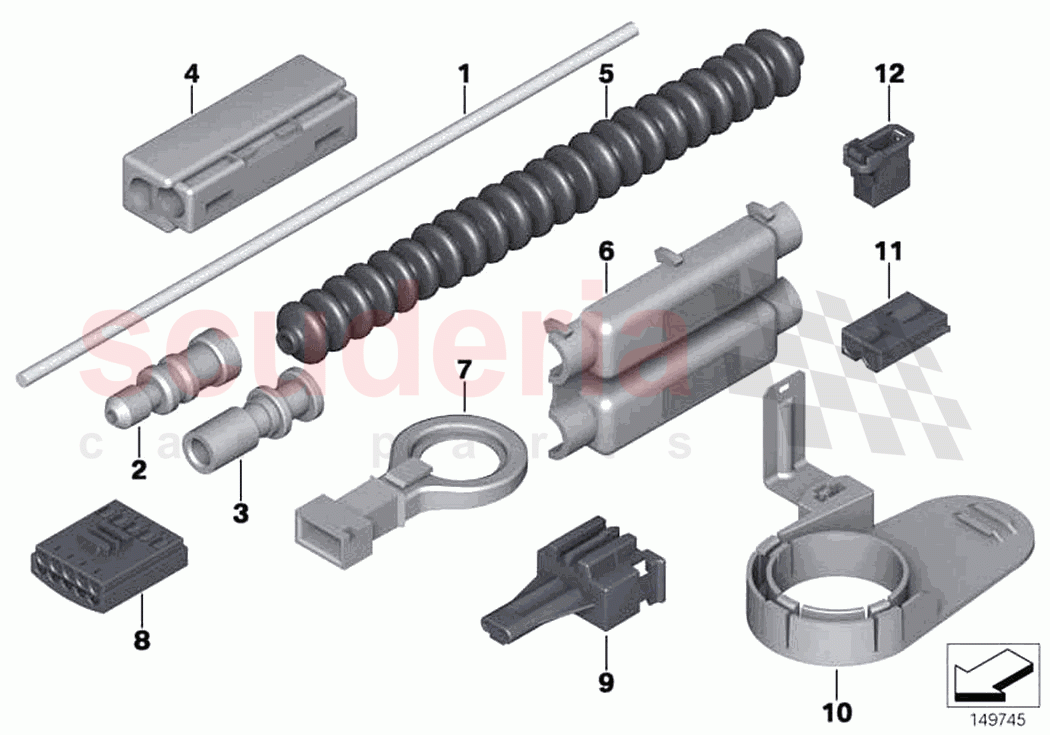

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	61120142318	Optical waveguide	$42.33	To Order

Photo	Part No	Description	Price (each)	Stock
	61136905233	Optical waveguide, pin contact	$5.76	To Order

Photo	Part No	Description	Price (each)	Stock
	61136906554	Optical waveguide, socket contact	$9.90	To Order

Photo	Part No	Description	Price (each)	Stock
	61136906535	Optical waveguide, connector	$5.84	To Order

Photo	Part No	Description	Price (each)	Stock
	61136918242	Metal tube, corrugated	$6.27	To Order

Photo	Part No	Description	Price (each)	Stock
	61136919111	Envelope f optical waveguide	$11.06	To Order

Photo	Part No	Description	Price (each)	Stock
	61136917541	Diagnosis interface MOST	$34.20	To Order

Photo	Part No	Description	Price (each)	Stock
	61136918277	Inline-connector for optical fibre cable	$8.01	To Order

Photo	Part No	Description	Price (each)	Stock
	61136931507	Diagnosis interface MOST	$34.20	To Order

Photo	Part No	Description	Price (each)	Stock
	61136918291	Optical waveguide, deflection pulley	$10.30	To Order

Photo	Part No	Description	Price (each)	Stock
	61138387214	Envelope f optical waveguide	$9.78	To Order

Photo	Part No	Description	Price (each)	Stock
	61136917978	Optical waveguide, connector housing	$2.40	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	61120142318	Optical waveguide	61120142318 Optical waveguide L=7000MM	$42.33	-
2	61136905233	Optical waveguide, pin contact	61136905233 Optical waveguide, pin contact	$5.76	-
3	61136906554	Optical waveguide, socket contact	61136906554 Optical waveguide, socket contact	$9.90	-
4	61136906535	Optical waveguide, connector	61136906535 Optical waveguide, connector	$5.84	-
5	61136918242	Metal tube, corrugated	61136918242 Metal tube, corrugated	$6.27	-
6	61136919111	Envelope f optical waveguide	61136919111 Envelope f optical waveguide	$11.06	-
7	61136917541	Diagnosis interface MOST	61136917541 Diagnosis interface MOST	$34.20	-
8	61136918277	Inline-connector for optical fibre cable	61136918277 Inline-connector for optical fibre cable 5 POL.	$8.01	-
9	61136931507	Diagnosis interface MOST	61136931507 Diagnosis interface MOST	$34.20	-
10	61136918291	Optical waveguide, deflection pulley	61136918291 Optical waveguide, deflection pulley	$10.30	-
11	61138387214	Envelope f optical waveguide	61138387214 Envelope f optical waveguide 2POL. /SCHWARZ	$9.78	-
12	61136917978	Optical waveguide, connector housing	61136917978 Optical waveguide, connector housing	$2.40	-
