Name: Hydro unit DSC control unit fastening
Rating: 4.6 (1 reviews)

View All

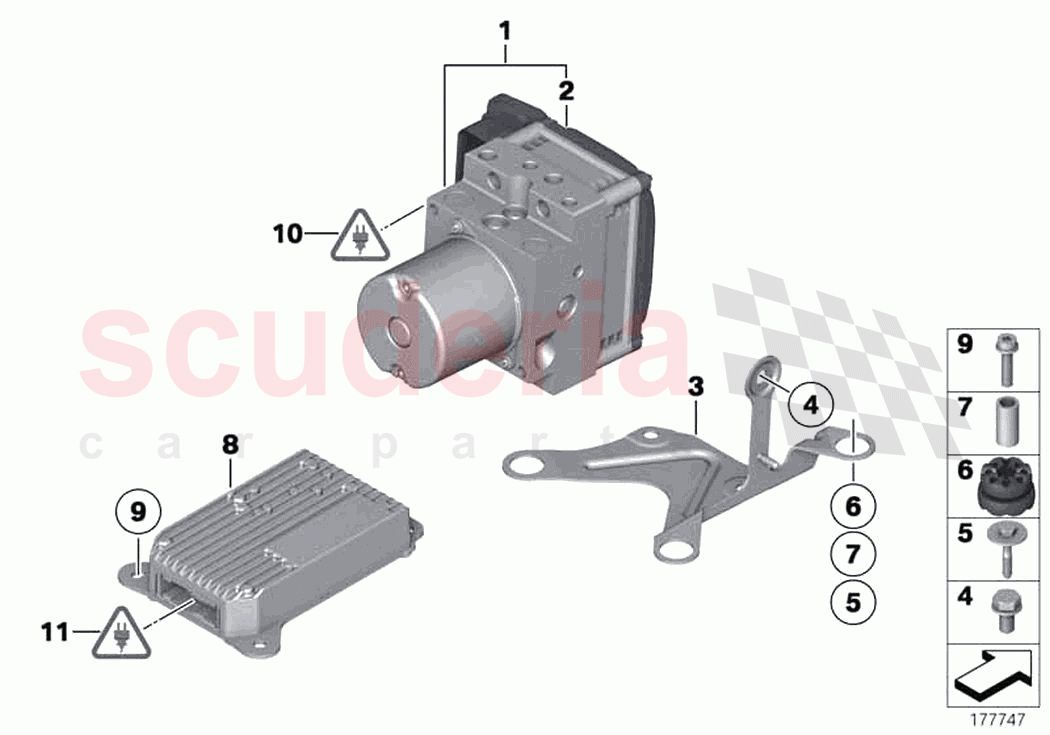

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	34516786873	Bracket hydro unit	$27.98	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905528	Hex Bolt with washer	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	7146971298	Hex Bolt with washer	$1.72	To Order

Photo	Part No	Description	Price (each)	Stock
	34511162818	Rubber mounting	$5.14	To Order

Photo	Part No	Description	Price (each)	Stock
	7146977328	Spacer	$2.43	To Order

Photo	Part No	Description	Price (each)	Stock
	34526855921	ICM control unit	$2,368.24	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905279	ISA screw	$2.89	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	34516850069	DSC hydro unit	34516850069 DSC hydro unit from 07.2012	$4,594.45	1
1	34516850073	Hydro unit DSC	34516850073 Hydro unit DSC from 07.2012	$4,594.45	1
2	34526850071	Repair kit, control unit DSC	34526850071 Repair kit, control unit DSC from 07.2012	$2,630.29	1
2	34526850075	Repair kit, control unit DSC	34526850075 Repair kit, control unit DSC from 07.2012	$2,630.29	1
3	34516786873	Bracket hydro unit	34516786873 Bracket hydro unit from 07.2012	$27.98	1
4	7119905528	Hex Bolt with washer	7119905528 Hex Bolt with washer M8X16; from 07.2012	$1.56	3
5	7146971298	Hex Bolt with washer	7146971298 Hex Bolt with washer M6X35 ZNS3; from 07.2012	$1.72	3
6	34511162818	Rubber mounting	34511162818 Rubber mounting from 07.2012	$5.14	3
7	7146977328	Spacer	7146977328 Spacer ZNS3; from 07.2012	$2.43	3
8	34526855921	ICM control unit	34526855921 ICM control unit from 07.2012	$2,368.24	1
9	7129905279	ISA screw	7129905279 ISA screw M6X25-U1-ZNS3; from 07.2012	$2.89	4
