Levelling device pressure accumulator of Rolls Royce Rolls Royce Ghost RR4(2017-2019)

View All

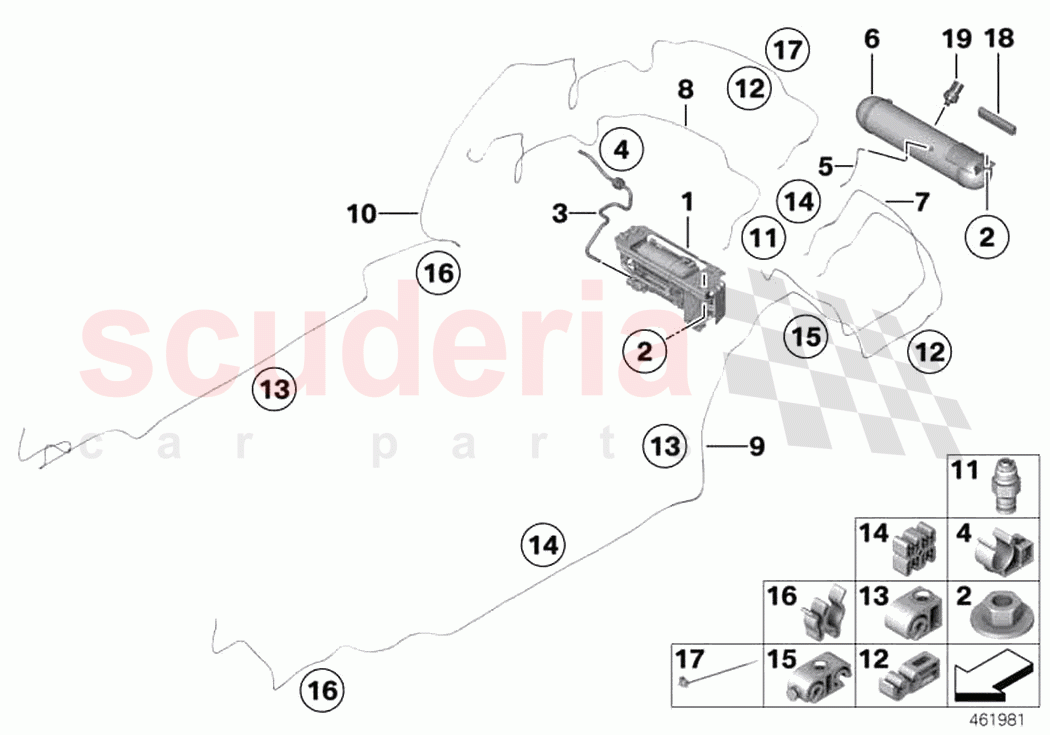

Rolls Royce Ghost RR4(2017-2019) - Levelling device pressure accumulator (1)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

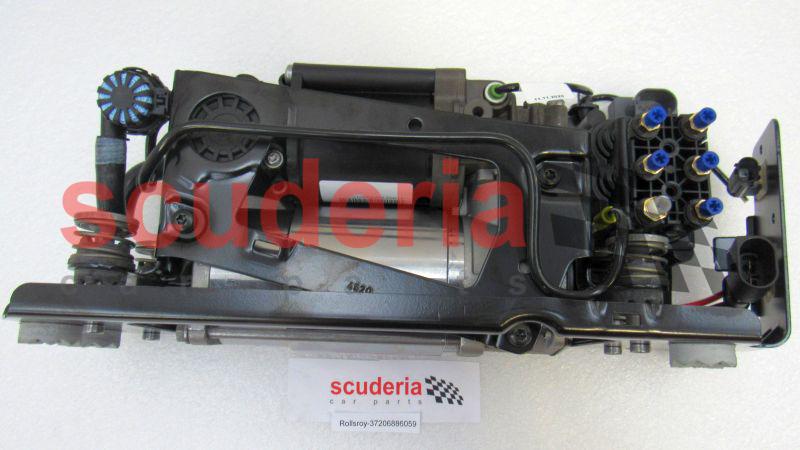

	37206886059	RP air supply system	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905411	Hex nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37206788733	Vent tubing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16131183931	Cable clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37206782229	Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37206782228	Pressure accumulator, air supply system	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37206782233	Pipe, rear left air spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37206782234	Pipe, rear right air spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37206782231	Pipe, front left air spring	Enquire	To Order
	37206795389	Pipe, front left air spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37206782232	Pipe, front right air spring	Enquire	To Order
	37206795382	Pipe, front right air spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37221092403	Screwed connection	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34306784201	Line clip, double	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34326855500	Brake pipe bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37226776050	Pipe clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34326880898	Brake pipe bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34317707371	Tandem clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61138370478	Cable tie	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51721866416	Edge protection	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37146756263	Pressure sensor	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	61366901469	Relay, make contact, black	61366901469 Relay, make contact, black	-	1	Enquire
1	37206886059	RP air supply system	37206886059 RP air supply system	-	1	Enquire
2	7129905411	Hex nut	7129905411 Hex nut BM6-8-ZNNIV SI	-	8	Enquire
3	37206788733	Vent tubing	37206788733 Vent tubing	-	1	Enquire
4	16131183931	Cable clip	16131183931 Cable clip D18	-	1	Enquire
5	37206782229	Pipe	37206782229 Pipe 225MM	-	1	Enquire
6	37206782228	Pressure accumulator, air supply system	37206782228 Pressure accumulator, air supply system	-	1	Enquire
7	37206782233	Pipe, rear left air spring	37206782233 Pipe, rear left air spring 2445MM	-	1	Enquire
8	37206782234	Pipe, rear right air spring	37206782234 Pipe, rear right air spring 2742MM	-	1	Enquire
9	37206782231	Pipe, front left air spring	37206782231 Pipe, front left air spring 6720MM	-	1	Enquire
9	37206795389	Pipe, front left air spring	37206795389 Pipe, front left air spring 6890MM	-	1	Enquire
10	37206782232	Pipe, front right air spring	37206782232 Pipe, front right air spring 7400MM	-	1	Enquire
10	37206795382	Pipe, front right air spring	37206795382 Pipe, front right air spring 7570MM	-	1	Enquire
11	37221092403	Screwed connection	37221092403 Screwed connection D=4MM	-	10	Enquire
12	34306784201	Line clip, double	34306784201 Line clip, double	-	6	Enquire
13	34326855500	Brake pipe bracket	34326855500 Brake pipe bracket	-	18	Enquire
14	37226776050	Pipe clip	37226776050 Pipe clip	-	8	Enquire
15	34326880898	Brake pipe bracket	34326880898 Brake pipe bracket	-	8	Enquire
16	34317707371	Tandem clamp	34317707371 Tandem clamp D=5-8/10-12MM	-	3	Enquire
17	61138370478	Cable tie	61138370478 Cable tie	-	2	Enquire
18	51721866416	Edge protection	51721866416 Edge protection	-	1	Enquire
19	37146756263	Pressure sensor	37146756263 Pressure sensor 21BAR	-	1	Enquire
