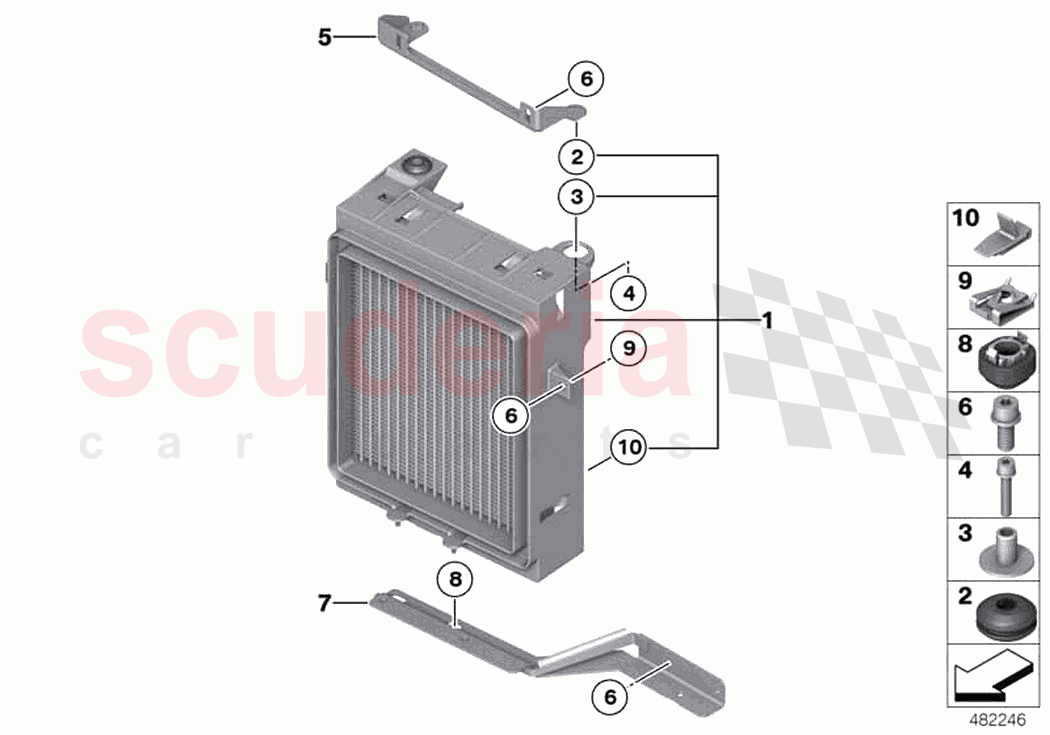

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	17217599616	Engine-oil cooler	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	17217585288	Grommet	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	17217585289	Spacer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905537	Isa screw with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	17217598756	Bracket, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904819	Torx-bolt with washer	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	17217598758	Bracket, right	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	17117575251	Damping element	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	51717065773	C-clip nut	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	17117560115	Clip	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	17217599616	Engine-oil cooler	17217599616 Engine-oil cooler	-	1	Enquire
2	17217585288	Grommet IN STOCK	17217585288 Grommet D=29 IN STOCK	-	2	Enquire
3	17217585289	Spacer	17217585289 Spacer	-	2	Enquire
4	7129905537	Isa screw with washer	7129905537 Isa screw with washer M6X30-U0-8.8	-	2	Enquire
5	17217598756	Bracket, right	17217598756 Bracket, right	-	1	Enquire
6	7129904819	Torx-bolt with washer IN STOCK	7129904819 Torx-bolt with washer M6X16-8.8-ZNNIV IN STOCK	-	6	Enquire
7	17217598758	Bracket, right IN STOCK	17217598758 Bracket, right IN STOCK	-	1	Enquire
8	17117575251	Damping element IN STOCK	17117575251 Damping element IN STOCK	-	2	Enquire
9	51717065773	C-clip nut IN STOCK	51717065773 C-clip nut IN STOCK	-	2	Enquire
10	17117560115	Clip	17117560115 Clip	-	1	Enquire
