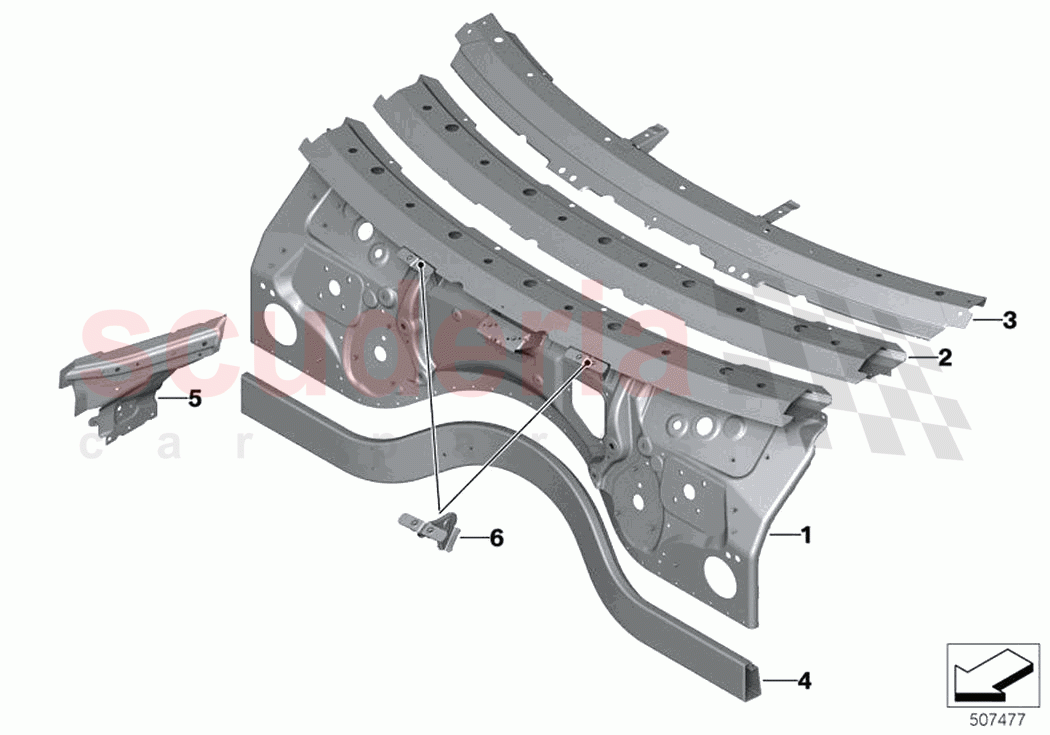

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	41009853401	Splash wall	$4,701.64	To Order

Photo	Part No	Description	Price (each)	Stock
	41009853394	Lower apron	$2,791.57	To Order

Photo	Part No	Description	Price (each)	Stock
	41009853402	Attachment part cowl panel bottom	$1,658.34	To Order

Photo	Part No	Description	Price (each)	Stock
	41008494559	Cross member, splash wall	$2,078.65	To Order

Photo	Part No	Description	Price (each)	Stock
	41009853397	Left engine compartment partition	$1,078.05	To Order
	41009853398	Right engine compartment partition	$1,078.05	To Order

Photo	Part No	Description	Price (each)	Stock
	41009853403	Left upper apron reinforcement	$367.76	To Order
	41009853404	Right upper apron reinforcement	$367.76	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	41009853401	Splash wall	41009853401 Splash wall	$4,701.64	1
2	41009853394	Lower apron	41009853394 Lower apron	$2,791.57	1
3	41009853402	Attachment part cowl panel bottom	41009853402 Attachment part cowl panel bottom	$1,658.34	1
4	41008494559	Cross member, splash wall	41008494559 Cross member, splash wall	$2,078.65	1
5	41009853397	Left engine compartment partition	41009853397 Left engine compartment partition	$1,078.05	1
5	41009853398	Right engine compartment partition	41009853398 Right engine compartment partition	$1,078.05	1
6	41009853403	Left upper apron reinforcement	41009853403 Left upper apron reinforcement	$367.76	1
6	41009853404	Right upper apron reinforcement	41009853404 Right upper apron reinforcement	$367.76	1
