Brake pipe front of Rolls Royce Rolls Royce Ghost RR21(2019-2023)

View All

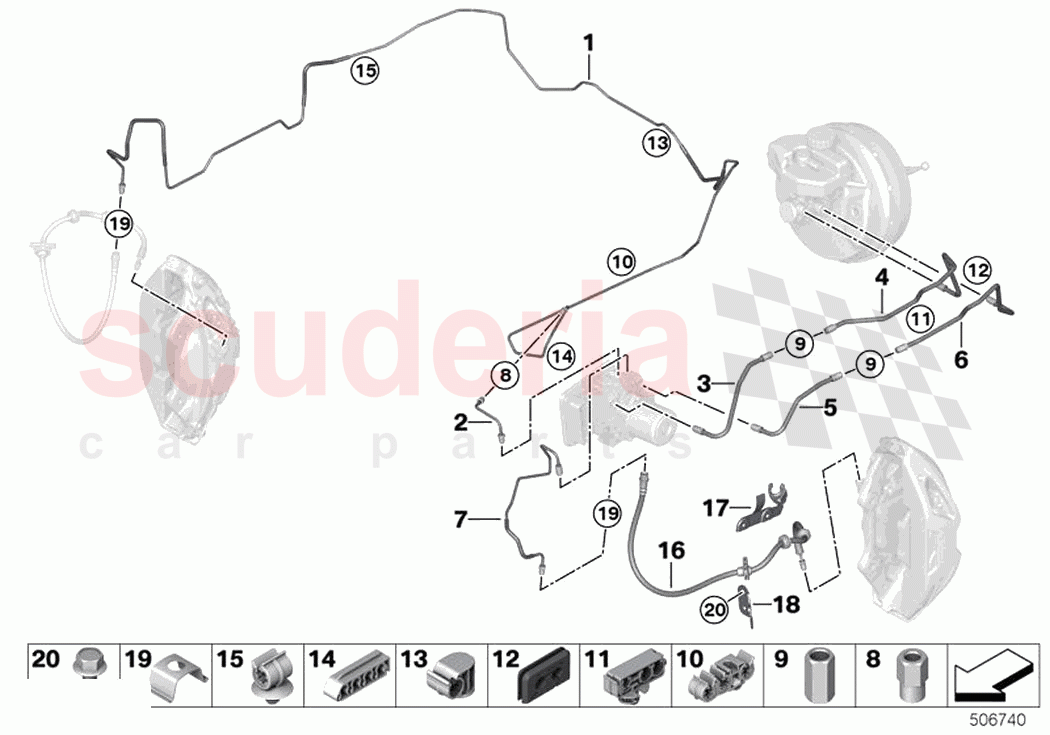

Rolls Royce Ghost RR21(2019-2023) - Brake pipe front (1)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	34306874134	Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34306874128	Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34306874138	Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34306874124	Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34306874136	Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34306874122	Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34306874126	Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34326868934	Connection piece	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34326868935	Connection piece	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34306886415	Line clip, triple	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34306880740	Line clip, triple	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34306875666	Rubber grommet pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34326855500	Brake pipe bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34326777692	Spacer, 4-part	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34326871821	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34306871905	Brake hose front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34306871911	Holder, brake hose, outer left	Enquire	To Order
	34306871912	Holder, brake hose, outer right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34306871909	Holder, brake hose, front left	Enquire	To Order
	34306871910	Holder, brake hose, front right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34341163565	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7131025735	Screw, self tapping	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	34306874134	Pipe	34306874134 Pipe	-	1	Enquire
2	34306874128	Pipe	34306874128 Pipe	-	1	Enquire
3	34306874138	Pipe	34306874138 Pipe	-	1	Enquire
4	34306874124	Pipe	34306874124 Pipe	-	1	Enquire
5	34306874136	Pipe	34306874136 Pipe	-	1	Enquire
6	34306874122	Pipe	34306874122 Pipe	-	1	Enquire
7	34306874126	Pipe	34306874126 Pipe	-	1	Enquire
8	34326868934	Connection piece	34326868934 Connection piece M10X1	-	1	Enquire
9	34326868935	Connection piece	34326868935 Connection piece M12X1	-	2	Enquire
10	34306886415	Line clip, triple	34306886415 Line clip, triple	-	2	Enquire
11	34306880740	Line clip, triple	34306880740 Line clip, triple	-	1	Enquire
12	34306875666	Rubber grommet pipe	34306875666 Rubber grommet pipe	-	1	Enquire
13	34326855500	Brake pipe bracket	34326855500 Brake pipe bracket	-	4	Enquire
14	34326777692	Spacer, 4-part	34326777692 Spacer, 4-part	-	1	Enquire
15	34326871821	Clip	34326871821 Clip	-	4	Enquire
16	34306871905	Brake hose front	34306871905 Brake hose front	-	2	Enquire
17	34306871911	Holder, brake hose, outer left	34306871911 Holder, brake hose, outer left	-	1	Enquire
17	34306871912	Holder, brake hose, outer right	34306871912 Holder, brake hose, outer right	-	1	Enquire
18	34306871909	Holder, brake hose, front left	34306871909 Holder, brake hose, front left	-	1	Enquire
18	34306871910	Holder, brake hose, front right	34306871910 Holder, brake hose, front right	-	1	Enquire
19	34341163565	Clip	34341163565 Clip	-	2	Enquire
20	7131025735	Screw, self tapping	7131025735 Screw, self tapping M6X16MM	-	4	Enquire
