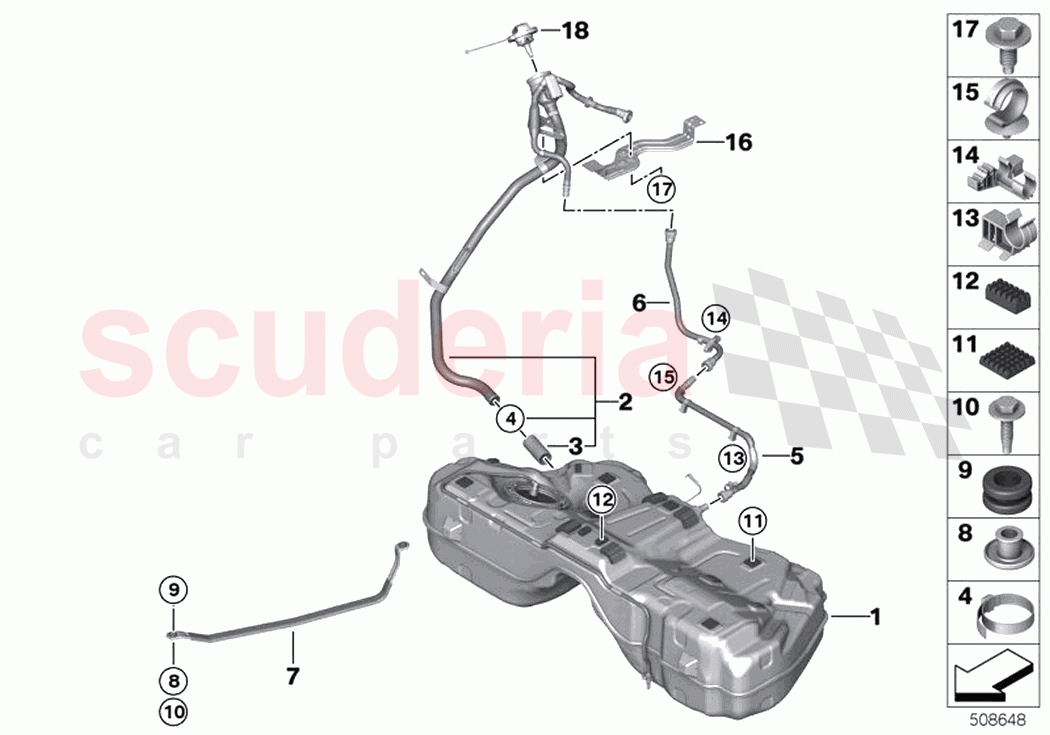

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	16118488082	Metal fuel tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16117497895	Filler pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16117468993	Filler pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129952117	Hose clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16137446750	Vent pipe, fuel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16137415283	Vent pipe, fuel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16117415282	Tension strap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16117194458	Spacer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16111182454	Rubber grommet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119906672	Hex Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16117328084	Base	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16117847362	Base	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16127313557	Line clip, single	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16127407367	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12521747181	Cable holder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16118744970	Bracket filler pipe	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	16118488082	Metal fuel tank	16118488082 Metal fuel tank 90L	-	1	Enquire
2	16117497895	Filler pipe	16117497895 Filler pipe	-	1	Enquire
3	16117468993	Filler pipe	16117468993 Filler pipe	-	1	Enquire
4	7129952117	Hose clamp	7129952117 Hose clamp L37-43	-	2	Enquire
5	16137446750	Vent pipe, fuel	16137446750 Vent pipe, fuel	-	1	Enquire
6	16137415283	Vent pipe, fuel	16137415283 Vent pipe, fuel	-	1	Enquire
7	16117415282	Tension strap	16117415282 Tension strap	-	2	Enquire
8	16117194458	Spacer	16117194458 Spacer	-	4	Enquire
9	16111182454	Rubber grommet	16111182454 Rubber grommet	-	4	Enquire
10	7119906672	Hex Bolt	7119906672 Hex Bolt M8X30-PF-U2-8.8	-	4	Enquire
11	16117328084	Base	16117328084 Base	-	7	Enquire
12	16117847362	Base	16117847362 Base	-	2	Enquire
13	16127313557	Line clip, single	16127313557 Line clip, single D16-18	-	5	Enquire
14	16127407367	Clip	16127407367 Clip	-	1	Enquire
15	12521747181	Cable holder	12521747181 Cable holder	-	1	Enquire
16	16118744970	Bracket filler pipe	16118744970 Bracket filler pipe	-	1	Enquire
17	7119905413	Hex Bolt	7119905413 Hex Bolt M6X16-U1-A2-70; from 06.2022	-	7	Enquire
17	7119905399	Hex Bolt with washer	7119905399 Hex Bolt with washer M6X18-U1; to 06.2022	-	7	Enquire
18	16117482902	Filler cap	16117482902 Filler cap	-	1	Enquire
18	16117493051	Filler cap	16117493051 Filler cap	-	1	Enquire
18	16117470341	Filler cap	16117470341 Filler cap	-	1	Enquire
