Name: Timing and valve train timing chain
Rating: 4.0 (1 reviews)

Timing and valve train timing chain of Rolls Royce Rolls Royce Ghost RR21(2019-2023)

View All

Rolls Royce Ghost RR21(2019-2023) - Timing and valve train timing chain (1)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11318661671	Timing chain with tensioning rail	$159.49	To Order

Photo	Part No	Description	Price (each)	Stock
	11318661670	Timing chain with tensioning rail	$159.49	To Order

Photo	Part No	Description	Price (each)	Stock
	11217571037	Sprocket	$48.32	To Order

Photo	Part No	Description	Price (each)	Stock
	7119951453	Woodruff key	$0.97	To Order

Photo	Part No	Description	Price (each)	Stock
	11367567499	Adjustment unit, outlet camshaft	$694.19	To Order

Photo	Part No	Description	Price (each)	Stock
	11367598001	Adjustment unit, inlet camshaft	$694.19	To Order

Photo	Part No	Description	Price (each)	Stock
	11367598002	Adjustment unit, outlet camshaft	$694.19	To Order

Photo	Part No	Description	Price (each)	Stock
	11367564346	Central screw	$5.91	To Order

Photo	Part No	Description	Price (each)	Stock
	11317557741	Chain tensioner	$132.31	To Order

Photo	Part No	Description	Price (each)	Stock
	11317574338	Guide rail	$51.74	To Order

Photo	Part No	Description	Price (each)	Stock
	11317574334	Guide rail	$51.74	To Order

Photo	Part No	Description	Price (each)	Stock
	11317584403	Bearing screw, self-locking	$12.38	To Order

Photo	Part No	Description	Price (each)	Stock
	11317560666	Bearing screw	$12.98	To Order

Photo	Part No	Description	Price (each)	Stock
	11317504455	Torx bolt	$7.11	To Order

Photo	Part No	Description	Price (each)	Stock
	11317584402	Bearing screw, self-locking	$7.70	To Order

Photo	Part No	Description	Price (each)	Stock
	11317582925	Bearing screw	$11.43	To Order

Photo	Part No	Description	Price (each)	Stock
	11317574336	Slide rail	$51.74	To Order

Photo	Part No	Description	Price (each)	Stock
	11127570995	ISA screw	$1.96	To Order

Photo	Part No	Description	Price (each)	Stock
	11147574332	Chain guide	$53.49	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905400	Hex Bolt with washer	$1.14	IN STOCK

View All

Diagram Tap to enlarge

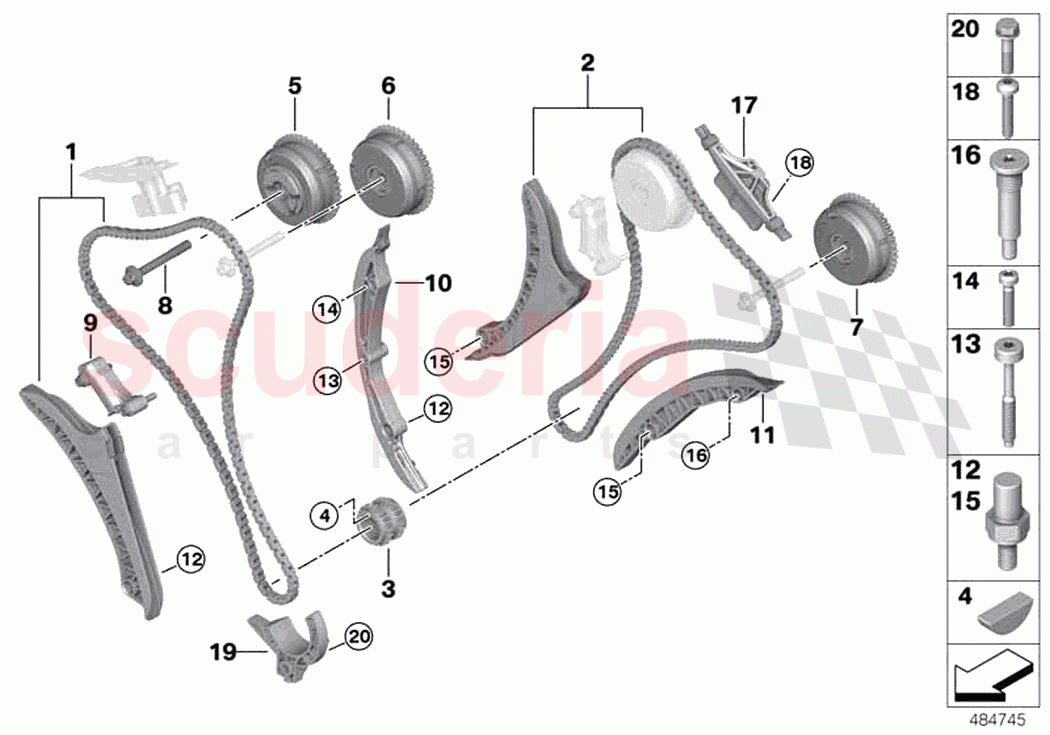

Timing And Valve Train Timing Chain

Rolls Royce Ghost RR21(2019-2023)

Illustration Number: 1

Rolls Royce Ghost RR21(2019-2023) - Timing and valve train timing chain (1)

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	11318661671	Timing chain with tensioning rail	11318661671 Timing chain with tensioning rail ZYL. 1-6	$159.49	1
2	11318661670	Timing chain with tensioning rail	11318661670 Timing chain with tensioning rail ZYL. 7-12	$159.49	1
3	11217571037	Sprocket	11217571037 Sprocket	$48.32	1
4	7119951453	Woodruff key	7119951453 Woodruff key 4X5	$0.97	1
5	11367567499	Adjustment unit, outlet camshaft	11367567499 Adjustment unit, outlet camshaft ZYL. 1-6	$694.19	1
6	11367598001	Adjustment unit, inlet camshaft	11367598001 Adjustment unit, inlet camshaft	$694.19	2
7	11367598002	Adjustment unit, outlet camshaft	11367598002 Adjustment unit, outlet camshaft	$694.19	1
8	11367564346	Central screw	11367564346 Central screw M10X1X80	$5.91	4
9	11317557741	Chain tensioner	11317557741 Chain tensioner	$132.31	2
10	11317574338	Guide rail	11317574338 Guide rail	$51.74	1
11	11317574334	Guide rail	11317574334 Guide rail	$51.74	1
12	11317584403	Bearing screw, self-locking	11317584403 Bearing screw, self-locking	$12.38	2
13	11317560666	Bearing screw	11317560666 Bearing screw	$12.98	1
14	11317504455	Torx bolt	11317504455 Torx bolt M8X38	$7.11	1
15	11317584402	Bearing screw, self-locking	11317584402 Bearing screw, self-locking	$7.70	2
16	11317582925	Bearing screw	11317582925 Bearing screw	$11.43	1
17	11317574336	Slide rail	11317574336 Slide rail	$51.74	2
18	11127570995	ISA screw	11127570995 ISA screw M7X45-8.8	$1.96	4
19	11147574332	Chain guide	11147574332 Chain guide	$53.49	1
20	7119905400	Hex Bolt with washer IN STOCK	7119905400 Hex Bolt with washer M6X25-ZNNIV SI IN STOCK	$1.14	1
