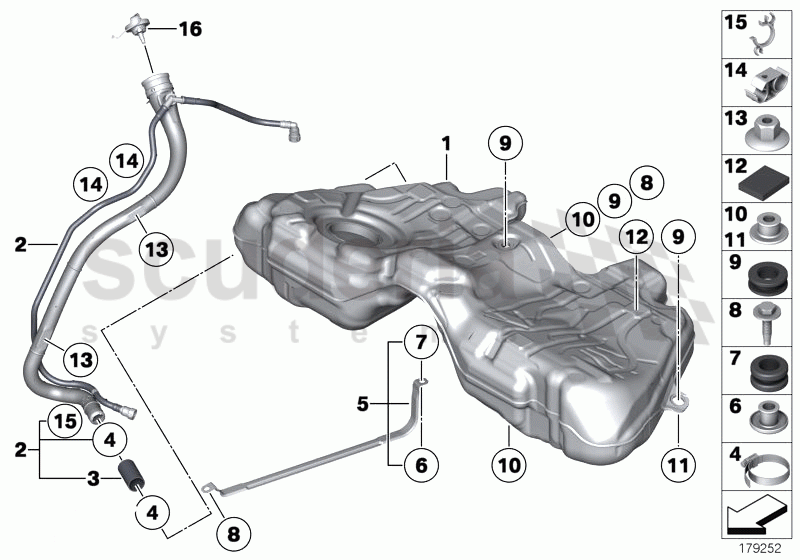

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	16117046329	Filler pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129952119	Hose clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16117184963	Tension strap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16117194458	Spacer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16111182454	Rubber grommet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904806	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16111182609	Rubber grommet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16116764867	Spacer bush	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16117201486	Spacer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16117003073	Base	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16131183133	Plastic nut for coarse threaded pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16127199666	Line clip, double	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16117003188	Triple clip	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	16117217267	Plastic fuel tank	16117217267 Plastic fuel tank	-	-	Enquire
1	16117217269	Plastic fuel tank	16117217269 Plastic fuel tank	-	-	Enquire
2	16117203405	Plastic filler pipe	16117203405 Plastic filler pipe	-	-	Enquire
2	16117207709	Plastic filler pipe	16117207709 Plastic filler pipe	-	-	Enquire
3	16117046329	Filler pipe	16117046329 Filler pipe	-	-	Enquire
4	7129952119	Hose clamp	7129952119 Hose clamp L42-48	-	-	Enquire
5	16117184963	Tension strap	16117184963 Tension strap	-	-	Enquire
6	16117194458	Spacer	16117194458 Spacer	-	-	Enquire
7	16111182454	Rubber grommet	16111182454 Rubber grommet	-	-	Enquire
8	7119904806	Fillister head screw	7119904806 Fillister head screw M8X30-U2-PF-8.8	-	-	Enquire
9	16111182609	Rubber grommet	16111182609 Rubber grommet	-	-	Enquire
10	16116764867	Spacer bush	16116764867 Spacer bush	-	-	Enquire
11	16117201486	Spacer	16117201486 Spacer	-	-	Enquire
12	16117003073	Base	16117003073 Base 35X43 MM	-	-	Enquire
13	16131183133	Plastic nut for coarse threaded pin	16131183133 Plastic nut for coarse threaded pin	-	-	Enquire
14	16127199666	Line clip, double	16127199666 Line clip, double	-	-	Enquire
15	16117003188	Triple clip	16117003188 Triple clip	-	-	Enquire
16	16117221253	Filler cap	16117221253 Filler cap	-	-	Enquire
16	16117222330	Filler cap	16117222330 Filler cap	-	-	Enquire
16	16117222391	Filler cap	16117222391 Filler cap	-	-	Enquire
16	16117224480	Filler cap	16117224480 Filler cap	-	-	Enquire
