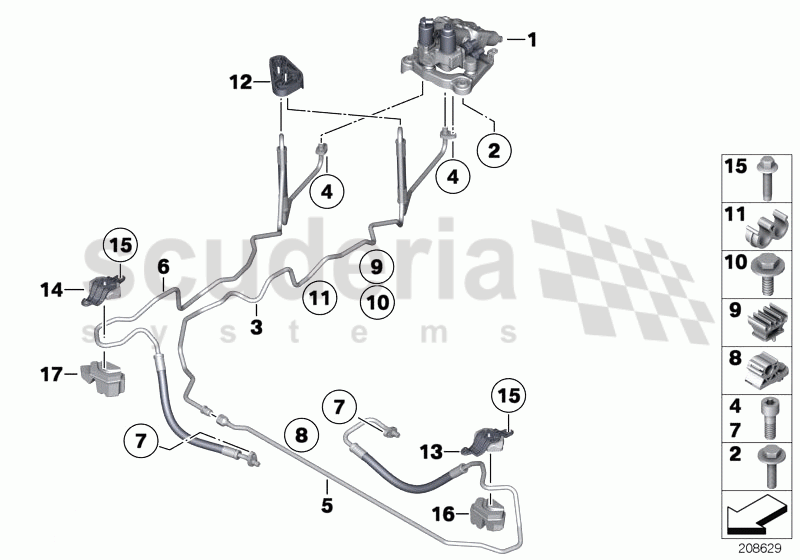

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	37146775258	Valve block	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119902911	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37106782645	Pressure line, valve block	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905769	ISA screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37106782643	Pressure line, motor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37106782644	Pressure line, motor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904065	ISA screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37136777226	Pipe support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37136777224	Pipe support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905308	Hex Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37106783306	Pipe support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37136780520	Damper rubber	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37106785436	Holder upper section	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	17217594324	Bracket, oil cooler line	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34306771214	Screw, self tapping	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37106785437	Bracket lower left	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37106785438	Bracket lower right	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	37146775258	Valve block	37146775258 Valve block	-	-	Enquire
2	7119902911	Hex Bolt with washer	7119902911 Hex Bolt with washer M6X25-U2-ZNS3	-	-	Enquire
3	37106782645	Pressure line, valve block	37106782645 Pressure line, valve block	-	-	Enquire
4	7129905769	ISA screw	7129905769 ISA screw M8X22-ZNNIV SI	-	-	Enquire
5	37106782643	Pressure line, motor	37106782643 Pressure line, motor	-	-	Enquire
6	37106782644	Pressure line, motor	37106782644 Pressure line, motor	-	-	Enquire
7	7129904065	ISA screw	7129904065 ISA screw M8X20 ZNS3	-	-	Enquire
8	37136777226	Pipe support	37136777226 Pipe support	-	-	Enquire
9	37136777224	Pipe support	37136777224 Pipe support	-	-	Enquire
10	7119905308	Hex Bolt	7119905308 Hex Bolt M6X18 ZNS3	-	-	Enquire
11	37106783306	Pipe support	37106783306 Pipe support	-	-	Enquire
12	37136780520	Damper rubber	37136780520 Damper rubber	-	-	Enquire
13	37106785436	Holder upper section	37106785436 Holder upper section	-	-	Enquire
14	17217594324	Bracket, oil cooler line	17217594324 Bracket, oil cooler line	-	-	Enquire
15	34306771214	Screw, self tapping	34306771214 Screw, self tapping M6X25- 10.9 ZNS	-	-	Enquire
16	37106785437	Bracket lower left	37106785437 Bracket lower left	-	-	Enquire
17	37106785438	Bracket lower right	37106785438 Bracket lower right	-	-	Enquire
