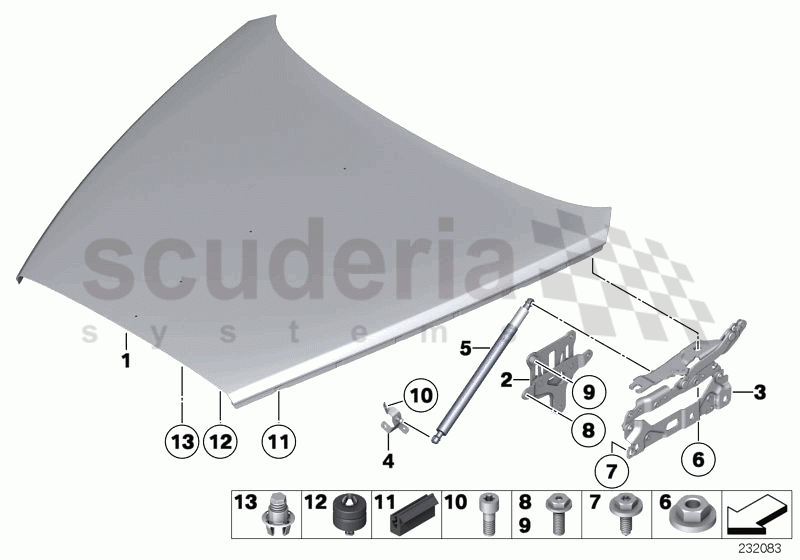

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	41007237963	Aluminium engine hood	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146970706	Hex nut with plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149199745	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41617068713	Hexagon screw/washer assembly	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41617065160	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904588	ISA screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51238247699	Bump stop	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51237162448	Stop buffer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51767183752	Adjuster	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	41007237963	Aluminium engine hood	41007237963 Aluminium engine hood PRIMED	-	-	Enquire
2	51237184435	Left gate	51237184435 Left gate	-	-	Enquire
2	51237184436	Right gate	51237184436 Right gate	-	-	Enquire
3	41007242661	Left engine hood hinge	41007242661 Left engine hood hinge	-	-	Enquire
3	41007242662	Right engine hood hinge	41007242662 Right engine hood hinge	-	-	Enquire
4	51237198451	Gas pressurized spring	51237198451 Gas pressurized spring 350NM AUSSCHUB.	-	-	Enquire
4	51237306440	Gas pressurized spring	51237306440 Gas pressurized spring 335NM AUSSCHUB.	-	-	Enquire
5	51237204961	Bracket for gas spring, left	51237204961 Bracket for gas spring, left	-	-	Enquire
5	51237204962	Bracket for gas spring, right	51237204962 Bracket for gas spring, right	-	-	Enquire
6	7146970706	Hex nut with plate	7146970706 Hex nut with plate M8	-	-	Enquire
7	7149199745	Hex Bolt with washer	7149199745 Hex Bolt with washer M8X21	-	-	Enquire
8	41617068713	Hexagon screw/washer assembly	41617068713 Hexagon screw/washer assembly M8X16	-	-	Enquire
9	41617065160	Hex Bolt with washer	41617065160 Hex Bolt with washer M8X24	-	-	Enquire
10	7129904588	ISA screw	7129904588 ISA screw M6X16	-	-	Enquire
11	51238247699	Bump stop	51238247699 Bump stop	-	-	Enquire
12	51237162448	Stop buffer	51237162448 Stop buffer	-	-	Enquire
13	51767183752	Adjuster	51767183752 Adjuster	-	-	Enquire
