Heat exch transmission oil cooler line of Rolls Royce Rolls Royce Dawn RR6(2017-2023)

View All

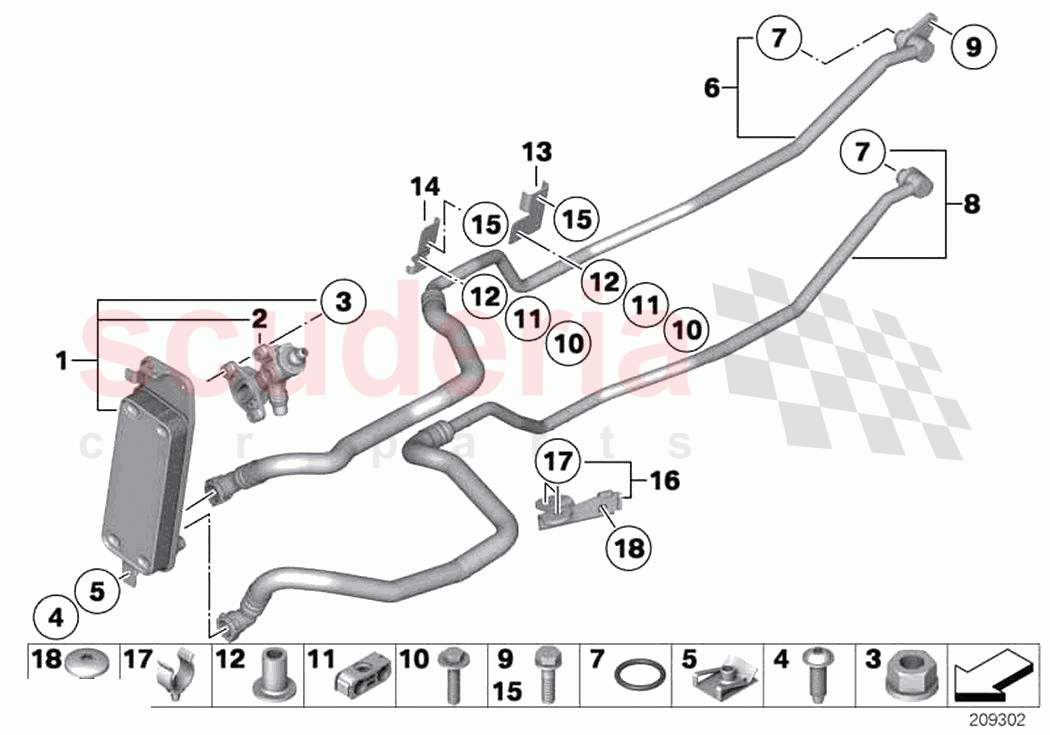

Rolls Royce Dawn RR6(2017-2023) - Heat exch transmission oil cooler line

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	17217638678	Transmission oil cooler	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	17117536971	Screw, self tapping	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11427789289	Clip nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	17227603918	Oil cooling pipe inlet	Enquire	To Order
	17228644790	Oil cooling pipe inlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	17227800958	O-ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	17227603919	Oil cooling pipe outlet	Enquire	To Order
	17228644791	Oil cooling pipe outlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	17227555715	Locking screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119903994	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	17227575461	Pipe clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	17227579121	Spacer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	17227591176	Bracket, oil cooler line	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	17227595232	Bracket, oil cooler line	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905525	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	17227596825	Bracket, oil cooler line	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	17127533721	Hose clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146958688	Fillister head screw	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	11531436850	Blind plug	11531436850 Blind plug D=8	-	1	Enquire
1	17217638678	Transmission oil cooler	17217638678 Transmission oil cooler	-	1	Enquire
4	17117536971	Screw, self tapping	17117536971 Screw, self tapping D6X20 ZNS3	-	1	Enquire
5	11427789289	Clip nut	11427789289 Clip nut M6-ZNS3	-	1	Enquire
6	17227603918	Oil cooling pipe inlet	17227603918 Oil cooling pipe inlet from 08.2016	-	1	Enquire
6	17228644790	Oil cooling pipe inlet	17228644790 Oil cooling pipe inlet to 08.2016	-	1	Enquire
7	17227800958	O-ring	17227800958 O-ring 13,65X2,62	-	2	Enquire
8	17227603919	Oil cooling pipe outlet	17227603919 Oil cooling pipe outlet from 08.2016	-	1	Enquire
8	17228644791	Oil cooling pipe outlet	17228644791 Oil cooling pipe outlet to 08.2016	-	1	Enquire
9	17227555715	Locking screw	17227555715 Locking screw M8X28-Z3	-	1	Enquire
10	7119903994	Hex Bolt with washer	7119903994 Hex Bolt with washer M6X30-U2-ZNS3	-	2	Enquire
11	17227575461	Pipe clip	17227575461 Pipe clip	-	2	Enquire
12	17227579121	Spacer	17227579121 Spacer	-	2	Enquire
13	17227591176	Bracket, oil cooler line	17227591176 Bracket, oil cooler line	-	1	Enquire
14	17227595232	Bracket, oil cooler line	17227595232 Bracket, oil cooler line	-	1	Enquire
15	7119905525	Hex Bolt with washer	7119905525 Hex Bolt with washer M6X14-U1-8.8	-	2	Enquire
16	17227596825	Bracket, oil cooler line	17227596825 Bracket, oil cooler line	-	1	Enquire
17	17127533721	Hose clamp	17127533721 Hose clamp	-	2	Enquire
18	7146958688	Fillister head screw	7146958688 Fillister head screw M6X14	-	1	Enquire
