Rear Wheel Brake

Rolls Royce Cullinan RR31(2017-2023)

Find Your Part

Rolls Royce Cullinan RR31(2017-2023) - Rear wheel brake

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
34216885187 Repair kit, brake pads asbestos-free Enquire To Order
34216885187 Repair kit, brake pads asbestos-free Enquire To Order
Photo Part No Description Price (each) Stock
34356871916 Brake-pad sensor, rear Enquire To Order
Photo Part No Description Price (each) Stock
34216871258 Brake disc, lightweight, ventilated Enquire To Order
Photo Part No Description Price (each) Stock
34211161806 Inner hex bolt Enquire To Order
Photo Part No Description Price (each) Stock
34206882999 Brake caliper housing, black, left Enquire To Order
34206883000 Brake caliper housing, black, right Enquire To Order
34208845037 Caliper housing left Enquire To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
34206882987 Calliper carrier black left Enquire To Order
34206882988 Calliper carrier black right Enquire To Order
34208846193 Calliper carrier left Enquire To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
34108838589 Torx screw with washer Enquire To Order
Photo Part No Description Price (each) Stock
34116768188 Repair kit bleeder valve Enquire To Order
Photo Part No Description Price (each) Stock
34216888077 Repair kit bellows Enquire To Order
Photo Part No Description Price (each) Stock
34206850560 Hex Bolt Enquire To Order
Photo Part No Description Price (each) Stock
34216887383 Repair kit, actuator EMF Enquire To Order
34216888850 Repair kit, actuator EMF Enquire To Order
Photo Part No Description Price (each) Stock
34206870566 Hexagon socket bolt Enquire To Order
Photo Part No Description Price (each) Stock
34216870569 Repair kit, cable routing, left Enquire To Order
34216870570 Repair kit, cable routing, right Enquire To Order
Photo Part No Description Price (each) Stock
34206786064 Sealing sleeve Enquire To Order
Photo Part No Description Price (each) Stock
34206861803 Protection plate left Enquire To Order
34206861804 Protection plate right Enquire To Order
34206899155 Protection plate left Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
34116868785 Hex Bolt Enquire To Order
Photo Part No Description Price (each) Stock
83192158851 Brake-pad paste Enquire To Order
Photo Part No Description Price (each) Stock
33306786621 Heli-Coil threaded insert Enquire To Order
View All

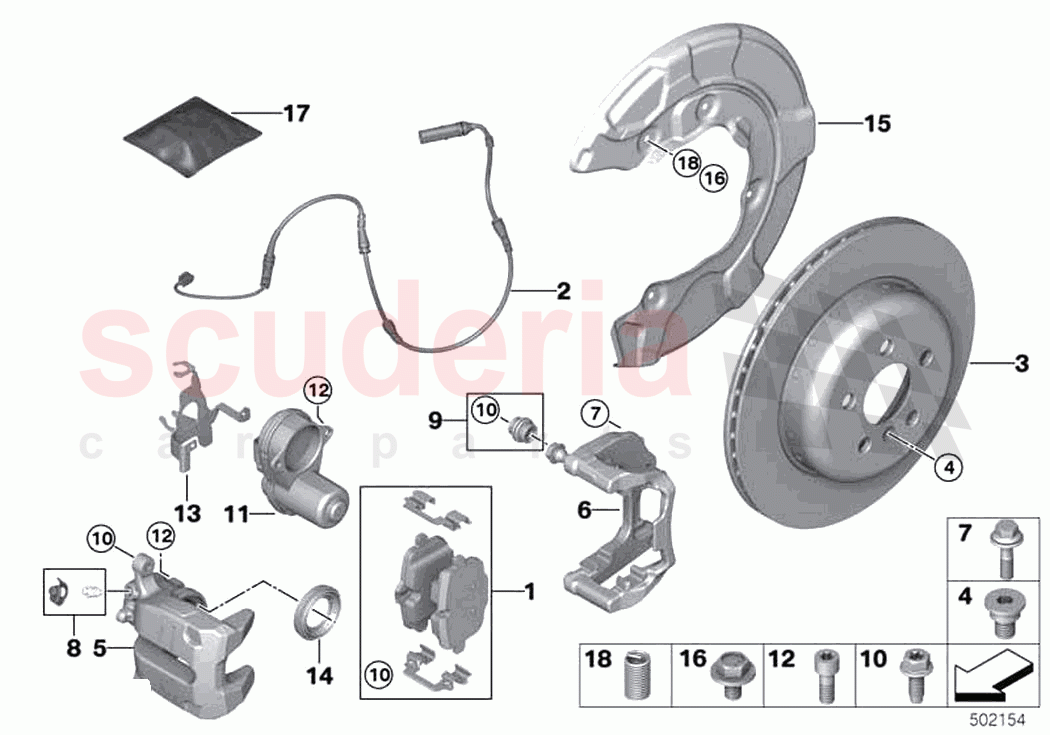

Rear wheel brake of Rolls Royce Rolls Royce Cullinan RR31(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
01 34216885187
Repair kit, brake pads asbestos-free
from 03.2020 		- 1 Enquire
01 34216885187
Repair kit, brake pads asbestos-free 		- 1 Enquire
02 34356871916
Brake-pad sensor, rear 		- 1 Enquire
03 34216871258
Brake disc, lightweight, ventilated
398X28 		- 2 Enquire
04 34211161806
Inner hex bolt
M8X14 		- 2 Enquire
05 34206882999
Brake caliper housing, black, left 		- 1 Enquire
05 34206883000
Brake caliper housing, black, right 		- 1 Enquire
05 34208845037
Caliper housing left 		- 1 Enquire
05 34208845038
Caliper housing right 		- 1 Enquire
05 34208845041
Caliper housing left 		- 1 Enquire
05 34208845042
Caliper housing right 		- 1 Enquire
05 34208845039
Caliper housing left 		- 1 Enquire
05 34208845040
Caliper housing right 		- 1 Enquire
05 34206898427
Caliper housing left
ROT 		- 1 Enquire
05 34206898428
Caliper housing right
ROT 		- 1 Enquire
06 34206882987
Calliper carrier black left 		- 1 Enquire
06 34206882988
Calliper carrier black right 		- 1 Enquire
06 34208846193
Calliper carrier left 		- 1 Enquire
06 34208846194
Calliper carrier right 		- 1 Enquire
06 34208846197
Calliper carrier left 		- 1 Enquire
06 34208846198
Calliper carrier right 		- 1 Enquire
06 34208846195
Calliper carrier left 		- 1 Enquire
06 34208846196
Calliper carrier right 		- 1 Enquire
06 34206898581
Calliper carrier left
ROT 		- 1 Enquire
06 34206898582
Calliper carrier right
ROT 		- 1 Enquire
07 34108838589
Torx screw with washer
M12X1,5X43 ZNS3 		- 4 Enquire
08 34116768188
Repair kit bleeder valve 		- 2 Enquire
09 34216888077
Repair kit bellows 		- 4 Enquire
10 34206850560
Hex Bolt
M8X22 		- 4 Enquire
11 34216887383
Repair kit, actuator EMF
from 08.2020 		- 2 Enquire
11 34216888850
Repair kit, actuator EMF 		- 2 Enquire
12 34206870566
Hexagon socket bolt
M6X14 		- 4 Enquire
13 34216870569
Repair kit, cable routing, left 		- 1 Enquire
13 34216870570
Repair kit, cable routing, right 		- 1 Enquire
14 34206786064
Sealing sleeve 		- 2 Enquire
15 34206861803
Protection plate left
from 12.2021 		- 1 Enquire
15 34206861804
Protection plate right
from 12.2021 		- 1 Enquire
15 34206899155
Protection plate left 		- 1 Enquire
15 34206899156
Protection plate right 		- 1 Enquire
16 34116868785
Hex Bolt
M6X12-10.9-MK- 		- 8 Enquire
17 83192158851
Brake-pad paste
3G 		- 2 Enquire
18 33306786621
Heli-Coil threaded insert
M6X12 		- 1 Enquire
