31 - REAR AXLE - 31.1 - TRANSMISSION of McLaren McLaren Ultimate Series McLaren Speedtail

View All

McLaren Ultimate Series McLaren Speedtail - 31 - REAR AXLE - 31.1 - TRANSMISSION

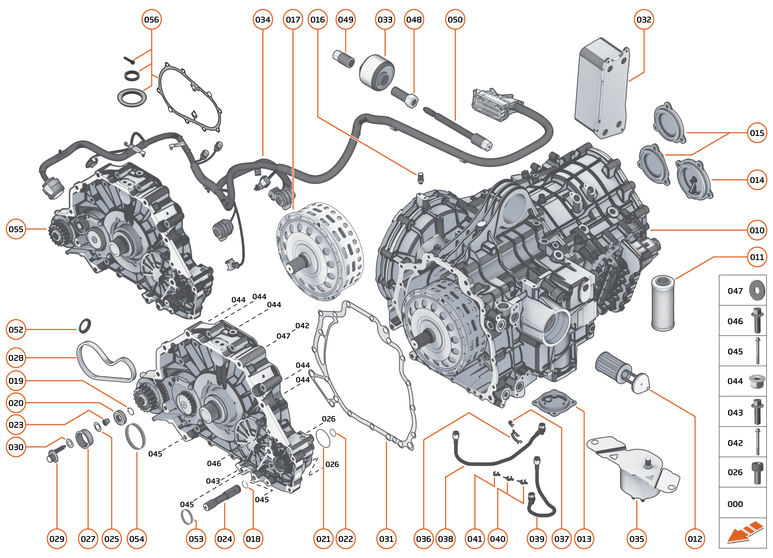

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	23GA026CP	SEAL - SHAFT CLUTCH GEAR	23GA026CP SEAL - SHAFT CLUTCH GEAR Row ID: ID__23GA026CP_ContPgHS;	-	1	Enquire
000	11SA022CP	INPUT SHAFT SEAL PRESS TOOL - TRANSMISSION INTERFACE PLATE	11SA022CP INPUT SHAFT SEAL PRESS TOOL - TRANSMISSION INTERFACE PLATE Row ID: ID__11SA022CP_ContPgHS;	-	1	Enquire
000	23SA520CP	TOOLING ASSY - MULE E-MOTOR GEAR SEAL	23SA520CP TOOLING ASSY - MULE E-MOTOR GEAR SEAL Row ID: ID__23SA520CP_ContPgHS;	-	1	Enquire
000	23SA521CP	TOOLING ASSY - CLUTCH GEAR SEAL	23SA521CP TOOLING ASSY - CLUTCH GEAR SEAL Row ID: ID__23SA521CP_ContPgHS;	-	1	Enquire
000	12G0242CP	SERVICE KIT-HYBRID DRIVE ASSEMBLY	12G0242CP SERVICE KIT-HYBRID DRIVE ASSEMBLY Row ID: ID__12G0242CP_ContPgHS;	-	-	Enquire
010	23GA013CP	ASSY-DCT-COMPLETE P23	23GA013CP ASSY-DCT-COMPLETE P23 Row ID: ID__23GA013CP_ContPgHS;	-	1	Enquire
011	11G0017CP	FILTER-CLUTCH FLUID IN STOCK	11G0017CP FILTER-CLUTCH FLUID Row ID: ID__11G0017CP_ContPgHS; IN STOCK	$98.61	1
012	11G0018CP	FILTER-TRANSMISSION OIL IN STOCK	11G0018CP FILTER-TRANSMISSION OIL Row ID: ID__11G0018CP_ContPgHS; IN STOCK	$162.47	1
013	11G0019CP	Access Cover - Filter - Clutch Fluid	11G0019CP Access Cover - Filter - Clutch Fluid Row ID: ID__11G0019CP_ContPgHS;	-	1	Enquire
014	11G0113CP	BEARING COVER-PRIM24Y SHAFT	11G0113CP BEARING COVER-PRIM24Y SHAFT Row ID: ID__11G0113CP_ContPgHS;	$192.93	1
015	11G0122CP	BEARING COVER-SECO24ARY SHAFT	11G0122CP BEARING COVER-SECO24ARY SHAFT Row ID: ID__11G0122CP_ContPgHS;	$192.93	2
016	11G0171CP	Breather - Transmission	11G0171CP Breather - Transmission Row ID: ID__11G0171CP_ContPgHS;	-	1	Enquire
017	23GA023CP	ASSY-DUAL CLUTCH-HYBRID P23	23GA023CP ASSY-DUAL CLUTCH-HYBRID P23 Row ID: ID__23GA023CP_ContPgHS;	-	1	Enquire
018	12G0290CP	CIRCLIP - E-MOTOR SHAFT	12G0290CP CIRCLIP - E-MOTOR SHAFT Row ID: ID__12G0290CP_ContPgHS;	-	1	Enquire
019	12G0292CP	CIRCLIP - TENSIONER - AIR CONDITIONING BELT	12G0292CP CIRCLIP - TENSIONER - AIR CONDITIONING BELT Row ID: ID__12G0292CP_ContPgHS;	-	1	Enquire
020	12G0299CP	BEARING - TENSIONER - AIR CONDITIONING BELT	12G0299CP BEARING - TENSIONER - AIR CONDITIONING BELT Row ID: ID__12G0299CP_ContPgHS;	-	1	Enquire
021	12G0303CP	O-RING - E-MOTOR SHAFT COVER	12G0303CP O-RING - E-MOTOR SHAFT COVER Row ID: ID__12G0303CP_ContPgHS;	-	1	Enquire
022	12G0304CP	O-RING - E-MOTOR SHAFT	12G0304CP O-RING - E-MOTOR SHAFT Row ID: ID__12G0304CP_ContPgHS;	-	1	Enquire
023	12G0317CP	NUT - DRIVE BELT TENSIONER	12G0317CP NUT - DRIVE BELT TENSIONER Row ID: ID__12G0317CP_ContPgHS;	-	1	Enquire
024	12G0339CP	SHAFT - E-MOTOR	12G0339CP SHAFT - E-MOTOR Row ID: ID__12G0339CP_ContPgHS;	-	1	Enquire
025	12G0380CP	SHIM - TENSIONER - AIR CONDITIONING BELT	12G0380CP SHIM - TENSIONER - AIR CONDITIONING BELT Row ID: ID__12G0380CP_ContPgHS;	-	1	Enquire
026	12G0403CP	SCREW - E-MOTOR SHAFT COVER	12G0403CP SCREW - E-MOTOR SHAFT COVER Row ID: ID__12G0403CP_ContPgHS;	-	2	Enquire
027	12G0426CP	SLEEVE - BEARING - FLANGED	12G0426CP SLEEVE - BEARING - FLANGED Row ID: ID__12G0426CP_ContPgHS;	-	1	Enquire
028	12G0431CP	BELT - DRIVE - AIR CONDITIONING COMPRESSOR	12G0431CP BELT - DRIVE - AIR CONDITIONING COMPRESSOR Row ID: ID__12G0431CP_ContPgHS;	-	1	Enquire
029	12G0432CP	SHAFT - TENSIONER - AIR CONDITIONING BELT	12G0432CP SHAFT - TENSIONER - AIR CONDITIONING BELT Row ID: ID__12G0432CP_ContPgHS;	-	1	Enquire
030	12G0435CP	WASHER - TENSIONER - AIR CONDITIONING BELT	12G0435CP WASHER - TENSIONER - AIR CONDITIONING BELT Row ID: ID__12G0435CP_ContPgHS;	-	1	Enquire
031	12G0283CP	GASKET - DCT GEARBOX - HYBRID DRIVE ASSEMBLY	12G0283CP GASKET - DCT GEARBOX - HYBRID DRIVE ASSEMBLY Row ID: ID__12G0283CP_ContPgHS;	-	1	Enquire
032	13G0060CP	OIL COOLER-TRANSMI24ION	13G0060CP OIL COOLER-TRANSMI24ION Row ID: ID__13G0060CP_ContPgHS;	$345.26	1
033	23GA052CP	MOUNTING BUSH-TRANSMISSION	23GA052CP MOUNTING BUSH-TRANSMISSION Row ID: ID__23GA052CP_ContPgHS;	-	1	Enquire
034	23GA093CP	WIRING HARNESS DCT EXTERNAL P2	23GA093CP WIRING HARNESS DCT EXTERNAL P2 Row ID: ID__23GA093CP_ContPgHS;	-	1	Enquire
035	23GA058CP	P23 ASSY CLUTCH FLUID BREATHER	23GA058CP P23 ASSY CLUTCH FLUID BREATHER Row ID: ID__23GA058CP_ContPgHS;	-	1	Enquire
036	00RG028	CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25	00RG028 CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25 Row ID: ID__00RG028_ContPgHS;	-	1	Enquire
037	00RB045	CLIP - 9.5-10MM - MALE	00RB045 CLIP - 9.5-10MM - MALE Row ID: ID__00RB045_ContPgHS;	-	1	Enquire
038	23GA059CP	P23 PIPE ASSY-CL BREATHR FRNT	23GA059CP P23 PIPE ASSY-CL BREATHR FRNT Row ID: ID__23GA059CP_ContPgHS;	-	1	Enquire
039	23GA060CP	P23 PIPE ASSY-CL BREATHR REAR	23GA060CP P23 PIPE ASSY-CL BREATHR REAR Row ID: ID__23GA060CP_ContPgHS;	-	1	Enquire
040	00RB047	Swivel Clip - 9-9.5 - Male-Female	00RB047 Swivel Clip - 9-9.5 - Male-Female Row ID: ID__00RB047_ContPgHS;	-	2	Enquire
041	00RB046	CLIP - 8-9MM - FEMALE	00RB046 CLIP - 8-9MM - FEMALE Row ID: ID__00RB046_ContPgHS;	-	1	Enquire
042	00RA102	BOLT-HEX-HEAD-FLANGE-M10X120 1	00RA102 BOLT-HEX-HEAD-FLANGE-M10X120 1 Row ID: ID__00RA102_ContPgHS;	-	1	Enquire
043	00RA157	Screw -M10x30 - Hex	00RA157 Screw -M10x30 - Hex Row ID: ID__00RA157_ContPgHS;	-	1	Enquire
044	00RA269	NUT - M10 - HEX	00RA269 NUT - M10 - HEX Row ID: ID__00RA269_ContPgHS;	-	5	Enquire
045	00RA383	BOLT HEX HEAD FLANGE - M10X160 10.9	00RA383 BOLT HEX HEAD FLANGE - M10X160 10.9 Row ID: ID__00RA383_ContPgHS;	-	3	Enquire
046	00RA471	Screw - M10x40 - Hex	00RA471 Screw - M10x40 - Hex Row ID: ID__00RA471_ContPgHS;	-	1	Enquire
047	00RC065	WASHER - M10X21X2.0	00RC065 WASHER - M10X21X2.0 Row ID: ID__00RC065_ContPgHS;	-	1	Enquire
048	11G0089CP	SCREW ADJUSTER - TRANSMISSION	11G0089CP SCREW ADJUSTER - TRANSMISSION Row ID: ID__11G0089CP_ContPgHS;	-	1	Enquire
049	11G0090CP	NUT - SCREW ADJUSTER - TRANSMISSION	11G0090CP NUT - SCREW ADJUSTER - TRANSMISSION Row ID: ID__11G0090CP_ContPgHS;	-	1	Enquire
050	11G0092CP	SHOULDER BOLT-HEX HD-M14 - 16 X 123 - BOLT- SCREW ADJUSTER - TRANSMISSION	11G0092CP SHOULDER BOLT-HEX HD-M14 - 16 X 123 - BOLT- SCREW ADJUSTER - TRANSMISSION Row ID: ID__11G0092CP_ContPgHS;	-	1	Enquire
052	11G0165CP	Seal - Input Shaft - Transmission	11G0165CP Seal - Input Shaft - Transmission Row ID: ID__11G0165CP_ContPgHS;	-	1	Enquire
053	23GA065CP	SEAL - SHAFT MOTOR GEAR	23GA065CP SEAL - SHAFT MOTOR GEAR Row ID: ID__23GA065CP_ContPgHS;	-	1	Enquire
054	23GA064CP	SEAL - SHAFT CLUTCH GEAR	23GA064CP SEAL - SHAFT CLUTCH GEAR Row ID: ID__23GA064CP_ContPgHS;	-	1	Enquire
055	23GA069CP	HYBRID-DRIVE-ASSY-HVAC-GEARBOX	23GA069CP HYBRID-DRIVE-ASSY-HVAC-GEARBOX Row ID: ID__23GA069CP_ContPgHS;	-	1	Enquire
056	12GA007CP	H.D.A REPAIR KIT	12GA007CP H.D.A REPAIR KIT Row ID: ID__12GA007CP_ContPgHS;	-	-	Enquire
