44 - Interior Systems - 44.5 - Upper Trim

McLaren Ultimate Series McLaren Speedtail

Find Your Part

McLaren Ultimate Series McLaren Speedtail - 44 - INTERIOR SYSTEMS - 44.5 - UPPER TRIM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

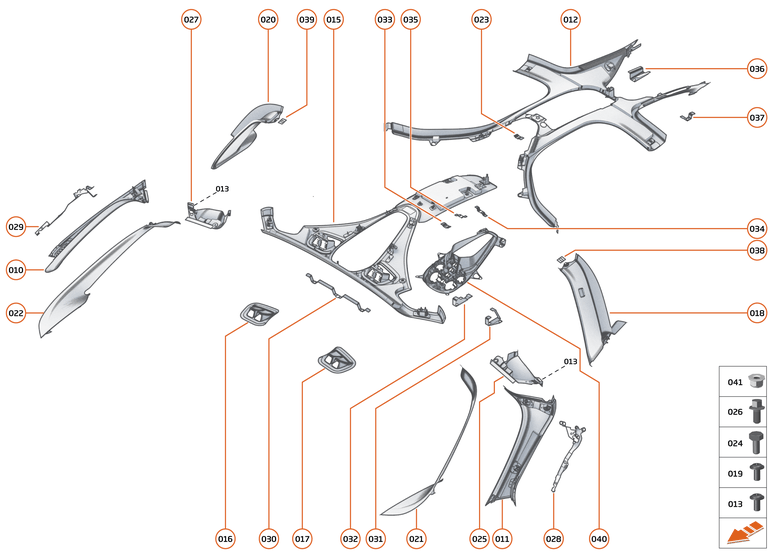

44 - INTERIOR SYSTEMS - 44.5 - UPPER TRIM of McLaren McLaren Ultimate Series McLaren Speedtail Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 23NA062CP
ASSY A PILLAR FINISHER LH
Row ID: ID__23NA062CP_ContPgHS; 		- 1 Enquire
011 23NA078CP
ASSY A PILLAR FINISHER RH
Row ID: ID__23NA078CP_ContPgHS; 		- 1 Enquire
012 23NA087CP
ASSY HEADLINING CTR
Row ID: ID__23NA087CP_ContPgHS; 		- 1 Enquire
013 00RA408
BUTTON HD FLANGE - M4X8
Row ID: ID__00RA408_ContPgHS; 		- 2 Enquire
014 23NA605CP
ASSY HEADLINING ACCESS PNL
Row ID: ID__23NA605CP_ContPgHS; 		- 1 Enquire
015 23NA755CP
ASSY HEADLINING FRONT
Row ID: ID__23NA755CP_ContPgHS; 		- 1 Enquire
016 23NA499CP
SWITCH BEZEL RH-HEADLINING
Row ID: ID__23NA499CP_ContPgHS; 		- 1 Enquire
017 23NA498CP
SWITCH BEZEL LH-HEADLINING
Row ID: ID__23NA498CP_ContPgHS; 		- 1 Enquire
018 23NA107CP
ASSY B PILLAR FINISHER LH
Row ID: ID__23NA107CP_ContPgHS; 		- 1 Enquire
019 00RA226
SCREW - M3X8 - BUTTON
Row ID: ID__00RA226_ContPgHS; 		- 1 Enquire
020 23NA113CP
ASSY B PILLAR FINISHER RH
Row ID: ID__23NA113CP_ContPgHS; 		- 1 Enquire
021 23NA898CP
ASSY A PILLAR FR FINISHER LH
Row ID: ID__23NA898CP_ContPgHS; 		- 1 Enquire
022 23NA257CP
ASSY ARMATURE ORNAMENT RH
Row ID: ID__23NA257CP_ContPgHS; 		- 1 Enquire
023 23AC214CP
ACCESS PANEL BRACKET FRT RH
Row ID: ID__23AC214CP_ContPgHS; 		- 1 Enquire
024 00RA480
SCREW - M4X0.7X8MM - HEX
Row ID: ID__00RA480_ContPgHS; 		- 2 Enquire
025 23NB251CP
ASSY GRAB HANDLE LH
Row ID: ID__23NB251CP_ContPgHS; 		- 1 Enquire
026 00RA064
BOLT - M5X12 - HEX
Row ID: ID__00RA064_ContPgHS; 		- 1 Enquire
027 23NB252CP
ASSY GRAB HANDLE RH
Row ID: ID__23NB252CP_ContPgHS; 		- 1 Enquire
028 23AB856CP
A PILLAR BRKT-LH
Row ID: ID__23AB856CP_ContPgHS; 		- 1 Enquire
029 23AB857CP
A PILLAR BRKT-RH
Row ID: ID__23AB857CP_ContPgHS; 		- 1 Enquire
030 23AB025CP
HEADLINER FRONT BRACKET
Row ID: ID__23AB025CP_ContPgHS; 		- 1 Enquire
031 23AB769CP
OVERHEAD FIN BRKT RUS LH
Row ID: ID__23AB769CP_ContPgHS; 		- 1 Enquire
032 23AC213CP
OVERHEAD FIN BRKT RUS RH
Row ID: ID__23AC213CP_ContPgHS; 		- 1 Enquire
033 23AB862CP
ACCESS PANEL BRACKET FRT LH
Row ID: ID__23AB862CP_ContPgHS; 		- 1 Enquire
034 23AC215CP
ACCESS PANEL BRACKET MDL LH
Row ID: ID__23AC215CP_ContPgHS; 		- 1 Enquire
035 23AC216CP
ACCESS PANEL BRACKET MDL RH
Row ID: ID__23AC216CP_ContPgHS; 		- 1 Enquire
036 23AB859CP
HEADLINER REAR BRKT-CTR
Row ID: ID__23AB859CP_ContPgHS; 		- 1 Enquire
037 23AB860CP
HEADLINER REAR BRKT RR LH
Row ID: ID__23AB860CP_ContPgHS; 		- 1 Enquire
038 23AC685CP
HEADLINING BRKT MID LH
Row ID: ID__23AC685CP_ContPgHS; 		- 1 Enquire
039 23AC686CP
HEADLINING BRKT MID RH
Row ID: ID__23AC686CP_ContPgHS; 		- 1 Enquire
040 23NA519CP
ASSY OVERHEAD FINISHER
Row ID: ID__23NA519CP_ContPgHS; 		- 1 Enquire
041 00RA564
NUT - M4 - FLANGE HEX
Row ID: ID__00RA564_ContPgHS; 		- 6 Enquire
