33 - Rear Axle - 33.1 - Transmission

McLaren Ultimate Series McLaren Senna GTR

Find Your Part

McLaren Ultimate Series McLaren Senna GTR - 33 - REAR AXLE - 33.1 - TRANSMISSION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

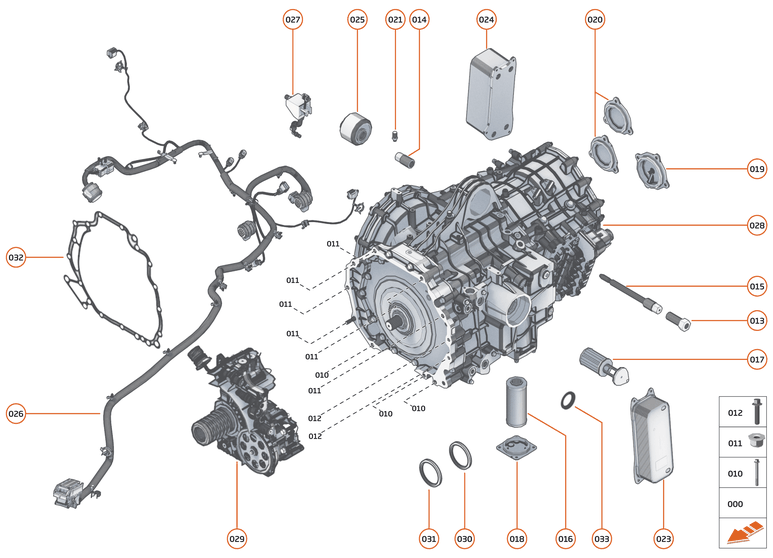

33 - REAR AXLE - 33.1 - TRANSMISSION of McLaren McLaren Ultimate Series McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11SA022CP
INPUT SHAFT SEAL PRESS TOOL - TRANSMISSION INTERFACE PLATE
Row ID: ID__11SA022CP_ContPgHS; 		- - Enquire
010 00RA202
BOLT - M10X1.5 - HEX
Row ID: ID__00RA202_ContPgHS; 		- 3 Enquire
011 00RA269
NUT - M10 - HEX
Row ID: ID__00RA269_ContPgHS; 		- 6 Enquire
012 00RA559
BOLT - HEX HEAD - M10X1.5X40
Row ID: ID__00RA559_ContPgHS; 		- 2 Enquire
013 11G0089CP
SCREW ADJUSTER - TRANSMISSION
Row ID: ID__11G0089CP_ContPgHS; 		- 1 Enquire
014 11G0090CP
NUT - SCREW ADJUSTER - TRANSMISSION
Row ID: ID__11G0090CP_ContPgHS; 		- 1 Enquire
015 11G0092CP
SHOULDER BOLT-HEX HD-M14 - 16 X 123 - BOLT- SCREW ADJUSTER - TRANSMISSION
Row ID: ID__11G0092CP_ContPgHS; 		- 1 Enquire
016 11G0017CP
FILTER-CLUTCH FLUID
Row ID: ID__11G0017CP_ContPgHS;
IN STOCK 		$98.61 1
017 11G0018CP
FILTER-TRANSMISSION OIL
Row ID: ID__11G0018CP_ContPgHS;
IN STOCK 		$162.47 1
018 11G0019CP
Access Cover - Filter - Clutch Fluid
Row ID: ID__11G0019CP_ContPgHS; 		- 1 Enquire
019 11G0113CP
BEARING COVER-PRIM24Y SHAFT
Row ID: ID__11G0113CP_ContPgHS; 		$192.93 1
020 11G0122CP
BEARING COVER-SECO24ARY SHAFT
Row ID: ID__11G0122CP_ContPgHS; 		$192.93 2
021 11G0171CP
Breather - Transmission
Row ID: ID__11G0171CP_ContPgHS; 		- 1 Enquire
022 12G0272CP
OIL - CLUTCH - PENTOSIN FFL4 - 1 LITRE
Row ID: ID__12G0272CP_ContPgHS; 		- 1 Enquire
022 11Q0765CP
OIL - CLUTCH - PENTOSIN FFL4 - 1 LITRE
Row ID: ID__11Q0765CP_ContPgHS; 		- 8 Enquire
023 13G0055CP
Oil Cooler - Clutch
Row ID: ID__13G0055CP_ContPgHS; 		- 1 Enquire
024 13G0060CP
OIL COOLER-TRANSMI24ION
Row ID: ID__13G0060CP_ContPgHS; 		$345.26 1
025 14GA005CP
MOUNT - TRANSMISSION
Row ID: ID__14GA005CP_ContPgHS; 		- 1 Enquire
026 14G0059CP
HARNESS - TRANSMISSION
Row ID: ID__14G0059CP_ContPgHS; 		- 1 Enquire
027 15GA017CP
TANK ASSY - BREATHER - CLUTCH FLUID
Row ID: ID__15GA017CP_ContPgHS; 		- 1 Enquire
028 15GA026CP
DUAL CLUTCH TRANSMISSION
Row ID: ID__15GA026CP_ContPgHS; 		- 1 Enquire
028 15GA023CP
DUAL CLUTCH TRANSMISSION
Row ID: ID__15GA023CP_ContPgHS; 		- 1 Enquire
028 14GA013CP
DUAL CLUTCH - ASSY
Row ID: ID__14GA013CP_ContPgHS; 		- 1 Enquire
028 14GA014CP
DUAL CLUTCH - ASSY
Row ID: ID__14GA014CP_ContPgHS; 		- 1 Enquire
028 14GA011CP
DUAL CLUTCH TRANSMISSION
Row ID: ID__14GA011CP_ContPgHS; 		- 1 Enquire
029 13G0053CP
ASSY-TRANS OIL PUMP 4.45CC
Row ID: ID__13G0053CP_ContPgHS; 		- 1 Enquire
030 11G0163CP
OUTPUT SHAFT SEAL-LH
Row ID: ID_DEGA0133_11G0163CP_ContPgHS;
IN STOCK 		$71.07 -
031 11G0164CP
Seal - Driveshaft Output - RH
Row ID: ID_DEGA0119_11G0164CP_ContPgHS; 		- - Enquire
032 12G0283CP
GASKET - DCT GEARBOX - HYBRID DRIVE ASSEMBLY
Row ID: ID__12G0283CP_ContPgHS; 		- - Enquire
033 11G0165CP
Seal - Input Shaft - Transmission
Row ID: ID__11G0165CP_ContPgHS; 		- - Enquire
