42 - Interior Systems - 42.13 - Lower & Rear Trim

McLaren Ultimate Series McLaren Senna

Find Your Part

McLaren Ultimate Series McLaren Senna - 42 - INTERIOR SYSTEMS - 42.13 - LOWER & REAR TRIM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

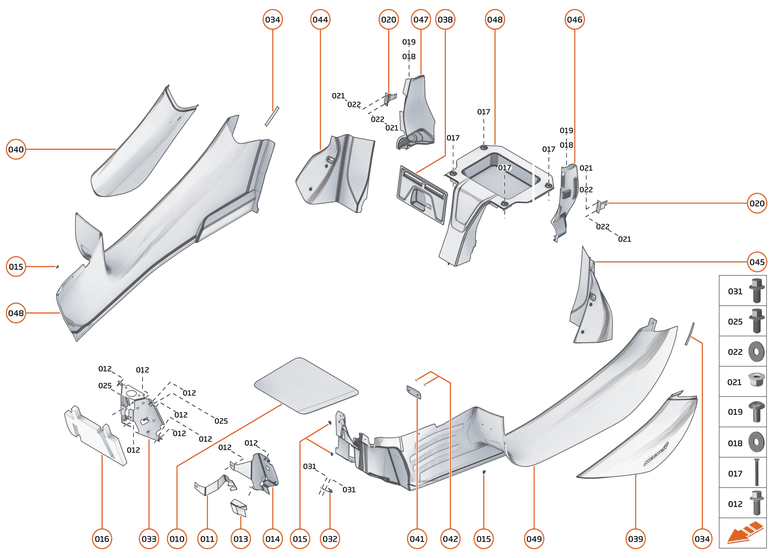

42 - INTERIOR SYSTEMS - 42.13 - LOWER & REAR TRIM of McLaren McLaren Ultimate Series McLaren Senna Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11N3997RP
FOOTWELL PROTECTIVE TAPE - RHD - 675LT
Row ID: ID_EHCL0708_11N3997RP_ContPgHS; 		- 1 Enquire
010 12N0875CP
PROTECTIVE TAPE - FOOTWELL - DRIVER
Row ID: ID_EHCL0701_12N0875CP_ContPgHS; 		- 1 Enquire
011 11N1412CP
BRKT FOOTREST SUPPORT DRIVER
Row ID: ID_EHCL0702_11N1412CP_ContPgHS; 		$165.70 1
012 00RA064
BOLT - M5X12 - HEX
Row ID: ID_XXXXXXZV_00RA064_ContPgHS; 		- 9 Enquire
013 11N0642CP
FOAM-DRIVER FOOTRE24-RHD
Row ID: ID_EHCL0711_11N0642CP_ContPgHS; 		$107.86 2
013 11N0643CP
FOOTREST - FOAM - LHD - DRIVER
Row ID: ID_EHCL0703_11N0643CP_ContPgHS; 		- 2 Enquire
014 11N0984CP
FOOTREST - RHD - DRIVER
Row ID: ID_EHCL0712_11N0984CP_ContPgHS; 		- 1 Enquire
014 11N0975CP
FOOTREST - LHD - DRIVER
Row ID: ID_EHCL0704_11N0975CP_ContPgHS; 		- 1 Enquire
015 00RM006
ANIXTER RIVET - WHITE
Row ID: ID_XXXXXXZZ_00RM006_ContPgHS; 		- 4 Enquire
016 11N2597CP
NVH PAD - PASSENGER FOOTREST - US
Row ID: ID_EHCL0714_11N2597CP_ContPgHS; 		- 1 Enquire
016 11N2596CP
NVH PAD - PASS FOO24EST RHD
Row ID: ID_EHCL0710_11N2596CP_ContPgHS; 		$14.11 1
016 11N2595CP
NVH PAD - PASSENGER FOOTREST - LHD
Row ID: ID_EHCL0706_11N2595CP_ContPgHS; 		- 1 Enquire
017 00RA315
Screw - M4x25 - Countersunk
Row ID: ID_XXXXXXZV_00RA315_ContPgHS; 		- 4 Enquire
018 00RC118
WASHER - M6X14.4X2.4 - BLACK
Row ID: ID_XXXXXXZW_00RC118_ContPgHS; 		- 2 Enquire
019 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK
Row ID: ID_XXXXXXZV_00RA432_ContPgHS; 		- 2 Enquire
020 15NA361CP
BRACKET - BULKHEAD
Row ID: ID_EHCL0707_15NA361CP_ContPgHS; 		- 2 Enquire
021 00RA582
NUT - M5 - HEX
Row ID: ID_XXXXXXZV_00RA582_ContPgHS; 		- 4 Enquire
022 00RC063
Washer - M5x20x1
Row ID: ID_XXXXXXZW_00RC063_ContPgHS; 		- 4 Enquire
025 00RA313
SCREW - M6X16 - HEX - SILVER
Row ID: ID_XXXXXXZV_00RA313_ContPgHS; 		- 2 Enquire
031 00RA087
SCREW - M5X10 - HEX
Row ID: ID_XXXXXXZV_00RA087_ContPgHS; 		- 2 Enquire
032 11N1490CP
FOOTREST - ADAPTOR - US - DRIVER
Row ID: ID_EHCL0715_11N1490CP_ContPgHS; 		- 1 Enquire
033 11N0687CP
FOOTREST - SUPPORT - LHD - PASSENGER
Row ID: ID_EHCL0716_11N0687CP_ContPgHS; 		- 1 Enquire
033 11N0893CP
FOOTREST - SUPPORT - US - PASSENGER
Row ID: ID_EHCL0713_11N0893CP_ContPgHS; 		- 1 Enquire
033 11N0688CP
FOOTREST - SUPPORT - RHD - PASSENGER
Row ID: ID_EHCL0709_11N0688CP_ContPgHS; 		- 1 Enquire
034 11N2976CP
LABEL - CAUTION - DOOR RELEASE - LEATHER STRAP
Row ID: ID_EHCL0717_11N2976CP_ContPgHS; 		- 2 Enquire
035 15NA760CP
FUSEBOX ACCESS PANEL - INTERIOR - REST OF WORLD
Row ID: ID_EHCL0720_15NA760CP_ContPgHS; 		- 1 Enquire
035 15NA863CP
FUSEBOX ACCESS PANEL - INTERIOR - FEDERAL
Superseded parts: 15NA761CP; Row ID: ID_EHCL0718_15NA863CP_ContPgHS; 		- 1 Enquire
038 15NA615CP
ARMATURE - HATCH-SAM - FEDERAL - ACCESS
Row ID: ID_EHCL0719_15NA615CP_ContPgHS; 		- 1 Enquire
039 15NA019MP
MSO SILL COVER - FULL LENGTH - LH RHD
Row ID: ID__15NA019MP_ContPgHS; 		- 1 Enquire
039 15NA017MP
ASSY SILL COVER CF LHD LH
Row ID: ID__15NA017MP_ContPgHS; 		- 1 Enquire
039 14NA730CP
SILL COVER - CARBON - LH
Row ID: ID_EHCL0722_14NA730CP_ContPgHS; 		- 1 Enquire
040 15NA020MP
MSO SILL COVER - FULL LENGTH - RH RHD
Row ID: ID__15NA020MP_ContPgHS; 		- 1 Enquire
040 15NA018MP
ASSY SILL COVER CF LHD RH
Row ID: ID__15NA018MP_ContPgHS; 		- 1 Enquire
040 14NA735CP
SILL COVER - CARBON - RH
Row ID: ID_EHCL0723_14NA735CP_ContPgHS; 		- 1 Enquire
041 15NA027MP
MSO - BRANDING PLATE - INTERIOR
Row ID: ID__15NA027MP_ContPgHS; 		- 1 Enquire
041 15NA381CP
BRANDING PLATE - INTERIOR
Row ID: ID_EHCL0724_15NA381CP_ContPgHS; 		- 1 Enquire
042 00RA368
STARLOCK - DIAMETER 5MM SHAFT - 052675
Row ID: ID_XXXXXXZW_00RA368_ContPgHS; 		- 2 Enquire
043 15NA280CP
BULKHEAD - COVER - CENTRAL
Row ID: ID_EHCL0725_15NA280CP_ContPgHS; 		- 1 Enquire
044 15NA893CP
ASSY B PILLAR FINISHER LWR RH
Superseded parts: 15NA505CP; Row ID: ID_EHCL0726_15NA893CP_ContPgHS; 		- 1 Enquire
045 15NA892CP
ASSY B PILLAR FINISHER LWR LH
Superseded parts: 15NA504CP; Row ID: ID_EHCL0727_15NA892CP_ContPgHS; 		- 1 Enquire
046 15NA358CP
ASSY - BULKHEAD COVER LH
Row ID: ID_EHCL0728_15NA358CP_ContPgHS; 		- 1 Enquire
047 15NA359CP
ASSY - BULKHEAD COVER RH
Row ID: ID_EHCL0729_15NA359CP_ContPgHS; 		- 1 Enquire
048 15NA010MP
CARPET TUB - MSO - RH - LHD
Row ID: ID__15NA010MP_ContPgHS; 		- 1 Enquire
048 15NA008MP
CARPET TUB - MSO - RH - LHD
Row ID: ID__15NA008MP_ContPgHS; 		- 1 Enquire
048 15NA295CP
CARPET - TUB - LHD - LH
Row ID: ID_EHCL0730_15NA295CP_ContPgHS; 		- 1 Enquire
049 15NA011MP
CARPET TUB - MSO - LH - FEDERAL
Row ID: ID__15NA011MP_ContPgHS; 		- 1 Enquire
049 15NA009MP
CARPET TUB - MSO - LH - LHD
Row ID: ID__15NA009MP_ContPgHS; 		- 1 Enquire
049 15NA007MP
CARPET TUB - MSO - LH - LHD
Row ID: ID__15NA007MP_ContPgHS; 		- 1 Enquire
049 15NA226CP
CARPET - TUB - LHD - LH
Row ID: ID_EHCL0731_15NA226CP_ContPgHS; 		- 1 Enquire
