McLaren Ultimate Series McLaren P1 Coupe - 14 - HVAC - 14.1 - HVAC INLET AND DISTRIBUTION

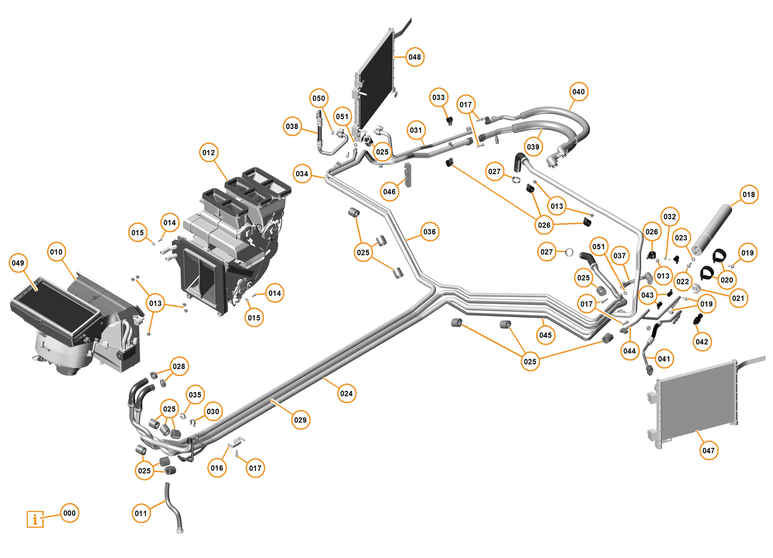

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11A4261CP	PRESSURE SENSOR-HV24	$428.27	To Order
	00RB130	CLIP - SPRING BAND - 22/12	Enquire	To Order
	00RC075	WASHER - NYLON - 14.35X6.45X2.39	Enquire	To Order

...and 8 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	11A5949CP	UNIT-HVAC INLET 24	$1,812.72	To Order

Photo	Part No	Description	Price (each)	Stock
	11A2252CP	Drain Tube - HVAC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A9213CP	Distribution Unit - HVAC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA369	SCREW - PLAS TECH - M6X16MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA075	NUT - M8-8 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A4434CP	CLAMP PLATE - HVAC EVAPORATOR CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA120	SCREW - M6X25 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A2757CP	RECEIVER DRIER - HVAC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA061	Screw - M6x16 - Flange Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB029	P CLIP - DIA 45-M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A4433CP	CLAMP PLATE - RECEIVER DRIER - HVAC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA002	BOLT - M8X20 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC038	WASHER - WAVE M8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A2498CP	Hose - Heater to Pump - HVAC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA367	PIPE PROTECTOR - 19MM ID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB060	P CLIP - DIA 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB137	HOSE CLAMP - 28.6 - 706R - OETIKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB130	CLIP - SPRING BAND - 22/12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A2496CP	Hose - Heater to Engine - HVAC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB007	CLIP - 18-20MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A2542CP	Hose Assy - Compressor to Condenser - Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA083	SCREW - M6X20 - FLANGE HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB027	P-CLIP - DIAMETER 13 - M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A2494CP	Hose Assy - Compressor to HVAC Unit - Longitudinal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB008	CLIP - 18-20MM - MALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A2500CP	Hose Assy - Condenser - Lateral	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A2544CP	Hose - Condenser to Lateral Pipe - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A2545CP	Hose - Condenser to Lateral Pipe - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A2546CP	Hose - Compressor - Rear - HVAC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A2547CP	Hose - Compressor - Front - HVAC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A2965CP	Hose - Condenser to Receiver Drier - HVAC - inc. Pressure Sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A6627CP	SENSOR - PRESSURE - HVAC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB098	P-CLIP - DIA 10 - SILICONE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A2751CP	Hose Assy - Receiver Drier to - Longitudinal Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A2492CP	Hose Assy - Receiver Drier to HVAC Unit - Longitudinal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12L0225CP	Clip - 4 Way - Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A0822CP	CONDENSER - HVAC - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A0875CP	CONDENSER - HVAC - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A4152CP	HVAC CABIN AIR FILTER	$81.22	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12AA108CP	O-RING ID9.19 X THK2.62	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12AA109CP	O-RING ID6.7 X THK1.8	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	11A4261CP	PRESSURE SENSOR-HV24	11A4261CP PRESSURE SENSOR-HV24 Row ID: ID_BCAS0171_11A4261CP_ContPgHS;	$428.27	1
000	00RB130	CLIP - SPRING BAND - 22/12	00RB130 CLIP - SPRING BAND - 22/12 Row ID: ID_BCAS0170_00RB130_ContPgHS;	-	4	Enquire
000	00RC075	WASHER - NYLON - 14.35X6.45X2.39	00RC075 WASHER - NYLON - 14.35X6.45X2.39 Row ID: ID_BCAS0169_00RC075_ContPgHS;	-	2	Enquire
000	11A4857CP	HVAC-COVER-FLAP MOTOR	11A4857CP HVAC-COVER-FLAP MOTOR Row ID: ID_BCAS0167_11A4857CP_ContPgHS;	$30.46	1
000	11A4141CP	Pipe - Venturi to Sensor - HVAC	11A4141CP Pipe - Venturi to Sensor - HVAC Row ID: ID_BCAS0166_11A4141CP_ContPgHS;	-	1	Enquire
000	11A4138CP	Sensor - Cabin Temp - HVAC	11A4138CP Sensor - Cabin Temp - HVAC Row ID: ID_BCAS0164_11A4138CP_ContPgHS;	-	1	Enquire
000	11A4151CP	HVAC DUCT FACIA SEAL SET	11A4151CP HVAC DUCT FACIA SEAL SET Row ID: ID_BCAS0156_11A4151CP_ContPgHS;	$71.07	1
000	11A4150CP	HVAC BULKHEAD SEAL24IST UNIT	11A4150CP HVAC BULKHEAD SEAL24IST UNIT Row ID: ID_BCAS0155_11A4150CP_ContPgHS;	$101.53	1
000	11A4149CP	HVAC BULKHEAD SEAL INTAKE UNIT	11A4149CP HVAC BULKHEAD SEAL INTAKE UNIT Row ID: ID_BCAS0154_11A4149CP_ContPgHS;	$101.53	1
000	11A4153CP	HVAC FAN AND MODULE	11A4153CP HVAC FAN AND MODULE Row ID: ID_BCAS0142_11A4153CP_ContPgHS;	$704.93	1
000	00RA366	PIPE PROTECTOR - 13MM ID	00RA366 PIPE PROTECTOR - 13MM ID Row ID: ID_BCAS0141_00RA366_ContPgHS;	-	1	Enquire
010	11A5949CP	UNIT-HVAC INLET 24	11A5949CP UNIT-HVAC INLET 24 Row ID: ID_BCAS0101_11A5949CP_ContPgHS;	$1,812.72	1
011	11A2252CP	Drain Tube - HVAC	11A2252CP Drain Tube - HVAC Row ID: ID_BCAS0102_11A2252CP_ContPgHS;	-	1	Enquire
012	11A9213CP	Distribution Unit - HVAC	11A9213CP Distribution Unit - HVAC Row ID: ID_BCAS0103_11A9213CP_ContPgHS;	-	1	Enquire
013	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID_BCAS0104_00RA055_ContPgHS;	-	9	Enquire
014	00RA369	SCREW - PLAS TECH - M6X16MM	00RA369 SCREW - PLAS TECH - M6X16MM Row ID: ID_BCAS0105_00RA369_ContPgHS;	-	2	Enquire
015	00RA075	NUT - M8-8 - HEX	00RA075 NUT - M8-8 - HEX Row ID: ID_BCAS0106_00RA075_ContPgHS;	-	6	Enquire
016	11A4434CP	CLAMP PLATE - HVAC EVAPORATOR CONNECTION	11A4434CP CLAMP PLATE - HVAC EVAPORATOR CONNECTION Row ID: ID_BCAS0107_11A4434CP_ContPgHS;	-	1	Enquire
017	00RA120	SCREW - M6X25 - HEX	00RA120 SCREW - M6X25 - HEX Row ID: ID_BCAS0108_00RA120_ContPgHS;	-	6	Enquire
018	12A2757CP	RECEIVER DRIER - HVAC	12A2757CP RECEIVER DRIER - HVAC Row ID: ID_BCAS0109_12A2757CP_ContPgHS;	-	1	Enquire
019	00RA061	Screw - M6x16 - Flange Hex	00RA061 Screw - M6x16 - Flange Hex Row ID: ID_BCAS0110_00RA061_ContPgHS;	-	3	Enquire
020	00RB029	P CLIP - DIA 45-M6	00RB029 P CLIP - DIA 45-M6 Row ID: ID_BCAS0111_00RB029_ContPgHS;	-	2	Enquire
021	11A4433CP	CLAMP PLATE - RECEIVER DRIER - HVAC	11A4433CP CLAMP PLATE - RECEIVER DRIER - HVAC Row ID: ID_BCAS0112_11A4433CP_ContPgHS;	-	1	Enquire
022	00RA002	BOLT - M8X20 - HEX	00RA002 BOLT - M8X20 - HEX Row ID: ID_BCAS0113_00RA002_ContPgHS;	-	1	Enquire
023	00RC038	WASHER - WAVE M8	00RC038 WASHER - WAVE M8 Row ID: ID_BCAS0114_00RC038_ContPgHS;	-	1	Enquire
024	12A2498CP	Hose - Heater to Pump - HVAC	12A2498CP Hose - Heater to Pump - HVAC Row ID: ID_BCAS0115_12A2498CP_ContPgHS;	-	1	Enquire
025	00RA367	PIPE PROTECTOR - 19MM ID	00RA367 PIPE PROTECTOR - 19MM ID Row ID: ID_BCAS0116_00RA367_ContPgHS;	-	14	Enquire
026	00RB060	P CLIP - DIA 20	00RB060 P CLIP - DIA 20 Row ID: ID_BCAS0117_00RB060_ContPgHS;	-	3	Enquire
027	00RB137	HOSE CLAMP - 28.6 - 706R - OETIKER	00RB137 HOSE CLAMP - 28.6 - 706R - OETIKER Row ID: ID_BCAS0118_00RB137_ContPgHS;	-	2	Enquire
028	00RB130	CLIP - SPRING BAND - 22/12	00RB130 CLIP - SPRING BAND - 22/12 Row ID: ID_BCAS0119_00RB130_ContPgHS;	-	2	Enquire
029	12A2496CP	Hose - Heater to Engine - HVAC	12A2496CP Hose - Heater to Engine - HVAC Row ID: ID_BCAS0120_12A2496CP_ContPgHS;	-	1	Enquire
030	00RB007	CLIP - 18-20MM - FEMALE	00RB007 CLIP - 18-20MM - FEMALE Row ID: ID_BCAS0121_00RB007_ContPgHS;	-	1	Enquire
031	12A2542CP	Hose Assy - Compressor to Condenser - Front	12A2542CP Hose Assy - Compressor to Condenser - Front Row ID: ID_BCAS0122_12A2542CP_ContPgHS;	-	1	Enquire
032	00RA083	SCREW - M6X20 - FLANGE HEX	00RA083 SCREW - M6X20 - FLANGE HEX Row ID: ID_BCAS0123_00RA083_ContPgHS;	-	2	Enquire
033	00RB027	P-CLIP - DIAMETER 13 - M6	00RB027 P-CLIP - DIAMETER 13 - M6 Row ID: ID_BCAS0124_00RB027_ContPgHS;	-	1	Enquire
034	12A2494CP	Hose Assy - Compressor to HVAC Unit - Longitudinal	12A2494CP Hose Assy - Compressor to HVAC Unit - Longitudinal Row ID: ID_BCAS0125_12A2494CP_ContPgHS;	-	1	Enquire
035	00RB008	CLIP - 18-20MM - MALE	00RB008 CLIP - 18-20MM - MALE Row ID: ID_BCAS0126_00RB008_ContPgHS;	-	1	Enquire
036	12A2500CP	Hose Assy - Condenser - Lateral	12A2500CP Hose Assy - Condenser - Lateral Row ID: ID_BCAS0127_12A2500CP_ContPgHS;	-	1	Enquire
037	12A2544CP	Hose - Condenser to Lateral Pipe - LH	12A2544CP Hose - Condenser to Lateral Pipe - LH Row ID: ID_BCAS0128_12A2544CP_ContPgHS;	-	1	Enquire
038	12A2545CP	Hose - Condenser to Lateral Pipe - RH	12A2545CP Hose - Condenser to Lateral Pipe - RH Row ID: ID_BCAS0129_12A2545CP_ContPgHS;	-	1	Enquire
039	12A2546CP	Hose - Compressor - Rear - HVAC	12A2546CP Hose - Compressor - Rear - HVAC Row ID: ID_BCAS0130_12A2546CP_ContPgHS;	-	1	Enquire
040	12A2547CP	Hose - Compressor - Front - HVAC	12A2547CP Hose - Compressor - Front - HVAC Row ID: ID_BCAS0131_12A2547CP_ContPgHS;	-	1	Enquire
041	12A2965CP	Hose - Condenser to Receiver Drier - HVAC - inc. Pressure Sensor	12A2965CP Hose - Condenser to Receiver Drier - HVAC - inc. Pressure Sensor Row ID: ID_BCAS0132_12A2965CP_ContPgHS;	-	1	Enquire
042	11A6627CP	SENSOR - PRESSURE - HVAC	11A6627CP SENSOR - PRESSURE - HVAC Row ID: ID_BCAS0133_11A6627CP_ContPgHS;	-	1	Enquire
043	00RB098	P-CLIP - DIA 10 - SILICONE	00RB098 P-CLIP - DIA 10 - SILICONE Row ID: ID_BCAS0134_00RB098_ContPgHS;	-	3	Enquire
044	12A2751CP	Hose Assy - Receiver Drier to - Longitudinal Pipe	12A2751CP Hose Assy - Receiver Drier to - Longitudinal Pipe Row ID: ID_BCAS0135_12A2751CP_ContPgHS;	-	1	Enquire
045	12A2492CP	Hose Assy - Receiver Drier to HVAC Unit - Longitudinal	12A2492CP Hose Assy - Receiver Drier to HVAC Unit - Longitudinal Row ID: ID_BCAS0136_12A2492CP_ContPgHS;	-	1	Enquire
046	12L0225CP	Clip - 4 Way - Rear	12L0225CP Clip - 4 Way - Rear Row ID: ID_BCAS0137_12L0225CP_ContPgHS;	-	1	Enquire
047	12A0822CP	CONDENSER - HVAC - LH	12A0822CP CONDENSER - HVAC - LH Row ID: ID_BCAS0138_12A0822CP_ContPgHS;	-	1	Enquire
048	12A0875CP	CONDENSER - HVAC - RH	12A0875CP CONDENSER - HVAC - RH Row ID: ID_BCAS0139_12A0875CP_ContPgHS;	-	1	Enquire
049	11A4152CP	HVAC CABIN AIR FILTER IN STOCK	11A4152CP HVAC CABIN AIR FILTER Row ID: ID_BCAS0140_11A4152CP_ContPgHS; IN STOCK	$81.22	1
050	12AA108CP	O-RING ID9.19 X THK2.62	12AA108CP O-RING ID9.19 X THK2.62 Row ID: ID__12AA108CP_ContPgHS;	-	1	Enquire
051	12AA109CP	O-RING ID6.7 X THK1.8	12AA109CP O-RING ID6.7 X THK1.8 Row ID: ID__12AA109CP_ContPgHS;	-	1	Enquire
