McLaren Ultimate Series McLaren Elva - 33 - REAR AXLE - 33.1 - TRANSMISSION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11SA022CP INPUT SHAFT SEAL PRESS TOOL $113.36 To Order
Photo Part No Description Price (each) Stock
00RA202 BLT-HX HD-FL-M10X1.5X135-10.9-72 Enquire To Order
Photo Part No Description Price (each) Stock
00RA269 NUT - M10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA559 BOLT - HEX HEAD - M10X1.5X40 Enquire To Order
Photo Part No Description Price (each) Stock
11G0089CP SCREW ADJUSTER - TRANSMISSION $67.44 To Order
Photo Part No Description Price (each) Stock
11G0090CP NUT - SCREW ADJUSTER - TRANSMISSION $73.69 To Order
Photo Part No Description Price (each) Stock
11G0092CP SHOULDER BOLT-HEX HD-M14 - 16 X 123 - BOLT- SCREW ADJUSTER - TRANSMISSION $167.94 To Order
Photo Part No Description Price (each) Stock
11G0017CP Filter - Clutch Fluid $98.61 IN STOCK
Photo Part No Description Price (each) Stock
11G0018CP Filter - Transmission Oil $162.46 IN STOCK
Photo Part No Description Price (each) Stock
11G0019CP Access Cover - Filter - Clutch Fluid $150.78 To Order
Photo Part No Description Price (each) Stock
11G0113CP Bearing Cover - Transmission Primary Shaft $188.09 To Order
Photo Part No Description Price (each) Stock
11G0122CP Bearing Cover - Transmission Secondary Shaft $186.61 To Order
Photo Part No Description Price (each) Stock
11G0171CP Breather - Transmission $33.98 To Order
Photo Part No Description Price (each) Stock
13G0055CP Oil Clutch Cooler - 25 Bar $340.37 To Order
Photo Part No Description Price (each) Stock
13G0060CP Oil Cooler - Transmission $332.90 To Order
Photo Part No Description Price (each) Stock
14GA005CP MOUNT - TRANSMISSION $343.35 To Order
Photo Part No Description Price (each) Stock
15GA022CP HARNESS TRANSMISSION EXTERNAL Enquire To Order
Photo Part No Description Price (each) Stock
15GA017CP TANK ASSY - BREATHER - CLUTCH FLUID Enquire To Order
14GA025CP CLUTCH BREATHER TANK DCT Enquire To Order
Photo Part No Description Price (each) Stock
15GA026CP DUAL CLUTCH TRANSMISSION Enquire To Order
Photo Part No Description Price (each) Stock
13G0053CP ASSY-CLUTCH CONTROL VALVEBLOCK Enquire To Order
Photo Part No Description Price (each) Stock
12G0283CP GASKET - DCT GEARBOX - HYBRID DRIVE ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
12G0283CP GASKET - DCT GEARBOX - HYBRID DRIVE ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
11G0165CP SEAL - INPUT SHAFT - TRANSMISSION $70.51 To Order
View All

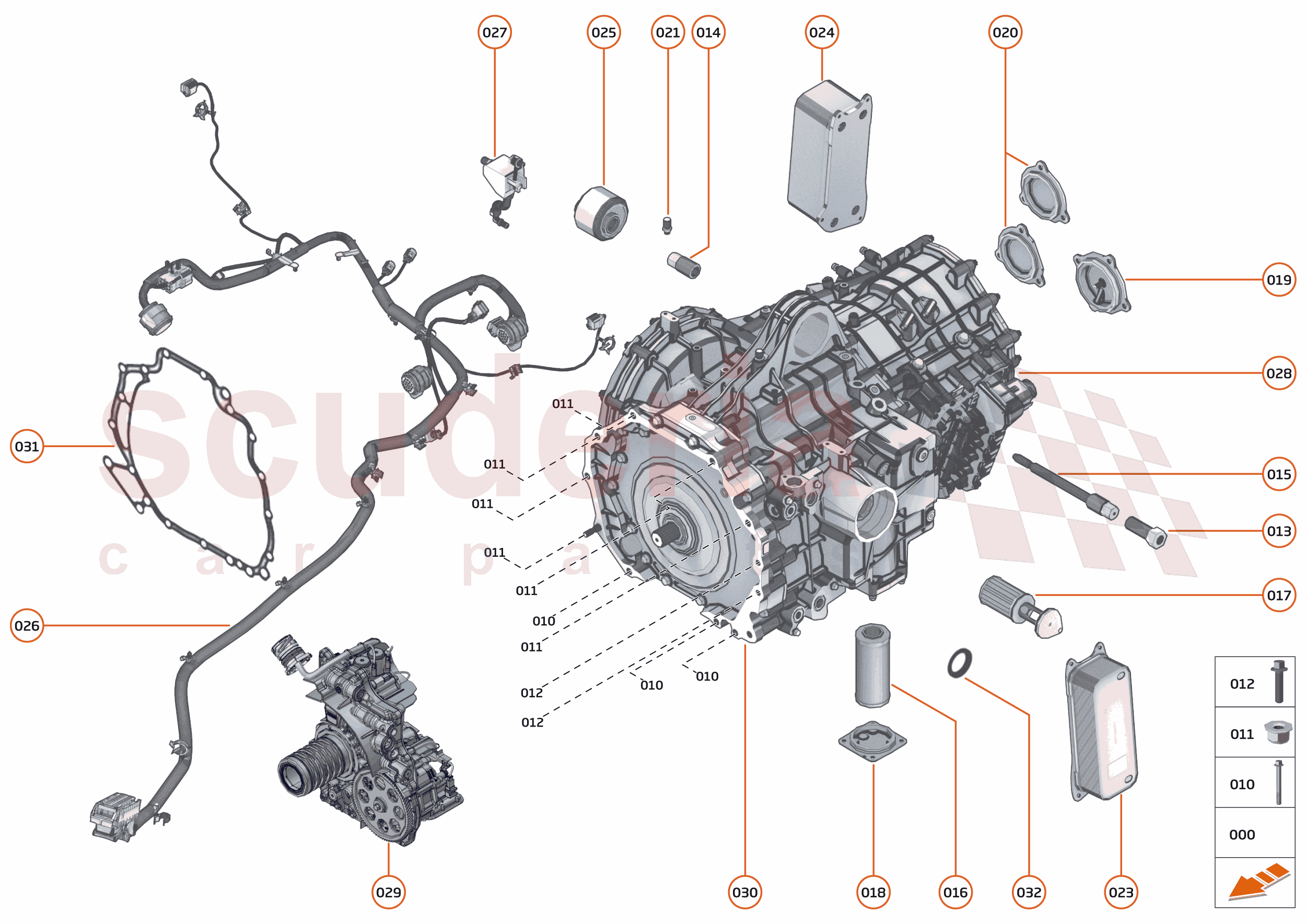

33 - REAR AXLE - 33.1 - TRANSMISSION of McLaren McLaren Ultimate Series McLaren Elva Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11SA022CP
INPUT SHAFT SEAL PRESS TOOL
Row ID: ID__11SA022CP_ContPgHS; 		$113.36 1
010 00RA202
BLT-HX HD-FL-M10X1.5X135-10.9-72
Row ID: ID__00RA202_ContPgHS; 		- 3 Enquire
011 00RA269
NUT - M10 - HEX
Row ID: ID__00RA269_ContPgHS; 		- 6 Enquire
012 00RA559
BOLT - HEX HEAD - M10X1.5X40
Row ID: ID__00RA559_ContPgHS; 		- 2 Enquire
013 11G0089CP
SCREW ADJUSTER - TRANSMISSION
Row ID: ID__11G0089CP_ContPgHS; 		$67.44 1
014 11G0090CP
NUT - SCREW ADJUSTER - TRANSMISSION
Row ID: ID__11G0090CP_ContPgHS; 		$73.69 1
015 11G0092CP
SHOULDER BOLT-HEX HD-M14 - 16 X 123 - BOLT- SCREW ADJUSTER - TRANSMISSION
Row ID: ID__11G0092CP_ContPgHS; 		$167.94 1
016 11G0017CP
Filter - Clutch Fluid
Row ID: ID__11G0017CP_ContPgHS;
IN STOCK 		$98.61 1
017 11G0018CP
Filter - Transmission Oil
Row ID: ID__11G0018CP_ContPgHS;
IN STOCK 		$162.46 1
018 11G0019CP
Access Cover - Filter - Clutch Fluid
Row ID: ID__11G0019CP_ContPgHS; 		$150.78 1
019 11G0113CP
Bearing Cover - Transmission Primary Shaft
Row ID: ID__11G0113CP_ContPgHS; 		$188.09 1
020 11G0122CP
Bearing Cover - Transmission Secondary Shaft
Row ID: ID__11G0122CP_ContPgHS; 		$186.61 2
021 11G0171CP
Breather - Transmission
Row ID: ID__11G0171CP_ContPgHS; 		$33.98 1
022 11Q0765CP
OIL - CLUTCH - PENTOSIN FFL4 - 1 LITRE
Row ID: ID__11Q0765CP_ContPgHS; 		$29.80 7
023 13G0055CP
Oil Clutch Cooler - 25 Bar
Row ID: ID__13G0055CP_ContPgHS; 		$340.37 1
024 13G0060CP
Oil Cooler - Transmission
Row ID: ID__13G0060CP_ContPgHS; 		$332.90 1
025 14GA005CP
MOUNT - TRANSMISSION
Row ID: ID__14GA005CP_ContPgHS; 		$343.35 1
026 15GA022CP
HARNESS TRANSMISSION EXTERNAL
Row ID: ID__15GA022CP_ContPgHS; 		- 1 Enquire
027 15GA017CP
TANK ASSY - BREATHER - CLUTCH FLUID
Row ID: ID__15GA017CP_ContPgHS; 		- 1 Enquire
027 14GA025CP
CLUTCH BREATHER TANK DCT
Row ID: ID__14GA025CP_ContPgHS; 		- 1 Enquire
028 15GA026CP
DUAL CLUTCH TRANSMISSION
Row ID: ID__15GA026CP_ContPgHS; 		- 1 Enquire
029 13G0053CP
ASSY-CLUTCH CONTROL VALVEBLOCK
Row ID: ID__13G0053CP_ContPgHS; 		- 1 Enquire
030 12G0283CP
GASKET - DCT GEARBOX - HYBRID DRIVE ASSEMBLY
Row ID: ID__12G0283CP_ContPgHS; 		- 1 Enquire
031 12G0283CP
GASKET - DCT GEARBOX - HYBRID DRIVE ASSEMBLY
Row ID: ID__12G0283CP_ContPgHS; 		- 1 Enquire
032 11G0165CP
SEAL - INPUT SHAFT - TRANSMISSION
Row ID: ID__11G0165CP_ContPgHS; 		$70.51 1
