29 - COOLING SYSTEM - 29.6 - HYBRID COOLING CIRCUIT & PIPES of McLaren McLaren Ultimate Series McLaren Speedtail

View All

McLaren Ultimate Series McLaren Speedtail - 29 - COOLING SYSTEM - 29.6 - HYBRID COOLING CIRCUIT & PIPES

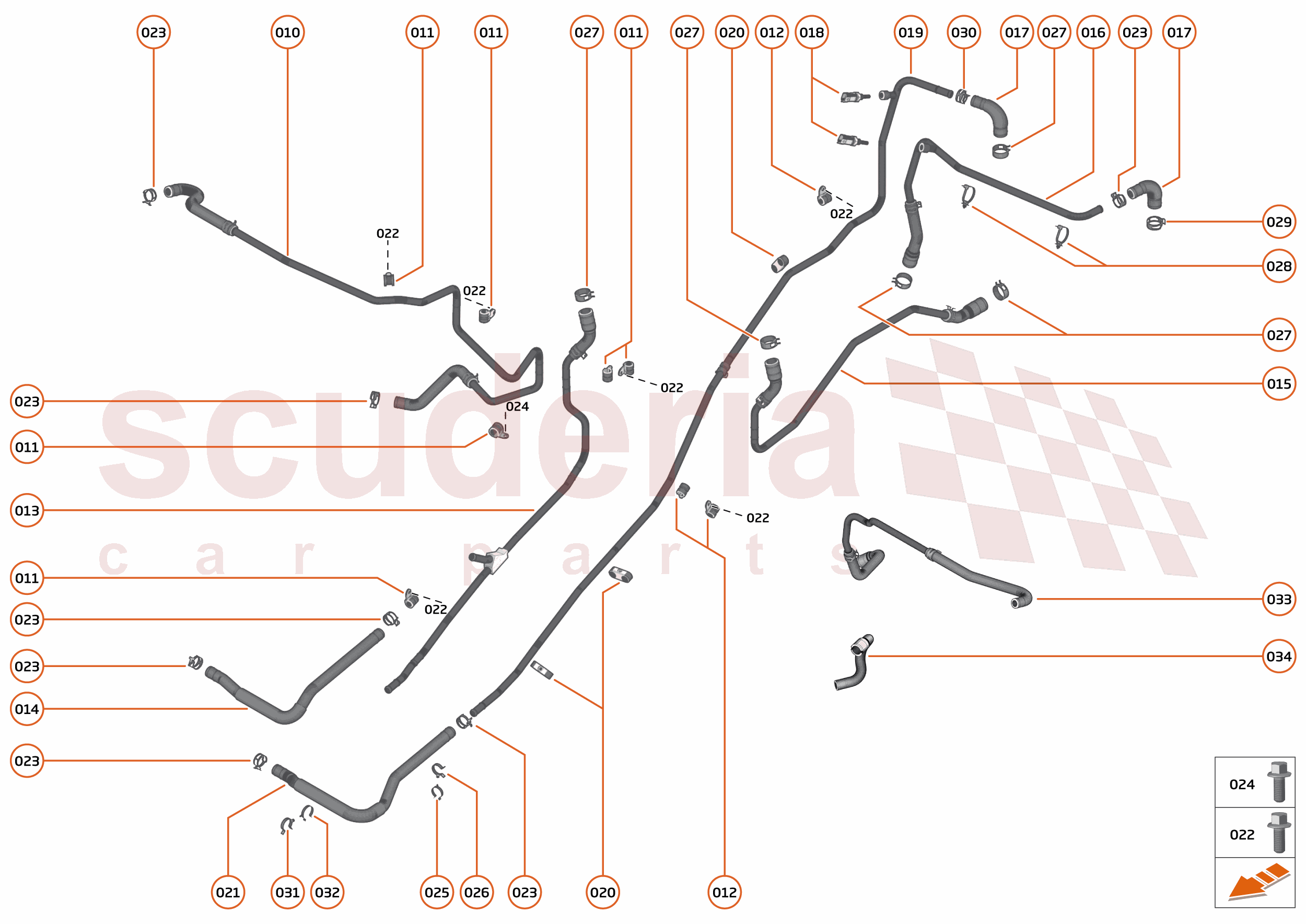

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	23LA086CP	MCU TO E-MOTOR-MTR CIRCUIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB003	P Clip - DIA 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB191	P-Clip - 14x15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23LA076CP	BATT TO CLTHCLLR-MTR CIRCUIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23LA131CP	PIPE BATT COOLER WEG OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23LA081CP	CLTHCLLR TO PUMP-MTR CIRCUIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23LA083CP	PUMP TO RAD-MTR CIRCUIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23LA315CP	HOSE-RAD TO PIPE-MTR CIRCUIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11L0247CP	SENSOR - COOLANT TEMPERATURE - ENGINE	$114.21	To Order

Photo	Part No	Description	Price (each)	Stock
	23LA085CP	RAD TO BATT-MTR CIRCUIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB131	HOSE SEPERATOR PHS6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23LA130CP	PIPE BATT COOLER WEG INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA061	Screw - M6x16 - Flange Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB201	CLAMP - SPRING BAND - 21X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RX001	Bolt - M5x16 - Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB008	CLIP - 18-20MM - MALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB007	CLIP - 18-20MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB145	CLAMP - SPRING BAND - 26/12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL001	CABLE TIE - FIRTREE BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB233	CLMP-SPRGBAND-LO PRO-25X12-STL-ZFB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB130	CLIP - SPRING BAND - 22/12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG020	SWIVEL CLIP - 20-24.5MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG018	SWIVEL CLIP - 22-24MM -MALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23LA328CP	ASSY-PIPE-PUMP TO MCU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23LA385CP	MCU TO E-MOTOR- BY-PASS VALVE-HOSE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	23LA086CP	MCU TO E-MOTOR-MTR CIRCUIT	23LA086CP MCU TO E-MOTOR-MTR CIRCUIT Row ID: ID__23LA086CP_ContPgHS;	-	1	Enquire
011	00RB003	P Clip - DIA 14	00RB003 P Clip - DIA 14 Row ID: ID__00RB003_ContPgHS;	-	3	Enquire
012	00RB191	P-Clip - 14x15	00RB191 P-Clip - 14x15 Row ID: ID__00RB191_ContPgHS;	-	3	Enquire
013	23LA076CP	BATT TO CLTHCLLR-MTR CIRCUIT	23LA076CP BATT TO CLTHCLLR-MTR CIRCUIT Row ID: ID__23LA076CP_ContPgHS;	-	1	Enquire
014	23LA131CP	PIPE BATT COOLER WEG OUTLET	23LA131CP PIPE BATT COOLER WEG OUTLET Row ID: ID__23LA131CP_ContPgHS;	-	1	Enquire
015	23LA081CP	CLTHCLLR TO PUMP-MTR CIRCUIT	23LA081CP CLTHCLLR TO PUMP-MTR CIRCUIT Row ID: ID__23LA081CP_ContPgHS;	-	1	Enquire
016	23LA083CP	PUMP TO RAD-MTR CIRCUIT	23LA083CP PUMP TO RAD-MTR CIRCUIT Row ID: ID__23LA083CP_ContPgHS;	-	1	Enquire
017	23LA315CP	HOSE-RAD TO PIPE-MTR CIRCUIT	23LA315CP HOSE-RAD TO PIPE-MTR CIRCUIT Row ID: ID__23LA315CP_ContPgHS;	-	2	Enquire
018	11L0247CP	SENSOR - COOLANT TEMPERATURE - ENGINE	11L0247CP SENSOR - COOLANT TEMPERATURE - ENGINE Row ID: ID__11L0247CP_ContPgHS;	$114.21	2
019	23LA085CP	RAD TO BATT-MTR CIRCUIT	23LA085CP RAD TO BATT-MTR CIRCUIT Row ID: ID__23LA085CP_ContPgHS;	-	1	Enquire
020	00RB131	HOSE SEPERATOR PHS6	00RB131 HOSE SEPERATOR PHS6 Row ID: ID__00RB131_ContPgHS;	-	3	Enquire
021	23LA130CP	PIPE BATT COOLER WEG INLET	23LA130CP PIPE BATT COOLER WEG INLET Row ID: ID__23LA130CP_ContPgHS;	-	1	Enquire
022	00RA061	Screw - M6x16 - Flange Hex	00RA061 Screw - M6x16 - Flange Hex Row ID: ID__00RA061_ContPgHS;	-	2	Enquire
023	00RB201	CLAMP - SPRING BAND - 21X12	00RB201 CLAMP - SPRING BAND - 21X12 Row ID: ID__00RB201_ContPgHS;	-	2	Enquire
024	00RX001	Bolt - M5x16 - Hex	00RX001 Bolt - M5x16 - Hex Row ID: ID__00RX001_ContPgHS;	-	1	Enquire
025	00RB008	CLIP - 18-20MM - MALE	00RB008 CLIP - 18-20MM - MALE Row ID: ID__00RB008_ContPgHS;	-	1	Enquire
026	00RB007	CLIP - 18-20MM - FEMALE	00RB007 CLIP - 18-20MM - FEMALE Row ID: ID__00RB007_ContPgHS;	-	1	Enquire
027	00RB145	CLAMP - SPRING BAND - 26/12	00RB145 CLAMP - SPRING BAND - 26/12 Row ID: ID__00RB145_ContPgHS;	-	5	Enquire
028	00RL001	CABLE TIE - FIRTREE BASE	00RL001 CABLE TIE - FIRTREE BASE Row ID: ID__00RL001_ContPgHS;	-	2	Enquire
029	00RB233	CLMP-SPRGBAND-LO PRO-25X12-STL-ZFB	00RB233 CLMP-SPRGBAND-LO PRO-25X12-STL-ZFB Row ID: ID__00RB233_ContPgHS;	-	1	Enquire
030	00RB130	CLIP - SPRING BAND - 22/12	00RB130 CLIP - SPRING BAND - 22/12 Row ID: ID__00RB130_ContPgHS;	-	1	Enquire
031	00RG020	SWIVEL CLIP - 20-24.5MM - FEMALE	00RG020 SWIVEL CLIP - 20-24.5MM - FEMALE Row ID: ID__00RG020_ContPgHS;	-	1	Enquire
032	00RG018	SWIVEL CLIP - 22-24MM -MALE	00RG018 SWIVEL CLIP - 22-24MM -MALE Row ID: ID__00RG018_ContPgHS;	-	1	Enquire
033	23LA328CP	ASSY-PIPE-PUMP TO MCU	23LA328CP ASSY-PIPE-PUMP TO MCU Row ID: ID__23LA328CP_ContPgHS;	-	1	Enquire
034	23LA385CP	MCU TO E-MOTOR- BY-PASS VALVE-HOSE	23LA385CP MCU TO E-MOTOR- BY-PASS VALVE-HOSE Row ID: ID__23LA385CP_ContPgHS;	-	1	Enquire
