30 - FUEL SYSTEM - 30.2 - FUEL TANK RETENTION of McLaren McLaren Ultimate Series McLaren Senna GTR

View All

McLaren Ultimate Series McLaren Senna GTR - 30 - FUEL SYSTEM - 30.2 - FUEL TANK RETENTION

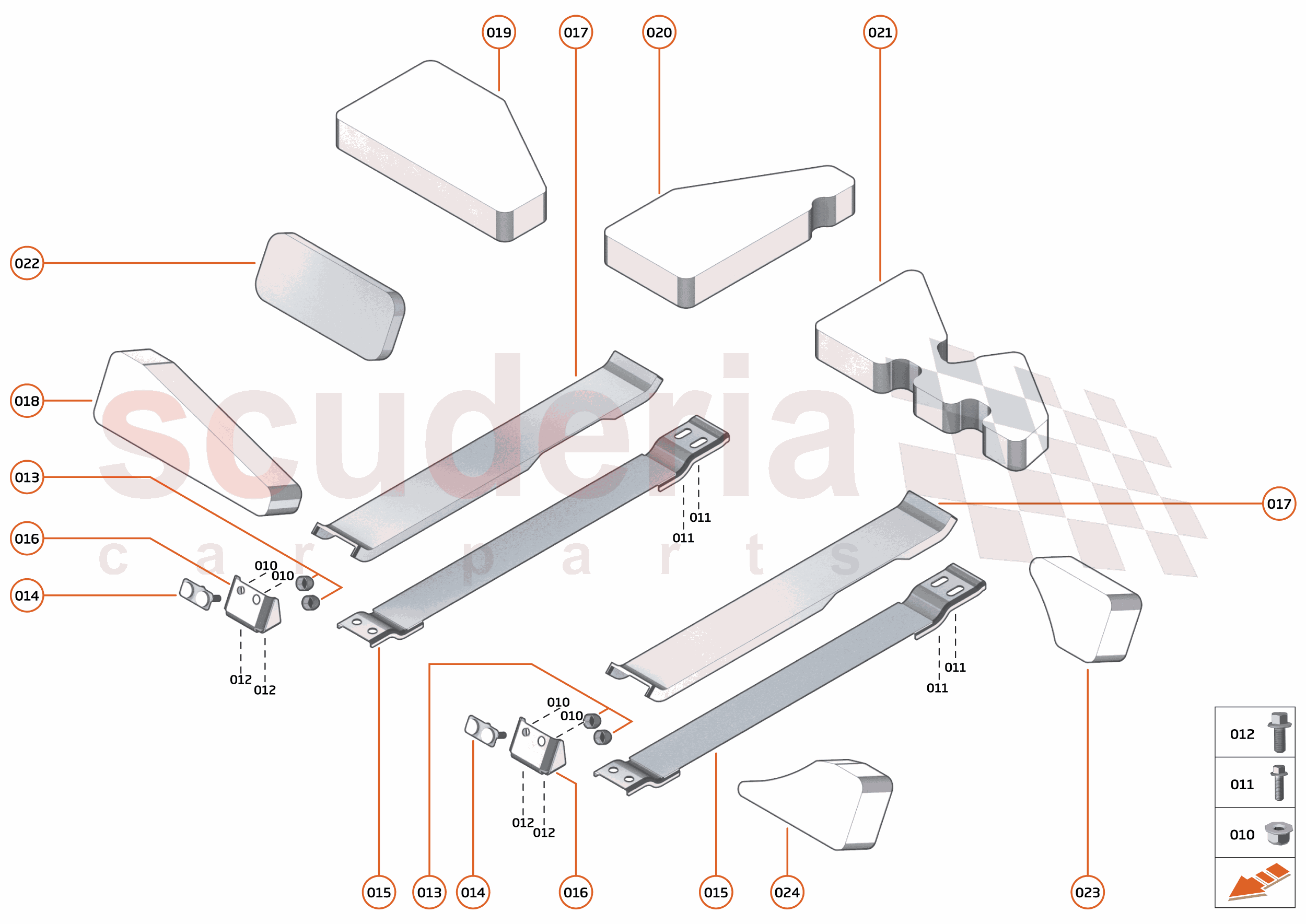

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA120	SCREW - M6X25 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA313	Screw - M6x16 - Hex - Silver	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG010	Nut Protector - M6 -Reevite	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11K0105CP	Stud Plate - M6x18 - Fuel Tank	$29.35	To Order

Photo	Part No	Description	Price (each)	Stock
	14K0068CP	STRAP-FUEL TANK MOUNTING	$82.97	To Order

Photo	Part No	Description	Price (each)	Stock
	14KA024CP	BRACKET - FUEL TANK - LOWER - FRONT	$33.05	To Order

Photo	Part No	Description	Price (each)	Stock
	14KA046CP	MOUNTING STRAP - MOULDED - FUEL TANK	$13.45	To Order

Photo	Part No	Description	Price (each)	Stock
	14K0143CP	FUEL CELL-BULKHEAD-PAD-LWR-RH	$8.59	To Order

Photo	Part No	Description	Price (each)	Stock
	15KA017RP	FUEL CELL - PAD - TOP RIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15KA018RP	FUEL CELL - PAD - TOP CENTRE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15KA019RP	FUEL CELL - PAD - TOP LEFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15KA020RP	FUEL CELL - BULKHEAD - PAD - U	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15KA021RP	FUEL CELL - BULKHEAD - PAD - U	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15KA022RP	FUEL CELL - BULKHEAD - PAD - L	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS;	-	4	Enquire
011	00RA120	SCREW - M6X25 - HEX	00RA120 SCREW - M6X25 - HEX Row ID: ID__00RA120_ContPgHS;	-	4	Enquire
012	00RA313	Screw - M6x16 - Hex - Silver	00RA313 Screw - M6x16 - Hex - Silver Row ID: ID__00RA313_ContPgHS;	-	4	Enquire
013	00RG010	Nut Protector - M6 -Reevite	00RG010 Nut Protector - M6 -Reevite Row ID: ID__00RG010_ContPgHS;	-	4	Enquire
014	11K0105CP	Stud Plate - M6x18 - Fuel Tank	11K0105CP Stud Plate - M6x18 - Fuel Tank Row ID: ID__11K0105CP_ContPgHS;	$29.35	2
015	14K0068CP	STRAP-FUEL TANK MOUNTING	14K0068CP STRAP-FUEL TANK MOUNTING Row ID: ID__14K0068CP_ContPgHS;	$82.97	2
016	14KA024CP	BRACKET - FUEL TANK - LOWER - FRONT	14KA024CP BRACKET - FUEL TANK - LOWER - FRONT Row ID: ID__14KA024CP_ContPgHS;	$33.05	2
017	14KA046CP	MOUNTING STRAP - MOULDED - FUEL TANK	14KA046CP MOUNTING STRAP - MOULDED - FUEL TANK Row ID: ID__14KA046CP_ContPgHS;	$13.45	1
018	14K0143CP	FUEL CELL-BULKHEAD-PAD-LWR-RH	14K0143CP FUEL CELL-BULKHEAD-PAD-LWR-RH Row ID: ID__14K0143CP_ContPgHS;	$8.59	1
019	15KA017RP	FUEL CELL - PAD - TOP RIGHT	15KA017RP FUEL CELL - PAD - TOP RIGHT Row ID: ID__15KA017RP_ContPgHS;	-	1	Enquire
020	15KA018RP	FUEL CELL - PAD - TOP CENTRE	15KA018RP FUEL CELL - PAD - TOP CENTRE Row ID: ID__15KA018RP_ContPgHS;	-	1	Enquire
021	15KA019RP	FUEL CELL - PAD - TOP LEFT	15KA019RP FUEL CELL - PAD - TOP LEFT Row ID: ID__15KA019RP_ContPgHS;	-	1	Enquire
022	15KA020RP	FUEL CELL - BULKHEAD - PAD - U	15KA020RP FUEL CELL - BULKHEAD - PAD - U Row ID: ID__15KA020RP_ContPgHS;	-	1	Enquire
023	15KA021RP	FUEL CELL - BULKHEAD - PAD - U	15KA021RP FUEL CELL - BULKHEAD - PAD - U Row ID: ID__15KA021RP_ContPgHS;	-	1	Enquire
024	15KA022RP	FUEL CELL - BULKHEAD - PAD - L	15KA022RP FUEL CELL - BULKHEAD - PAD - L Row ID: ID__15KA022RP_ContPgHS;	-	1	Enquire
