McLaren Ultimate Series McLaren Senna - 22 - ENGINE - 22.10 - ENGINE OIL PUMP & CIRCUIT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14FA028RP P14 OIL PUMP - HGEAR $2,552.93 To Order
Photo Part No Description Price (each) Stock
11F1926CP Bolt - M8X40 - DIA Head $7.81 To Order
Photo Part No Description Price (each) Stock
11F1781CP Bolt - M6x35 - Engine $9.85 To Order
Photo Part No Description Price (each) Stock
11F1030CP Seal Kit - Oil Pump to Block - Engine $75.95 To Order
Photo Part No Description Price (each) Stock
11F0690CP Seal - Engine Oil Pump $24.37 To Order
Photo Part No Description Price (each) Stock
14F0542CP HOSE - TURBOCHARGER OIL FEED - INC. WASHERS/BANJO - RH $186.61 To Order
Photo Part No Description Price (each) Stock
13F0762CP Bolt - Hollow - M12 $32.23 To Order
Photo Part No Description Price (each) Stock
12F0673CP WASHER M12 - SEALING Enquire To Order
Photo Part No Description Price (each) Stock
14F0828CP HOSE - TURBOCHARGER OIL RETURN - INC O-RING - RH $171.68 To Order
Photo Part No Description Price (each) Stock
13F0825CP Gasket - Turbocharger - Oil Return Hose $7.05 To Order
Photo Part No Description Price (each) Stock
14F0540CP HOSE - TURBOCHARGER OIL FEED - INC. WASHERS/BANJO - LH $186.61 To Order
Photo Part No Description Price (each) Stock
14F0827CP HOSE - TURBOCHARGER OIL RETURN - INC O-RING - LH $162.72 To Order
View All

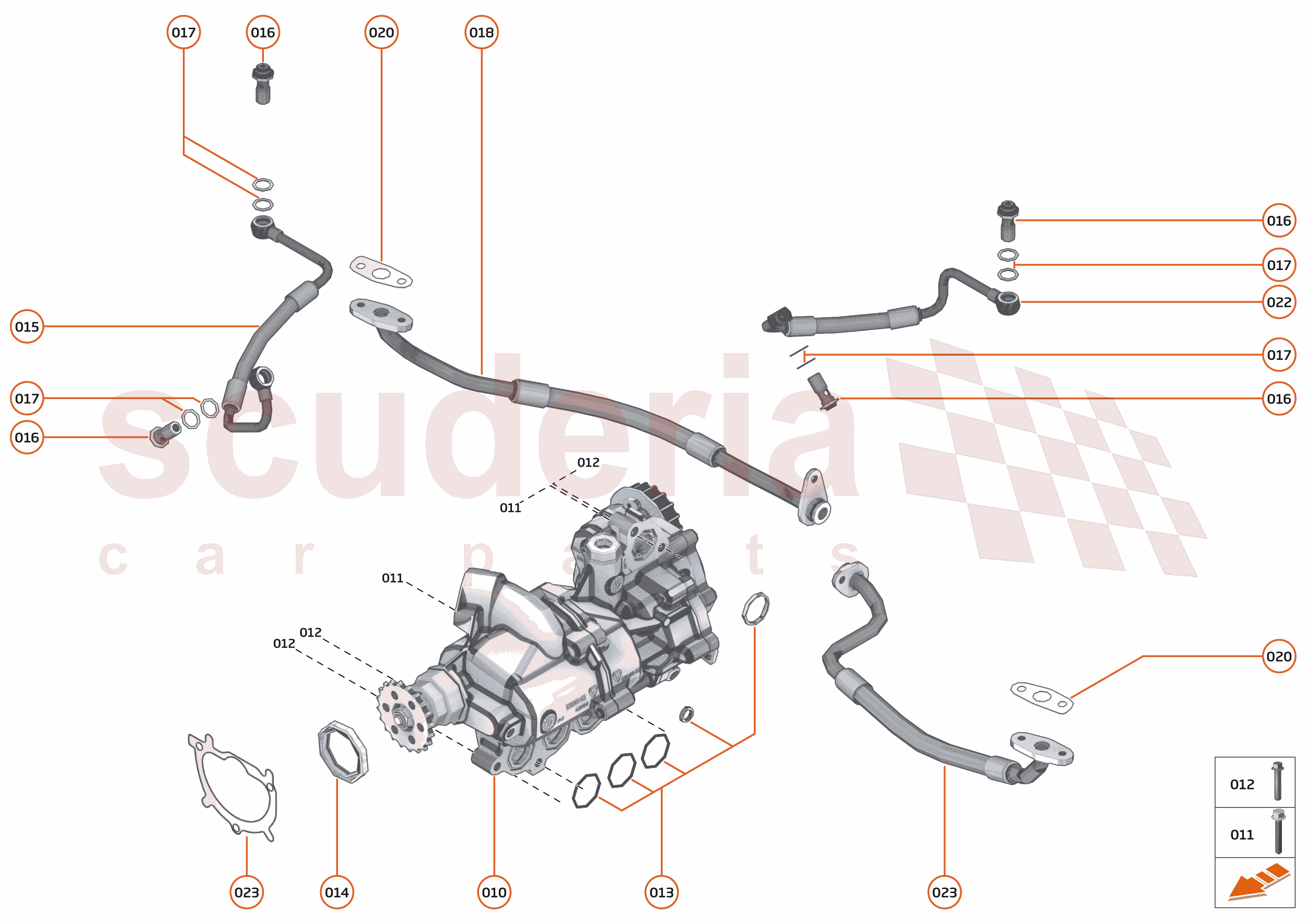

22 - ENGINE - 22.10 - ENGINE OIL PUMP & CIRCUIT of McLaren McLaren Ultimate Series McLaren Senna Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14FA028RP
P14 OIL PUMP - HGEAR
Row ID: ID_EDBC0137_14FA028RP_ContPgHS; 		$2,552.93 1
011 11F1926CP
Bolt - M8X40 - DIA Head
Row ID: ID_XXXXXXZV_11F1926CP_ContPgHS; 		$7.81 2
012 11F1781CP
Bolt - M6x35 - Engine
Row ID: ID_XXXXXXZV_11F1781CP_ContPgHS; 		$9.85 3
013 11F1030CP
Seal Kit - Oil Pump to Block - Engine
Row ID: ID_EDBC0281_11F1030CP_ContPgHS; 		$75.95 1
014 11F0690CP
Seal - Engine Oil Pump
Row ID: ID_EDBC0282_11F0690CP_ContPgHS; 		$24.37 1
015 14F0542CP
HOSE - TURBOCHARGER OIL FEED - INC. WASHERS/BANJO - RH
Row ID: ID_EDBC0136_14F0542CP_ContPgHS; 		$186.61 1
016 13F0762CP
Bolt - Hollow - M12
Row ID: ID_XXXXXXZV_13F0762CP_ContPgHS; 		$32.23 4
017 12F0673CP
WASHER M12 - SEALING
Row ID: ID_EDBC0283_12F0673CP_ContPgHS; 		- 8 Enquire
018 14F0828CP
HOSE - TURBOCHARGER OIL RETURN - INC O-RING - RH
Row ID: ID_EDBC0139_14F0828CP_ContPgHS; 		$171.68 1
020 13F0825CP
Gasket - Turbocharger - Oil Return Hose
Row ID: ID_EDBC0132_13F0825CP_ContPgHS; 		$7.05 2
022 14F0540CP
HOSE - TURBOCHARGER OIL FEED - INC. WASHERS/BANJO - LH
Row ID: ID_EDBC0133_14F0540CP_ContPgHS; 		$186.61 1
023 14F0827CP
HOSE - TURBOCHARGER OIL RETURN - INC O-RING - LH
Row ID: ID_EDBC0138_14F0827CP_ContPgHS; 		$162.72 1
024 13F0828CP
ASSY PIPE STUB TURBO WTR FEED RH
Row ID: ID__13F0828CP_ContPgHS; 		$48.35 1
025 13F0829CP
ASSY PIPE STUB TURBO WTR FEED LH
Row ID: ID__13F0829CP_ContPgHS; 		$39.12 1
