49 - INTERIOR SYSTEMS - 49.2 - FACIA CONSOLE of McLaren McLaren Ultimate Series McLaren P1 Coupe

View All

McLaren Ultimate Series McLaren P1 Coupe - 49 - INTERIOR SYSTEMS - 49.2 - FACIA CONSOLE

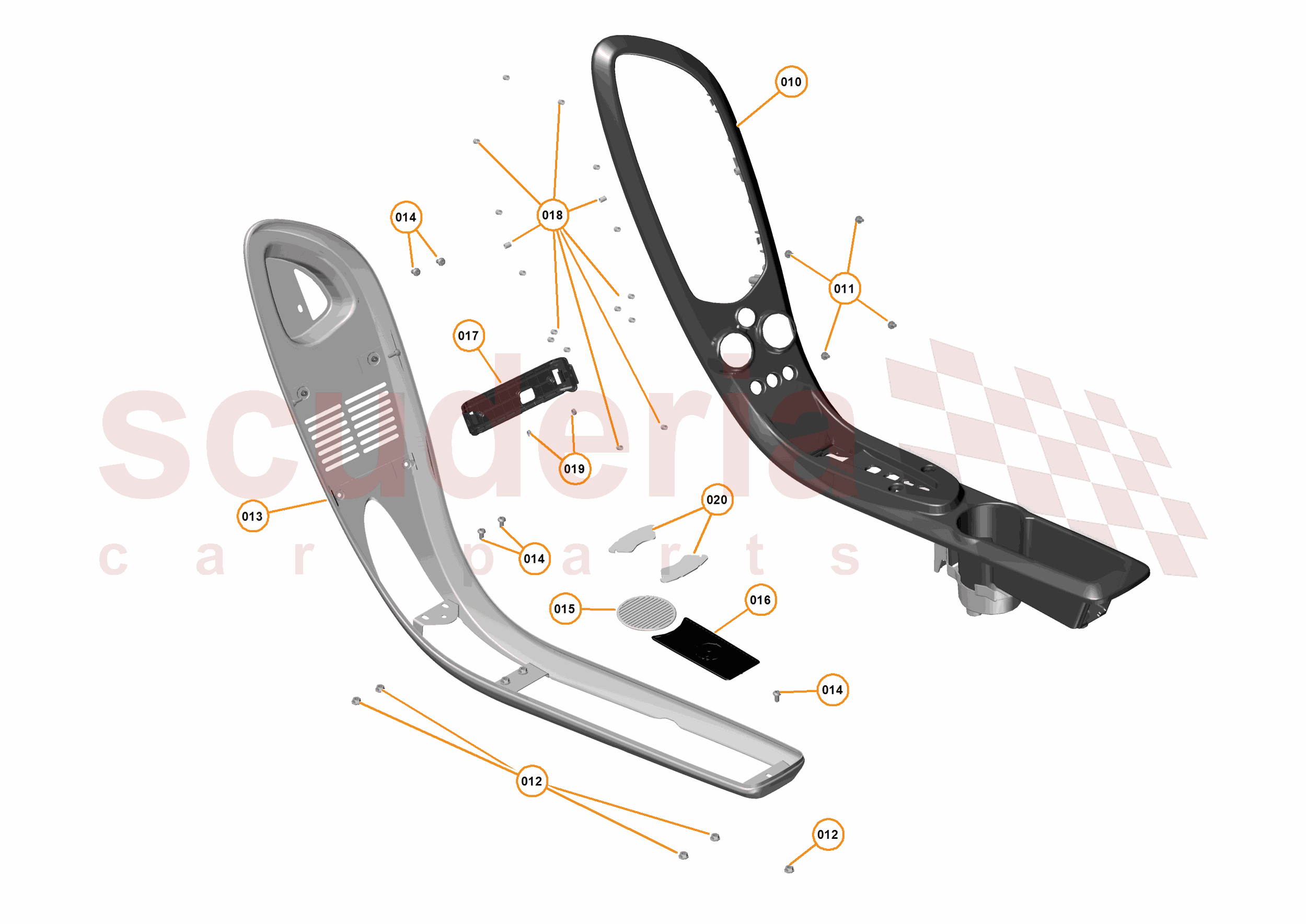

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	12N0291CP	Tunnel - Console - Upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA111	SCREW - M4X10 - BUTTON - 10.9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA074	NUT-HEX HEAD FLANGE-M5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12N0450CP	Armature Tunnel - Console - Lower	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA097	SCREW - M5X10 8.8 - BUTTON HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12N0532CP	Mat - Cupholder - Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12N0534CP	Mat - Tunnel Stowage - Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12N0700CP	Bracket - Cross-Bar - LCD Screen	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA108	Screw - Button Head - Flange - M4x12-10.9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12N0849CP	Spacer - Compression Limiter - M4 x 3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12N0452CP	Pad - Retainer - Cup	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	12N0291CP	Tunnel - Console - Upper	12N0291CP Tunnel - Console - Upper Row ID: ID_BHNA0201_12N0291CP_ContPgHS;	-	1	Enquire
011	00RA111	SCREW - M4X10 - BUTTON - 10.9	00RA111 SCREW - M4X10 - BUTTON - 10.9 Row ID: ID_BHNA0202_00RA111_ContPgHS;	-	4	Enquire
012	00RA074	NUT-HEX HEAD FLANGE-M5	00RA074 NUT-HEX HEAD FLANGE-M5 Row ID: ID_BHNA0203_00RA074_ContPgHS;	-	5	Enquire
013	12N0450CP	Armature Tunnel - Console - Lower	12N0450CP Armature Tunnel - Console - Lower Row ID: ID_BHNA0204_12N0450CP_ContPgHS;	-	1	Enquire
014	00RA097	SCREW - M5X10 8.8 - BUTTON HEAD	00RA097 SCREW - M5X10 8.8 - BUTTON HEAD Row ID: ID_BHNA0205_00RA097_ContPgHS;	-	5	Enquire
015	12N0532CP	Mat - Cupholder - Rear	12N0532CP Mat - Cupholder - Rear Row ID: ID_BHNA0206_12N0532CP_ContPgHS;	-	1	Enquire
016	12N0534CP	Mat - Tunnel Stowage - Rear	12N0534CP Mat - Tunnel Stowage - Rear Row ID: ID_BHNA0207_12N0534CP_ContPgHS;	-	1	Enquire
017	12N0700CP	Bracket - Cross-Bar - LCD Screen	12N0700CP Bracket - Cross-Bar - LCD Screen Row ID: ID_BHNA0208_12N0700CP_ContPgHS;	-	1	Enquire
018	00RA108	Screw - Button Head - Flange - M4x12-10.9	00RA108 Screw - Button Head - Flange - M4x12-10.9 Row ID: ID_BHNA0209_00RA108_ContPgHS;	-	2	Enquire
019	12N0849CP	Spacer - Compression Limiter - M4 x 3	12N0849CP Spacer - Compression Limiter - M4 x 3 Row ID: ID_BHNA0210_12N0849CP_ContPgHS;	-	2	Enquire
020	12N0452CP	Pad - Retainer - Cup	12N0452CP Pad - Retainer - Cup Row ID: ID_BHNA0211_12N0452CP_ContPgHS;	-	2	Enquire
