McLaren Super Series McLaren 720S Spider - 31 - FLUIDS - HVAC - 31.1 - HVAC FLUIDS CIRCUIT

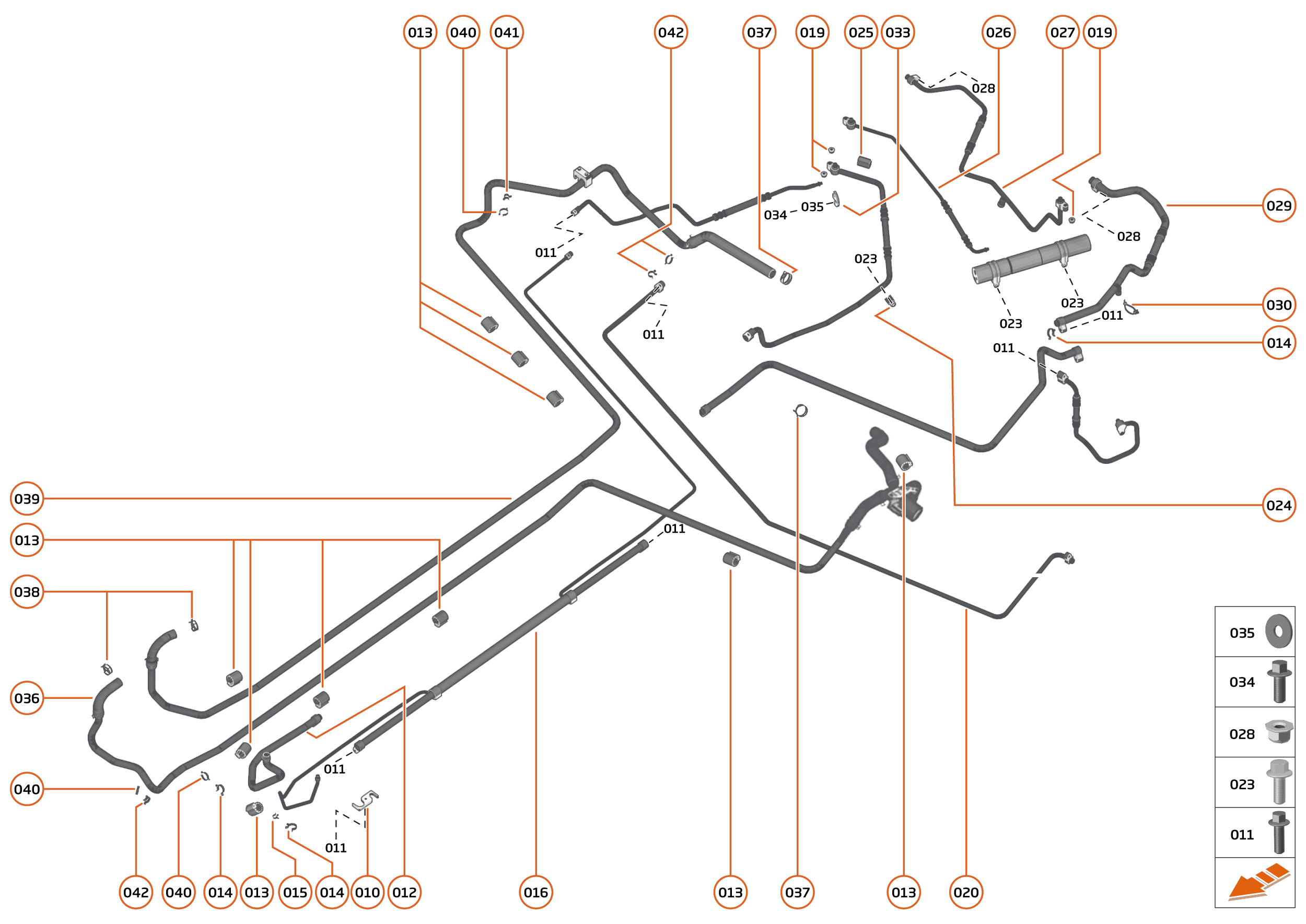

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	11A4434CP	CLAMP PLATE - HVAC EVAPORATOR CONNECTION	11A4434CP CLAMP PLATE - HVAC EVAPORATOR CONNECTION Row ID: ID_DCAS0108_11A4434CP_ContPgHS;	-	1	Enquire
012	13A3307CP	PIPE - EVAPORATOR - INTERNAL HEAT EXCHANGER	13A3307CP PIPE - EVAPORATOR - INTERNAL HEAT EXCHANGER Row ID: ID_DDLC0110_13A3307CP_ContPgHS;	-	1	Enquire
013	00RA367	PIPE PROTECTOR - 19MM ID	00RA367 PIPE PROTECTOR - 19MM ID Row ID: ID_XXXXXXZY_00RA367_ContPgHS;	-	2	Enquire
016	14A3051CP	INTERNAL HEAT EXCHANGER UNIT	14A3051CP INTERNAL HEAT EXCHANGER UNIT Row ID: ID_DDLC0111_14A3051CP_ContPgHS;	-	1	Enquire
017	14A1800CP	PIPE - INTERNAL HEAT EXCHANGER - COMPRESSOR	14A1800CP PIPE - INTERNAL HEAT EXCHANGER - COMPRESSOR Row ID: ID_DDLC0112_14A1800CP_ContPgHS;	-	1	Enquire
018	14A1654CP	HOSE - CONDENSER LATERAL - LH - HVAC	14A1654CP HOSE - CONDENSER LATERAL - LH - HVAC Row ID: ID_DDLC0113_14A1654CP_ContPgHS;	-	1	Enquire
019	11A6627CP	SENSOR - PRESSURE - HVAC	11A6627CP SENSOR - PRESSURE - HVAC Row ID: ID_DCAS0107_11A6627CP_ContPgHS;	-	1	Enquire
020	14A1645CP	HOSE - CONDENSER LATERAL - CENTRE - HVAC	14A1645CP HOSE - CONDENSER LATERAL - CENTRE - HVAC Row ID: ID_DDLC0114_14A1645CP_ContPgHS;	-	1	Enquire
021	13A4104CP	HOSE - RECEIVER DRIER - HVAC - REAR	13A4104CP HOSE - RECEIVER DRIER - HVAC - REAR Row ID: ID_DDLC0115_13A4104CP_ContPgHS;	-	1	Enquire
022	14A1655CP	HOSE - CONDENSER LATERAL - RH - HVAC	14A1655CP HOSE - CONDENSER LATERAL - RH - HVAC Row ID: ID_DDLC0116_14A1655CP_ContPgHS;	-	1	Enquire
026	14A1656CP	HOSE - CONDENSER - RECIEVER DRIER - HVAC	14A1656CP HOSE - CONDENSER - RECIEVER DRIER - HVAC Row ID: ID_DDLC0117_14A1656CP_ContPgHS;	-	1	Enquire
027	14A1653CP	HOSE - COMPRESSOR TO CONDENSER - R1234YF	14A1653CP HOSE - COMPRESSOR TO CONDENSER - R1234YF Row ID: ID_DDLC0119_14A1653CP_ContPgHS;	-	1	Enquire
027	14A1802CP	HOSE - COMPRESSOR TO CONDENSER - R134A	14A1802CP HOSE - COMPRESSOR TO CONDENSER - R134A Row ID: ID_DDLC0118_14A1802CP_ContPgHS;	-	1	Enquire
029	14AB752CP	HOSE - COMPRESSOR - REAR - R1234YF	14AB752CP HOSE - COMPRESSOR - REAR - R1234YF Row ID: ID_DDLC0121_14AB752CP_ContPgHS;	-	1	Enquire
029	14AB753CP	HOSE - HVAC COMPRESSOR - REAR - R134A	14AB753CP HOSE - HVAC COMPRESSOR - REAR - R134A Row ID: ID_DDLC0120_14AB753CP_ContPgHS;	-	1	Enquire
031	12A2757CP	RECEIVER DRIER - HVAC	12A2757CP RECEIVER DRIER - HVAC Row ID: ID_DDLC0122_12A2757CP_ContPgHS;	-	1	Enquire
033	11A4433CP	CLAMP PLATE - RECEIVER DRIER - HVAC	11A4433CP CLAMP PLATE - RECEIVER DRIER - HVAC Row ID: ID_DDLC0123_11A4433CP_ContPgHS;	-	1	Enquire
035	00RC038	WASHER - WAVE M8	00RC038 WASHER - WAVE M8 Row ID: ID_XXXXXXZW_00RC038_ContPgHS;	-	1	Enquire
036	14LA045CP	HOSE - HEATER TO ENGINE - INCLUDING VALVE	14LA045CP HOSE - HEATER TO ENGINE - INCLUDING VALVE Row ID: ID_DDLC0126_14LA045CP_ContPgHS;	-	1	Enquire
037	00RB145	CLAMP - SPRING BAND - 26/12	00RB145 CLAMP - SPRING BAND - 26/12 Row ID: ID_XXXXXXZX_00RB145_ContPgHS;	-	1	Enquire
039	14A4228CP	HOSE - HEATER TO PUMP - HVAC	14A4228CP HOSE - HEATER TO PUMP - HVAC Row ID: ID_DDLC0125_14A4228CP_ContPgHS;	-	1	Enquire
043	14A3034CP	CLIP - HEATER PIPE	14A3034CP CLIP - HEATER PIPE Row ID: ID_DDLC0127_14A3034CP_ContPgHS;	-	1	Enquire
