12 - LIGHTS - 12.1 - FRONT LIGHTS of McLaren McLaren Super Series McLaren 720S Coupe

View All

McLaren Super Series McLaren 720S Coupe - 12 - LIGHTS - 12.1 - FRONT LIGHTS

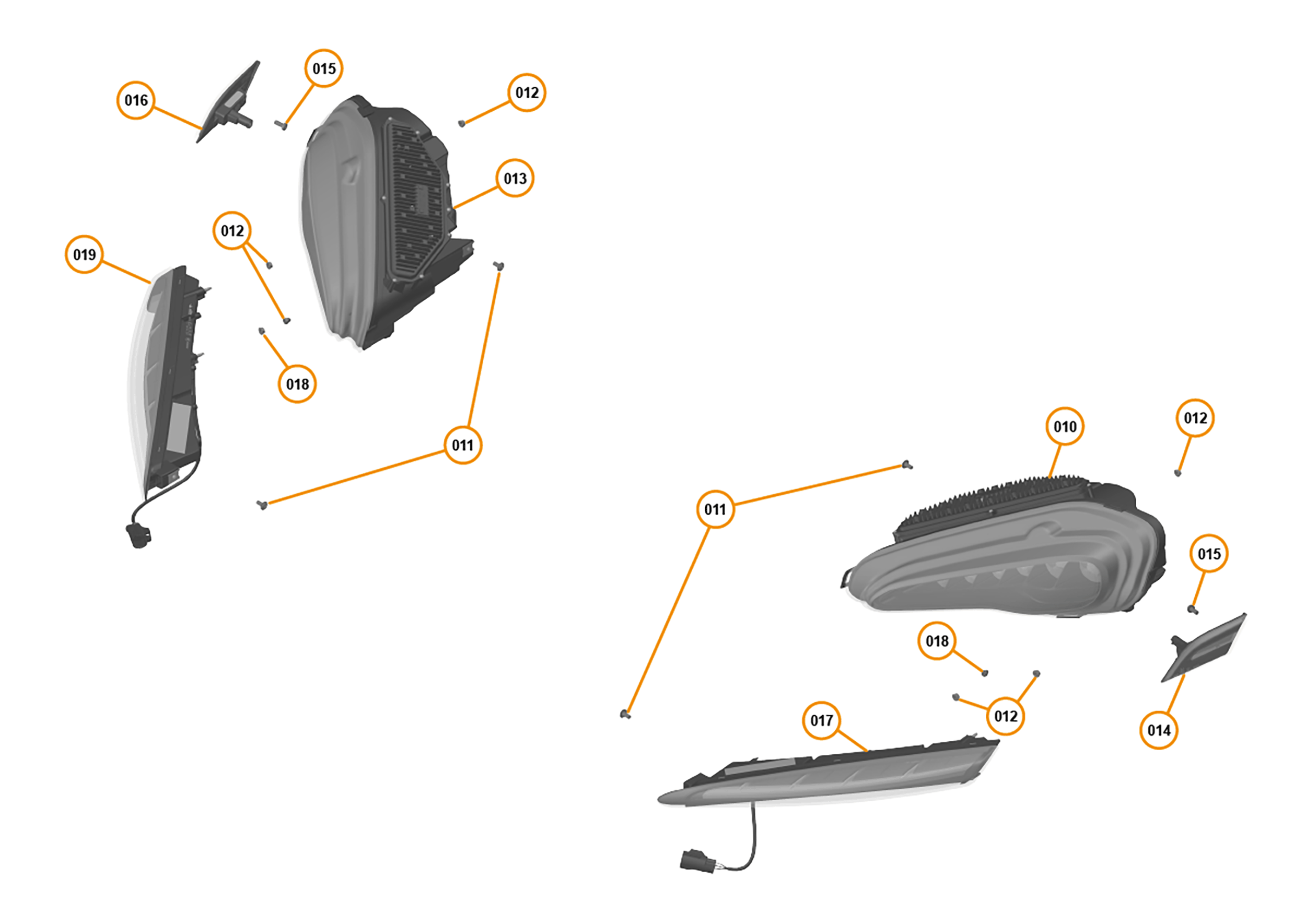

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	14AA294CP	HEADLAMP - LH - LHD	14AA294CP HEADLAMP - LH - LHD Row ID: ID_DCAN0101_14AA294CP_ContPgHS;	-	1	Enquire
010	14AA302CP	HEADLAMP - LH - RHD	14AA302CP HEADLAMP - LH - RHD Row ID: ID_DCAN0102_14AA302CP_ContPgHS;	-	1	Enquire
010	14AA298CP	HEADLAMP - LH - US	14AA298CP HEADLAMP - LH - US Row ID: ID_DCAN0103_14AA298CP_ContPgHS;	-	1	Enquire
011	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Row ID: ID_XXXXXXZV_00RA468_ContPgHS;	-	4	Enquire
012	00RA582	NUT - M5 - HEX	00RA582 NUT - M5 - HEX Row ID: ID_XXXXXXZV_00RA582_ContPgHS;	-	6	Enquire
013	14AA296CP	HEADLAMP - RH - LHD	14AA296CP HEADLAMP - RH - LHD Row ID: ID_DCAN0104_14AA296CP_ContPgHS;	-	1	Enquire
013	14AA304CP	HEADLAMP - RH - RHD	14AA304CP HEADLAMP - RH - RHD Row ID: ID_DCAN0105_14AA304CP_ContPgHS;	-	1	Enquire
013	14AA300CP	HEADLAMP - RH - US	14AA300CP HEADLAMP - RH - US Row ID: ID_DCAN0106_14AA300CP_ContPgHS;	-	1	Enquire
014	14AA270CP	SIDE REPEATER - FRONT - LH	14AA270CP SIDE REPEATER - FRONT - LH Row ID: ID_DCAN0107_14AA270CP_ContPgHS;	-	1	Enquire
014	14AA266CP	SIDE MARKER - FRONT - LH - FEDERAL	14AA266CP SIDE MARKER - FRONT - LH - FEDERAL Row ID: ID_DCAN0108_14AA266CP_ContPgHS;	-	1	Enquire
015	00RA353	SCREW - 6X14 - THREADFORMING - TORX - FLANGE	00RA353 SCREW - 6X14 - THREADFORMING - TORX - FLANGE Row ID: ID_XXXXXXZV_00RA353_ContPgHS;	-	2	Enquire
016	14AA272CP	SIDE REPEATER - FRONT - RH	14AA272CP SIDE REPEATER - FRONT - RH Row ID: ID_DCAN0109_14AA272CP_ContPgHS;	-	1	Enquire
016	14AA268CP	SIDE MARKER - FRONT - RH - FEDERAL	14AA268CP SIDE MARKER - FRONT - RH - FEDERAL Row ID: ID_DCAN0110_14AA268CP_ContPgHS;	-	1	Enquire
017	14AA251CP	LAMP - SIGNAL - LH	14AA251CP LAMP - SIGNAL - LH Row ID: ID_DCAN0111_14AA251CP_ContPgHS;	-	1	Enquire
017	14AA255CP	ASSY SIGNAL LAMP US LH	14AA255CP ASSY SIGNAL LAMP US LH Row ID: ID_DCAN0112_14AA255CP_ContPgHS;	-	1	Enquire
018	00RG056	NUT - DOME - M5X0.8 - BLACK	00RG056 NUT - DOME - M5X0.8 - BLACK Row ID: ID_XXXXXXZV_00RG056_ContPgHS;	-	2	Enquire
019	14AA253CP	LAMP - SIGNAL - RH	14AA253CP LAMP - SIGNAL - RH Row ID: ID_DCAN0113_14AA253CP_ContPgHS;	-	1	Enquire
019	14AA257CP	LAMP - SIGNAL - RH - FEDERAL	14AA257CP LAMP - SIGNAL - RH - FEDERAL Row ID: ID_DCAN0114_14AA257CP_ContPgHS;	-	1	Enquire
