3 - A3 -CLOSURES - 3.8 - 04 - ENGINE COVER of McLaren McLaren Super Series McLaren 675LT Spider

View All

McLaren Super Series McLaren 675LT Spider - 3 - A3 -CLOSURES - 3.8 - 04 - ENGINE COVER

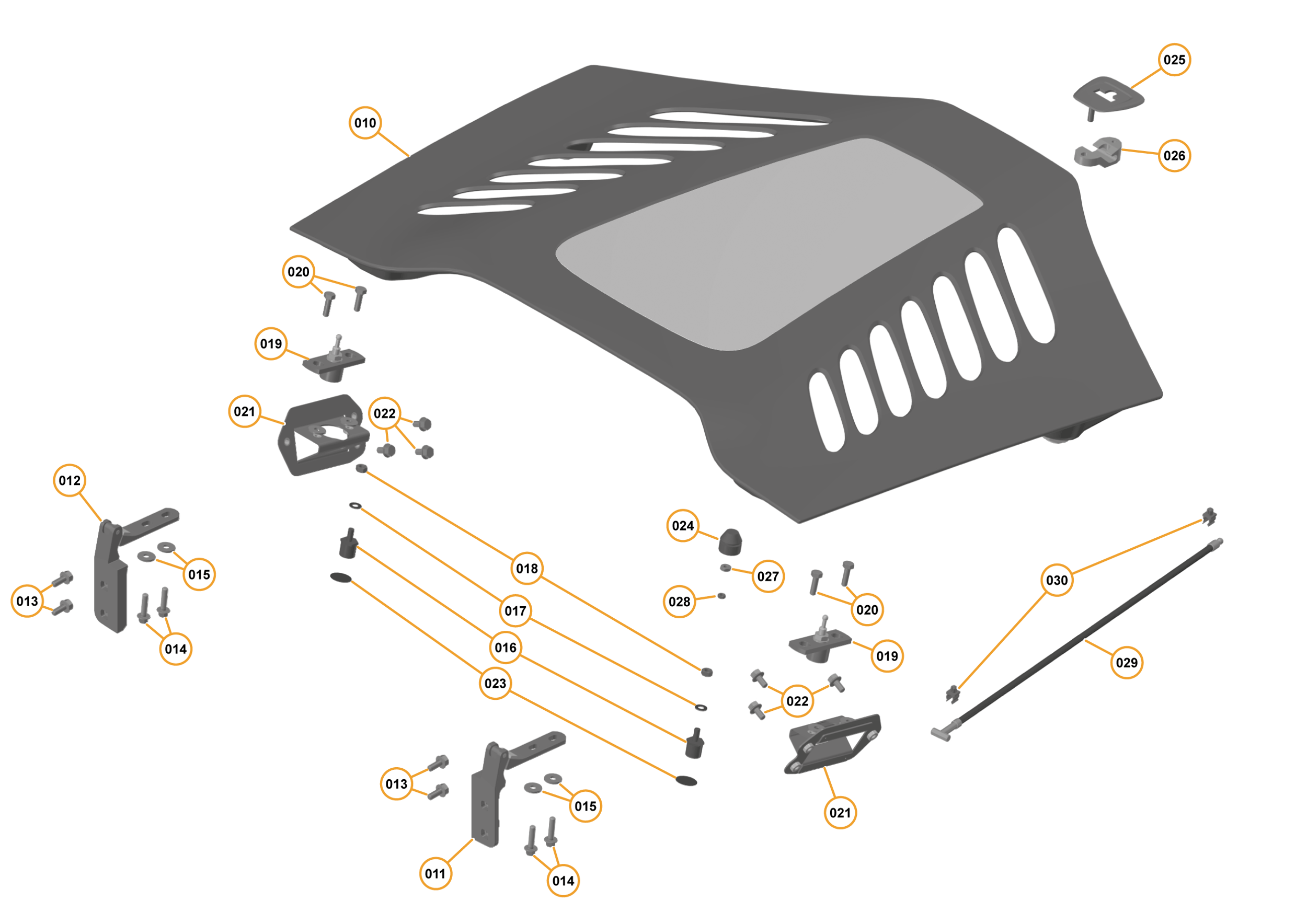

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	11A5798LP	Assy - Glass - Engine Cover	11A5798LP Assy - Glass - Engine Cover Row ID: ID_A0A30453_11A5798LP_ContPgHS;	-	1	Enquire
011	11A9835LP	Hinge - Engine Cover - LH	11A9835LP Hinge - Engine Cover - LH Row ID: ID_A0A30469_11A9835LP_ContPgHS;	-	1	Enquire
012	11A9833LP	Hinge - Engine Cover - RH	11A9833LP Hinge - Engine Cover - RH Row ID: ID_A0A30470_11A9833LP_ContPgHS;	-	1	Enquire
013	00RA061	Screw - M6x16 - Flange Hex	00RA061 Screw - M6x16 - Flange Hex Row ID: ID_A0A30413_00RA061_ContPgHS;	-	4	Enquire
014	00RA621	SCREW - M6X24 - BUTTON	00RA621 SCREW - M6X24 - BUTTON Row ID: ID_A0A30471_00RA621_ContPgHS;	-	4	Enquire
015	00RC064	WASHER - M6X18X1.6 - BLACK	00RC064 WASHER - M6X18X1.6 - BLACK Row ID: ID_A0A30403_00RC064_ContPgHS;	-	12	Enquire
016	11A4020SP	BUMPSTOP - ENGINE COVER	11A4020SP BUMPSTOP - ENGINE COVER Row ID: ID_A0A30442_11A4020SP_ContPgHS;	-	2	Enquire
017	00RC008	WASHER - M6X12.5X0.9	00RC008 WASHER - M6X12.5X0.9 Row ID: ID_A0A30449_00RC008_ContPgHS;	-	2	Enquire
018	00RA134	Nut - M6 - Hex	00RA134 Nut - M6 - Hex Row ID: ID_A0A30448_00RA134_ContPgHS;	-	2	Enquire
019	11A9971LP	Catcher - Engine Cover	11A9971LP Catcher - Engine Cover Row ID: ID_A0A30472_11A9971LP_ContPgHS;	-	2	Enquire
020	00RA127	SCREW - M6X20 - HEX	00RA127 SCREW - M6X20 - HEX Row ID: ID_A0A30461_00RA127_ContPgHS;	-	4	Enquire
021	11A9961LP	Fixing Bracket - Engine Cover	11A9961LP Fixing Bracket - Engine Cover Row ID: ID_A0A30473_11A9961LP_ContPgHS;	-	2	Enquire
022	00RA065	SCREW - M6X12-8.8 - FLANGE HEX	00RA065 SCREW - M6X12-8.8 - FLANGE HEX Row ID: ID_A0A30409_00RA065_ContPgHS;	-	6	Enquire
023	11A4666CP	Helicopter Tape - Bumpstop	11A4666CP Helicopter Tape - Bumpstop Row ID: ID_A0A30408_11A4666CP_ContPgHS;	-	2	Enquire
024	11A9629RP	Grommet - Engine Cover	11A9629RP Grommet - Engine Cover Row ID: ID_A0A30467_11A9629RP_ContPgHS;	-	1	Enquire
025	11A9630RP	Plate - Rear Deck	11A9630RP Plate - Rear Deck Row ID: ID_A0A30463_11A9630RP_ContPgHS;	-	1	Enquire
026	11A9631RP	Retention Plate - Rear Deck	11A9631RP Retention Plate - Rear Deck Row ID: ID_A0A30464_11A9631RP_ContPgHS;	-	1	Enquire
027	00RA328	Half Nut - M6	00RA328 Half Nut - M6 Row ID: ID_A0A30426_00RA328_ContPgHS;	-	1	Enquire
028	00RA185	HEX NUT - M4 - PLAIN	00RA185 HEX NUT - M4 - PLAIN Row ID: ID_A0A30466_00RA185_ContPgHS;	-	1	Enquire
029	11A9836LP	Engine Cover Stay - 675LT Spider	11A9836LP Engine Cover Stay - 675LT Spider Row ID: ID_A0A30474_11A9836LP_ContPgHS;	-	-	Enquire
030	00RB055	Clip - 7mm - Raymond	00RB055 Clip - 7mm - Raymond Row ID: ID_A0A30458_00RB055_ContPgHS;	-	2	Enquire
