3 - A3 -CLOSURES - 3.5 - 03 - DOOR LH - INTERNAL of McLaren McLaren Super Series McLaren 675LT Coupe

View All

McLaren Super Series McLaren 675LT Coupe - 3 - A3 -CLOSURES - 3.5 - 03 - DOOR LH - INTERNAL

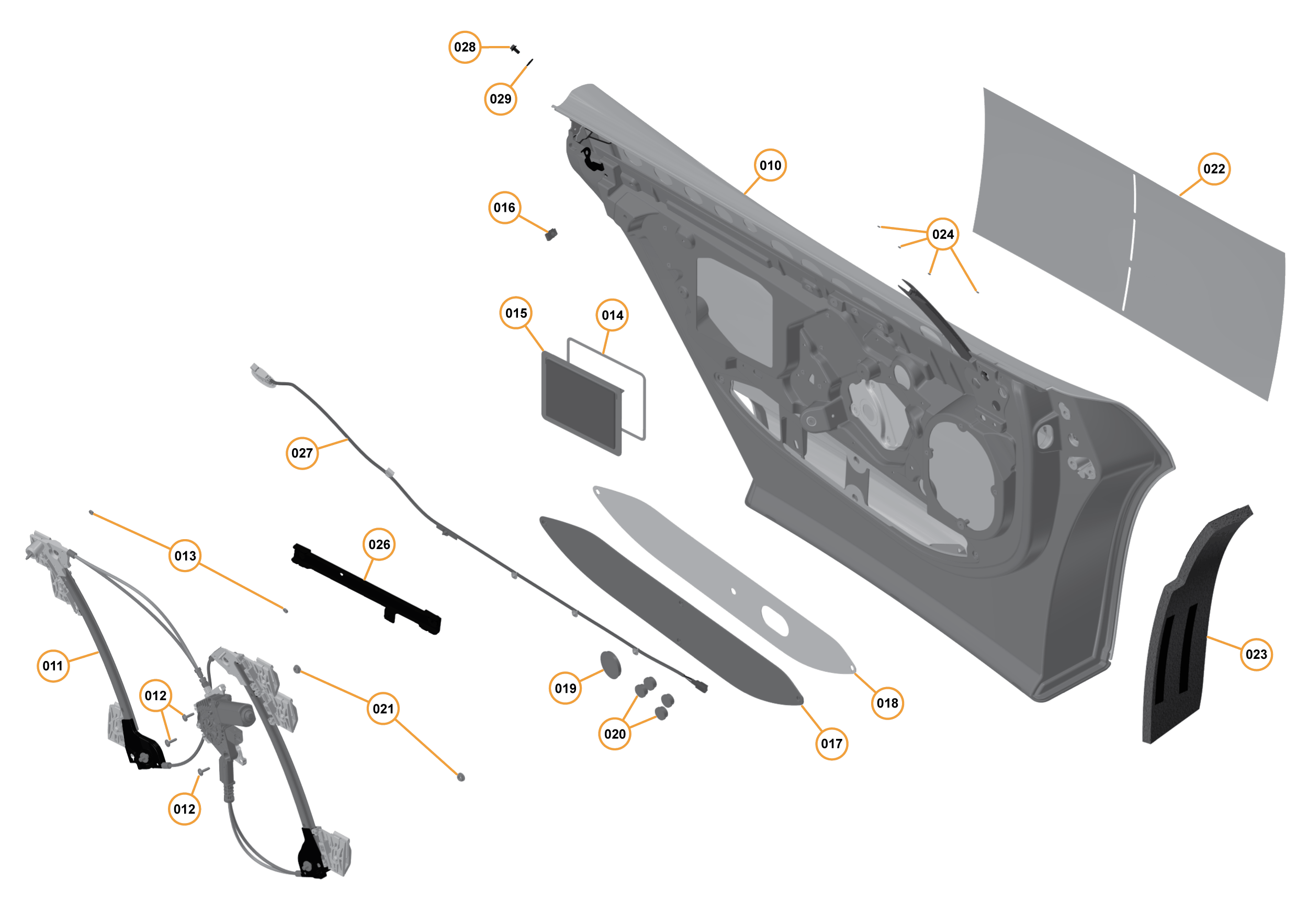

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	11A7397CP	Door Assy - LH - Push Button Entry	11A7397CP Door Assy - LH - Push Button Entry Row ID: ID_A0A303A0_11A7397CP_ContPgHS;	-	1	Enquire
011	11A1565CP	Regulator & Motor Assy - Door Glass - LH	11A1565CP Regulator & Motor Assy - Door Glass - LH Row ID: ID_A0A30367_11A1565CP_ContPgHS;	-	1	Enquire
012	00RA342	TORX SCREW - PT5X20	00RA342 TORX SCREW - PT5X20 Row ID: ID_A0A30368_00RA342_ContPgHS;	-	3	Enquire
013	00RA328	Half Nut - M6	00RA328 Half Nut - M6 Row ID: ID_A0A30369_00RA328_ContPgHS;	-	2	Enquire
014	11A3534CP	Seal - Vent Plate - Air Evacuation - Door	11A3534CP Seal - Vent Plate - Air Evacuation - Door Row ID: ID_A0A30372_11A3534CP_ContPgHS;	-	1	Enquire
015	11A1947CP	ASSY-VENT AIR EVAC24LATE	11A1947CP ASSY-VENT AIR EVAC24LATE Row ID: ID_A0A30373_11A1947CP_ContPgHS;	$140.97	1
016	00RA329		00RA329 Clip - M6; Row ID: ID_A0A30374_00RA329_ContPgHS;	-	1	Enquire
017	11A3461CP	Door Access Panel - Inner - LH	11A3461CP Door Access Panel - Inner - LH Row ID: ID_A0A30376_11A3461CP_ContPgHS;	-	1	Enquire
018	11A4849CP	Adhesive Tape - Door Access Panel	11A4849CP Adhesive Tape - Door Access Panel Row ID: ID_A0A30377_11A4849CP_ContPgHS;	-	1	Enquire
019	00RE002	Dome Plug - Heyco - 430 2784	00RE002 Dome Plug - Heyco - 430 2784 Row ID: ID_A0A30378_00RE002_ContPgHS;	-	1	Enquire
020	00RE005	Dome Plug - Heyco - 430 2704	00RE005 Dome Plug - Heyco - 430 2704 Row ID: ID_A0A30379_00RE005_ContPgHS;	-	4	Enquire
021	00RA262	HALF NUT - M8 - DIN 439	00RA262 HALF NUT - M8 - DIN 439 Row ID: ID_A0A30387_00RA262_ContPgHS;	-	2	Enquire
022	11A4506CP	NVH Pad - Door - Outer	11A4506CP NVH Pad - Door - Outer Row ID: ID_A0A30309_11A4506CP_ContPgHS;	-	1	Enquire
023	11A4509CP	NVH PAD-DOOR FRONT24H	11A4509CP NVH PAD-DOOR FRONT24H Row ID: ID_A0A30310_11A4509CP_ContPgHS;	$57.16	1
024	11A4757CP	Bond Spacer - Cheater Glass	11A4757CP Bond Spacer - Cheater Glass Row ID: ID_A0A30312_11A4757CP_ContPgHS;	-	4	Enquire
026	11A5337CP	Bracket - Reinforcement Waist Belt - Upper - Front - LH	11A5337CP Bracket - Reinforcement Waist Belt - Upper - Front - LH Row ID: ID_A0A30317_11A5337CP_ContPgHS;	-	1	Enquire
027	11M2414CP	Switch - Door Release - Push Button	11M2414CP Switch - Door Release - Push Button Row ID: ID_A0A303A1_11M2414CP_ContPgHS;	-	1	Enquire
028	00RA065	SCREW - M6X12-8.8 - FLANGE HEX	00RA065 SCREW - M6X12-8.8 - FLANGE HEX Row ID: ID_A0A303D5_00RA065_ContPgHS;	-	1	Enquire
029	00RC064	WASHER - M6X18X1.6 - BLACK	00RC064 WASHER - M6X18X1.6 - BLACK Row ID: ID_A0A30306_00RC064_ContPgHS;	-	2	Enquire
