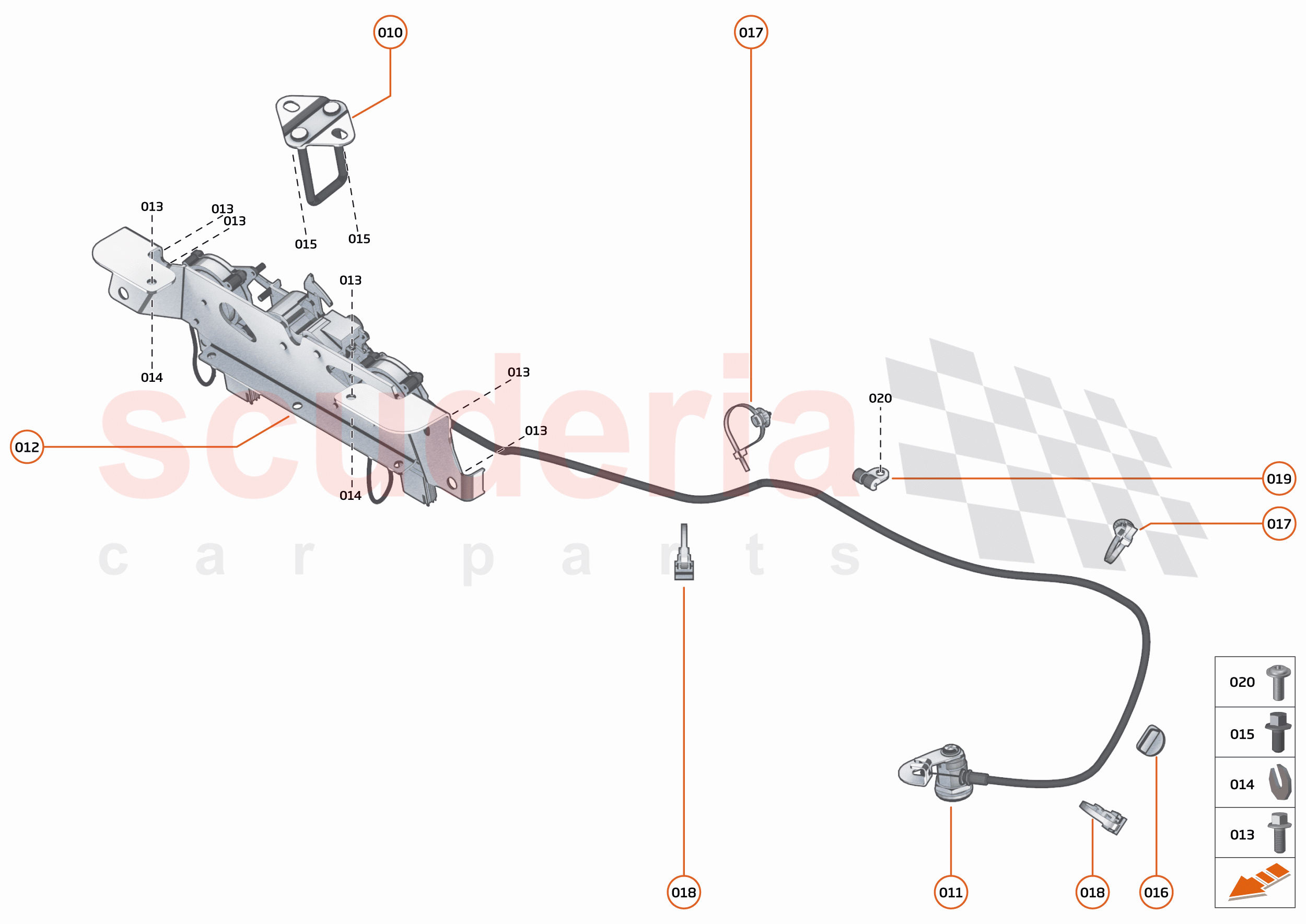

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	13A6301CP	STRIKER - BONNET LATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23AA557CP	ASSY BONNET EXTERNAL KEY BARRE	$166.54	To Order

Photo	Part No	Description	Price (each)	Stock
	23AD482CP	LATCH PRIMARY BONNET	$856.52	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA313	SCREW - M6X16 - HEX - SILVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13AA452CP	SHIM - 0.5MM - REAR BUMPER - MY2015	$7.70	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA588	BOLT - M8X1.25X14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A7405CP	CLIP - HARNESS	$18.25	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL001	CABLE TIE - FIRTREE BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL011	EDGE CLIP - 202X4.6MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB063	P CLIP - DIA 6 (M6)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	Enquire	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	13A6301CP	STRIKER - BONNET LATCH	13A6301CP STRIKER - BONNET LATCH	-	1	Enquire
011	23AA557CP	ASSY BONNET EXTERNAL KEY BARRE	23AA557CP ASSY BONNET EXTERNAL KEY BARRE	$166.54	1
012	23AD482CP	LATCH PRIMARY BONNET	23AD482CP LATCH PRIMARY BONNET	$856.52	1
013	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER	-	6	Enquire
014	13AA452CP	SHIM - 0.5MM - REAR BUMPER - MY2015	13AA452CP SHIM - 0.5MM - REAR BUMPER - MY2015	$7.70	6
015	00RA588	BOLT - M8X1.25X14	00RA588 BOLT - M8X1.25X14	-	2	Enquire
016	11A7405CP	CLIP - HARNESS	11A7405CP CLIP - HARNESS	$18.25	1
017	00RL001	CABLE TIE - FIRTREE BASE	00RL001 CABLE TIE - FIRTREE BASE	-	2	Enquire
018	00RL011	EDGE CLIP - 202X4.6MM	00RL011 EDGE CLIP - 202X4.6MM	-	2	Enquire
019	00RB063	P CLIP - DIA 6 (M6)	00RB063 P CLIP - DIA 6 (M6)	-	1	Enquire
020	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD	-	1	Enquire
