3 - REAR STRUCTURES - 3.1 - REAR FRAME of McLaren McLaren Ultimate Series McLaren Senna GTR

View All

McLaren Ultimate Series McLaren Senna GTR - 3 - REAR STRUCTURES - 3.1 - REAR FRAME

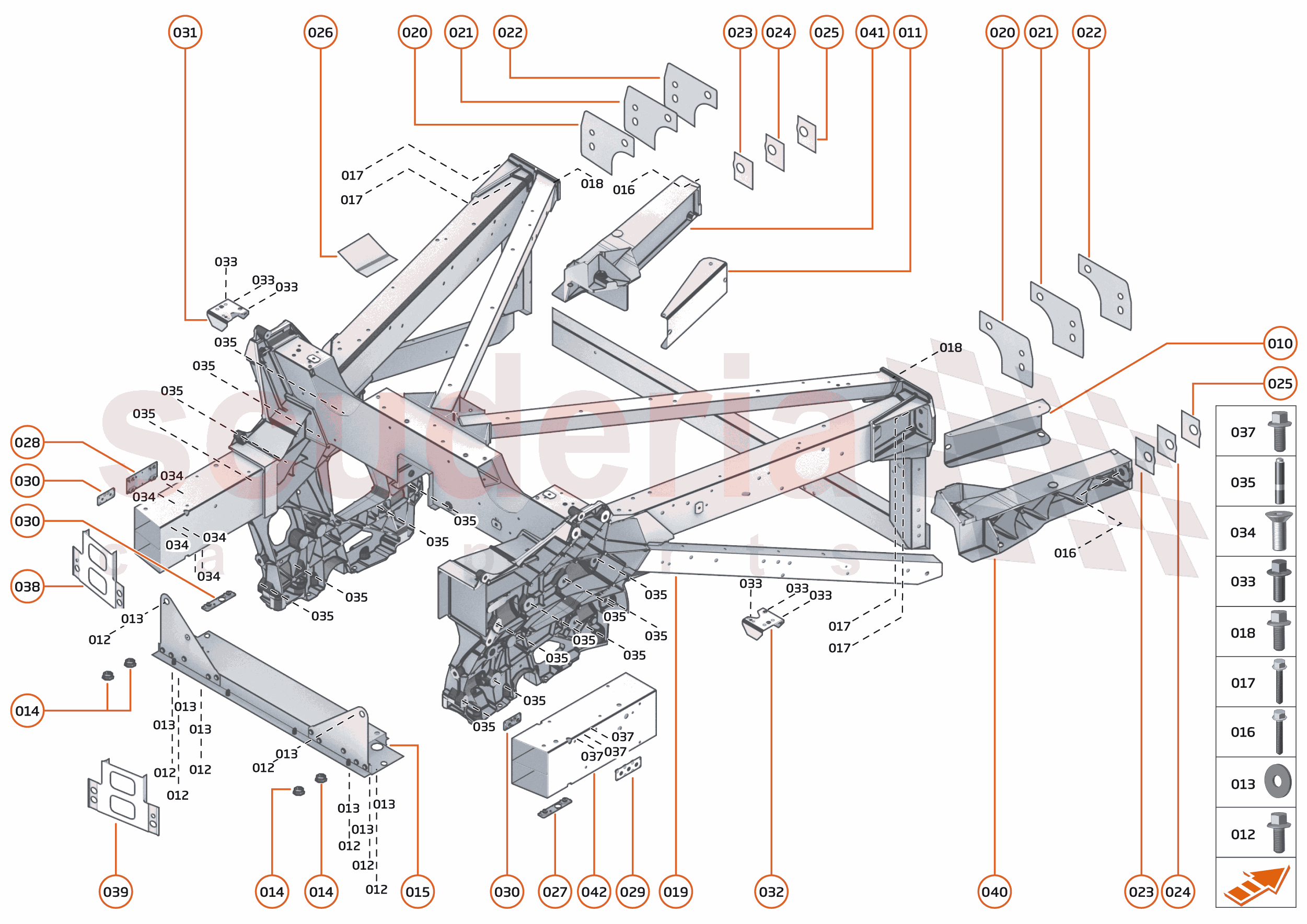

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11A3816CP	COVER - REAR FRAME TO FUEL CELL - RH	$93.52	To Order

Photo	Part No	Description	Price (each)	Stock
	11A3817CP	COVER - REAR FRAME TO FUEL CELL - LH	$93.52	To Order

Photo	Part No	Description	Price (each)	Stock
	14NB754CP	BRACKET - A PILLAR - UPPER - RH	$97.05	To Order

Photo	Part No	Description	Price (each)	Stock
	14N1525CP	BRACKET - REAR QUARTER TRIM - RH	$150.78	To Order

Photo	Part No	Description	Price (each)	Stock
	14N0199CP	A PILLAR - FINISHER - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14NA323SP	ASSY REARR CAPPING PANEL COMPLETE	Enquire	To Order
	11N2396CP	J Clip - Raymond - ST4.2 - 011809	$5.52	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA164	BOLT - M16X80 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14N1524CP	BRACKET - REAR QUARTER TRIM - LH	$150.78	To Order

Photo	Part No	Description	Price (each)	Stock
	14N0203CP	A PILLAR - FINISHER - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14NA325SP	NVH RR CAPPING PANEL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	11A3816CP	COVER - REAR FRAME TO FUEL CELL - RH	11A3816CP COVER - REAR FRAME TO FUEL CELL - RH Row ID: ID__11A3816CP_ContPgHS; Resolution: Available;	$93.52	1
011	11A3817CP	COVER - REAR FRAME TO FUEL CELL - LH	11A3817CP COVER - REAR FRAME TO FUEL CELL - LH Row ID: ID__11A3817CP_ContPgHS; Resolution: Available;	$93.52	1
012	14NB754CP	BRACKET - A PILLAR - UPPER - RH	14NB754CP BRACKET - A PILLAR - UPPER - RH Row ID: ID__00RA457_ContPgHS; Resolution: Available;	$97.05	8
013	14N1525CP	BRACKET - REAR QUARTER TRIM - RH	14N1525CP BRACKET - REAR QUARTER TRIM - RH Row ID: ID__00RC065_ContPgHS; Resolution: Available;	$150.78	8
014	14N0199CP	A PILLAR - FINISHER - LH	14N0199CP A PILLAR - FINISHER - LH Row ID: ID__11A4284CP_ContPgHS; Resolution: Available;	-	4	Enquire
015	14NA323SP	ASSY REARR CAPPING PANEL COMPLETE	14NA323SP ASSY REARR CAPPING PANEL COMPLETE Row ID: ID__11A4416CP_ContPgHS; Resolution: Available;	-	1	Enquire
015	11N2396CP	J Clip - Raymond - ST4.2 - 011809	11N2396CP J Clip - Raymond - ST4.2 - 011809 Row ID: ID__15AC169CP_ContPgHS; Resolution: Available;	$5.52	1
016	00RA164	BOLT - M16X80 - HEX	00RA164 BOLT - M16X80 - HEX Row ID: ID__00RA164_ContPgHS; Resolution: Available;	-	2	Enquire
017	14N1524CP	BRACKET - REAR QUARTER TRIM - LH	14N1524CP BRACKET - REAR QUARTER TRIM - LH Row ID: ID__00RA400_ContPgHS; Resolution: Available;	$150.78	4
018	14N0203CP	A PILLAR - FINISHER - RH	14N0203CP A PILLAR - FINISHER - RH Row ID: ID__00RA559_ContPgHS; Resolution: Available;	-	2	Enquire
042	14NA325SP	NVH RR CAPPING PANEL	14NA325SP NVH RR CAPPING PANEL Row ID: ID__15AB656CP_ContPgHS; Resolution: Available;	-	1	Enquire
