27 - NVH - HEAT INSULATION - 27.2 - INSULATION - VEHICLE MOUNTED of McLaren McLaren Senna GTR

View All

McLaren Senna GTR - 27 - NVH - HEAT INSULATION - 27.2 - INSULATION - VEHICLE MOUNTED (27)

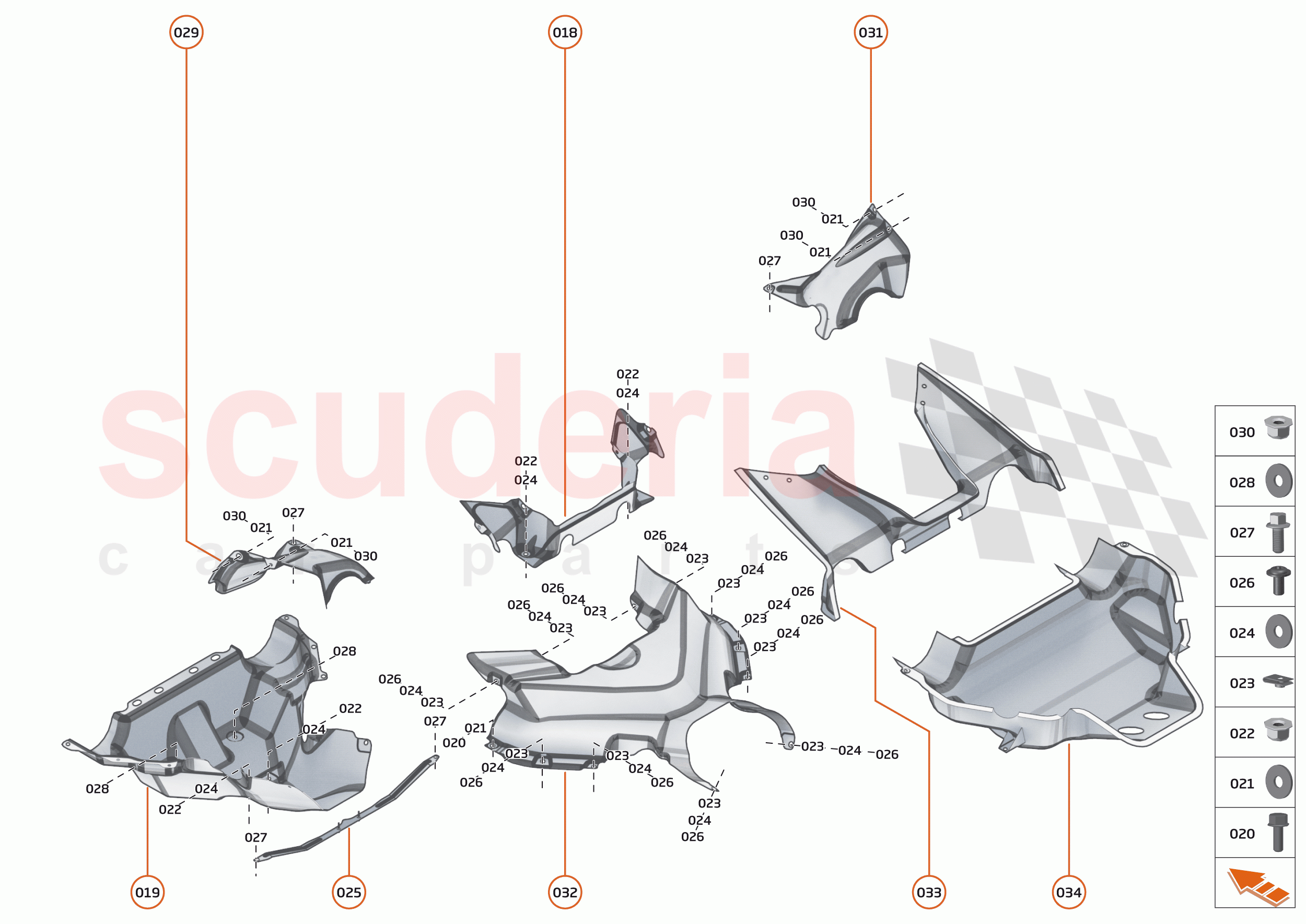

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	15EA007CP	HEATSHIELD - MUFFLER - FRONT	$164.88	To Order

Photo	Part No	Description	Price (each)	Stock
	15EA021CP	HEATSHIELD - MUFFLER - LOWER	$284.33	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA061	Screw - M6x16 - Flange Hex	Enquire	To Order
	00RX001	BOLT - M5X16 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC077	WASHER - M6X18X1.6 - STAINLESS STEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA582	NUT - M5 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA301	Clip - Spier - M5 - 0.5/2.1-SS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC017	WASHER - M5X15X1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15EA018CP	BRACKET - MUFFLER - LOWER HEATSHIELD	$101.53	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA064	BOLT - M5X12 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA313	SCREW - M6X16 - HEX - SILVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC043	WASHER - M6XOD25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15EA009CP	AIR GUIDE - FRONT - LH	$184.77	To Order
	14E0044CP	HEATSHIELD - AIR GUIDE - FRONT - LH	$130.89	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA011	NUT-HEX HEAD-FLANGE-M6-8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15EA011CP	AIR GUIDE - FRONT - RH	$184.77	To Order

Photo	Part No	Description	Price (each)	Stock
	15EA020CP	HEATSHIELD - UPPER MUFFLER - NO VALVES	$192.93	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
018	15EA007CP	HEATSHIELD - MUFFLER - FRONT	15EA007CP HEATSHIELD - MUFFLER - FRONT	$164.88	1
019	15EA021CP	HEATSHIELD - MUFFLER - LOWER	15EA021CP HEATSHIELD - MUFFLER - LOWER	$284.33	1
020	00RA061	Screw - M6x16 - Flange Hex	00RA061 Screw - M6x16 - Flange Hex	-	2	Enquire
020	00RX001	BOLT - M5X16 - HEX	00RX001 BOLT - M5X16 - HEX	-	2	Enquire
021	00RC077	WASHER - M6X18X1.6 - STAINLESS STEEL	00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL	-	5	Enquire
022	00RA582	NUT - M5 - HEX	00RA582 NUT - M5 - HEX	-	4	Enquire
023	00RA301	Clip - Spier - M5 - 0.5/2.1-SS	00RA301 Clip - Spier - M5 - 0.5/2.1-SS	-	10	Enquire
024	00RC017	WASHER - M5X15X1.2	00RC017 WASHER - M5X15X1.2	-	14	Enquire
025	15EA018CP	BRACKET - MUFFLER - LOWER HEATSHIELD	15EA018CP BRACKET - MUFFLER - LOWER HEATSHIELD	$101.53	1
026	00RA064	BOLT - M5X12 - HEX	00RA064 BOLT - M5X12 - HEX	-	12	Enquire
027	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER	-	2	Enquire
028	00RC043	WASHER - M6XOD25	00RC043 WASHER - M6XOD25	-	2	Enquire
029	15EA009CP	AIR GUIDE - FRONT - LH	15EA009CP AIR GUIDE - FRONT - LH	$184.77	1
029	14E0044CP	HEATSHIELD - AIR GUIDE - FRONT - LH	14E0044CP HEATSHIELD - AIR GUIDE - FRONT - LH	$130.89	1
030	00RA011	NUT-HEX HEAD-FLANGE-M6-8	00RA011 NUT-HEX HEAD-FLANGE-M6-8	-	4	Enquire
031	15EA011CP	AIR GUIDE - FRONT - RH	15EA011CP AIR GUIDE - FRONT - RH	$184.77	1
032	15EA020CP	HEATSHIELD - UPPER MUFFLER - NO VALVES	15EA020CP HEATSHIELD - UPPER MUFFLER - NO VALVES	$192.93	1
