19 - AERO MECHANISMS - 19.2 - REAR ACTIVE AERO MECHANISMS of McLaren McLaren Senna

View All

McLaren Senna - 19 - AERO MECHANISMS - 19.2 - REAR ACTIVE AERO MECHANISMS (19)

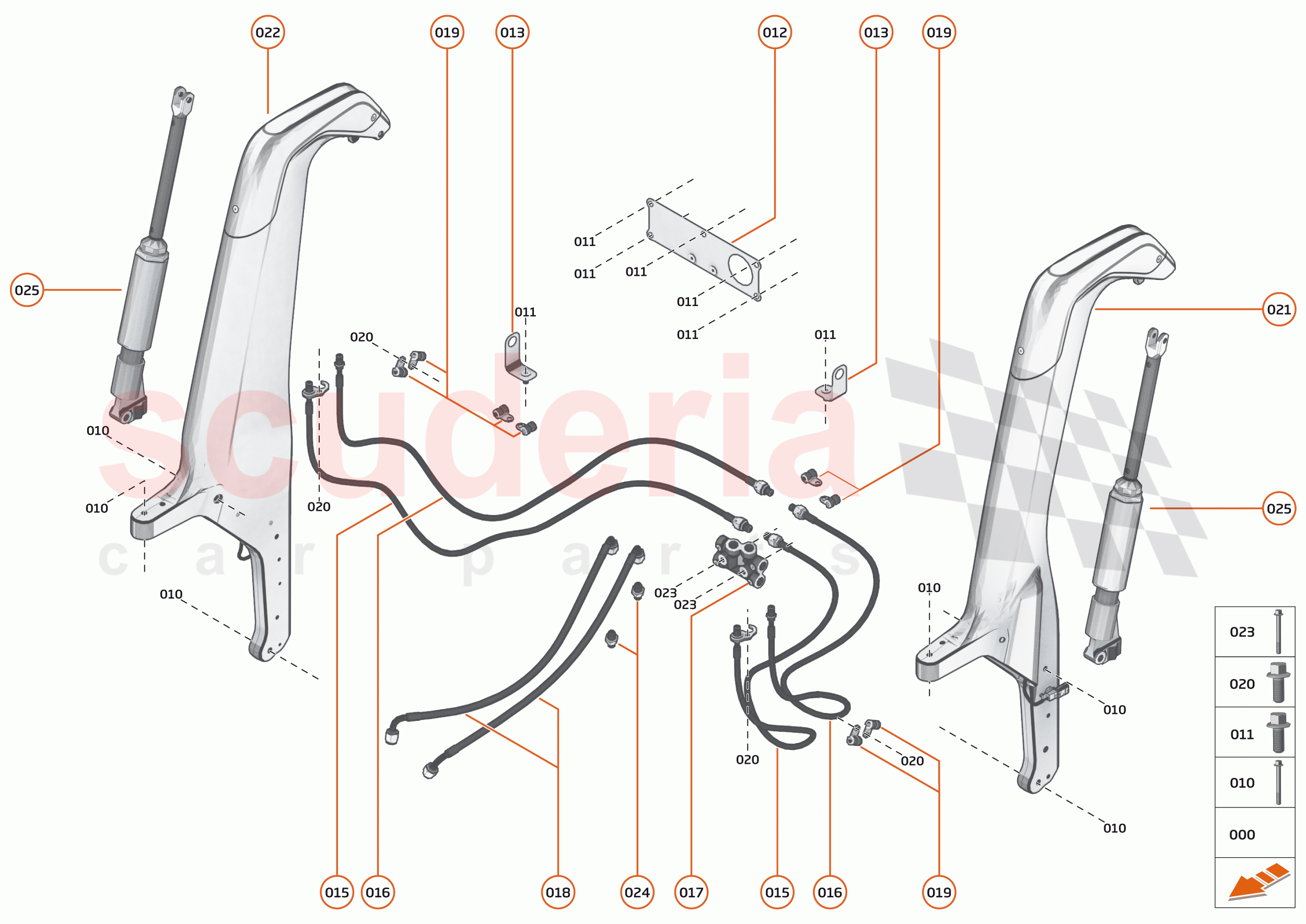

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA481	BOLT - HEX HEAD - FLANGED - M8X45	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA313	SCREW - M6X16 - HEX - SILVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AC963CP	BRACKET - AIRBRAKE MANIFOLD	$45.14	To Order

Photo	Part No	Description	Price (each)	Stock
	15AC097CP	BRACKET - AIRBRAKE HOSE SUPPORT	$39.56	To Order

Photo	Part No	Description	Price (each)	Stock
	15AC936CP	HOSE - ACTUATOR - UNION MANIFOLD	$188.76	To Order

Photo	Part No	Description	Price (each)	Stock
	15AC937CP	HOSE - ACTUATOR - UNION MANIFOLD	$209.37	To Order

Photo	Part No	Description	Price (each)	Stock
	11A4676CP	Hose - Airbrake - Union Manifold	$172.62	To Order

Photo	Part No	Description	Price (each)	Stock
	15AC167CP	HOSE - GEARBOX TO MANIFOLD	$104.68	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB098	P-CLIP - DIA 10 - SILICONE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA083	SCREW - M6X20 - FLANGE HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AD292CP	AIR BRAKE MECHANISMS - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AD294CP	AIR BRAKE MECHANISMS - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA594	SCREW - M6X55 - FLANGE HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14A0110CP	HOSE - CONNECTOR - GEARBOX - 8MM	$17.23	To Order

Photo	Part No	Description	Price (each)	Stock
	15AC825CP	ASSY ACTUATOR - REAR WING	$2,093.72	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA481	BOLT - HEX HEAD - FLANGED - M8X45	00RA481 BOLT - HEX HEAD - FLANGED - M8X45	-	6	Enquire
011	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER	-	7	Enquire
012	15AC963CP	BRACKET - AIRBRAKE MANIFOLD	15AC963CP BRACKET - AIRBRAKE MANIFOLD Superseded parts: 15AC102CP;	$45.14	1
013	15AC097CP	BRACKET - AIRBRAKE HOSE SUPPORT	15AC097CP BRACKET - AIRBRAKE HOSE SUPPORT	$39.56	2
015	15AC936CP	HOSE - ACTUATOR - UNION MANIFOLD	15AC936CP HOSE - ACTUATOR - UNION MANIFOLD Superseded parts: 15AC207CP;	$188.76	2
016	15AC937CP	HOSE - ACTUATOR - UNION MANIFOLD	15AC937CP HOSE - ACTUATOR - UNION MANIFOLD Superseded parts: 15AC208CP;	$209.37	2
017	11A4676CP	Hose - Airbrake - Union Manifold	11A4676CP Hose - Airbrake - Union Manifold	$172.62	1
018	15AC167CP	HOSE - GEARBOX TO MANIFOLD	15AC167CP HOSE - GEARBOX TO MANIFOLD	$104.68	2
019	00RB098	P-CLIP - DIA 10 - SILICONE	00RB098 P-CLIP - DIA 10 - SILICONE	-	8	Enquire
020	00RA083	SCREW - M6X20 - FLANGE HEX	00RA083 SCREW - M6X20 - FLANGE HEX	-	4	Enquire
021	15AD292CP	AIR BRAKE MECHANISMS - LH	15AD292CP AIR BRAKE MECHANISMS - LH	-	1	Enquire
022	15AD294CP	AIR BRAKE MECHANISMS - RH	15AD294CP AIR BRAKE MECHANISMS - RH	-	1	Enquire
023	00RA594	SCREW - M6X55 - FLANGE HEX	00RA594 SCREW - M6X55 - FLANGE HEX	-	2	Enquire
024	14A0110CP	HOSE - CONNECTOR - GEARBOX - 8MM	14A0110CP HOSE - CONNECTOR - GEARBOX - 8MM	$17.23	2
025	15AC825CP	ASSY ACTUATOR - REAR WING	15AC825CP ASSY ACTUATOR - REAR WING	$2,093.72	1
026	15AC828CP	POSITION SENSOR RR - ROTARY VERT-X 13E - REAR	15AC828CP POSITION SENSOR RR - ROTARY VERT-X 13E - REAR	$704.93	1
027	15AD331CP	PYLON MECH - COVER BOLT - AEROBRAKE	15AD331CP PYLON MECH - COVER BOLT - AEROBRAKE	$3.26	1
028	15AD333CP	AIR BRAKE - MECHANISM	15AD333CP AIR BRAKE - MECHANISM	-	1	Enquire
