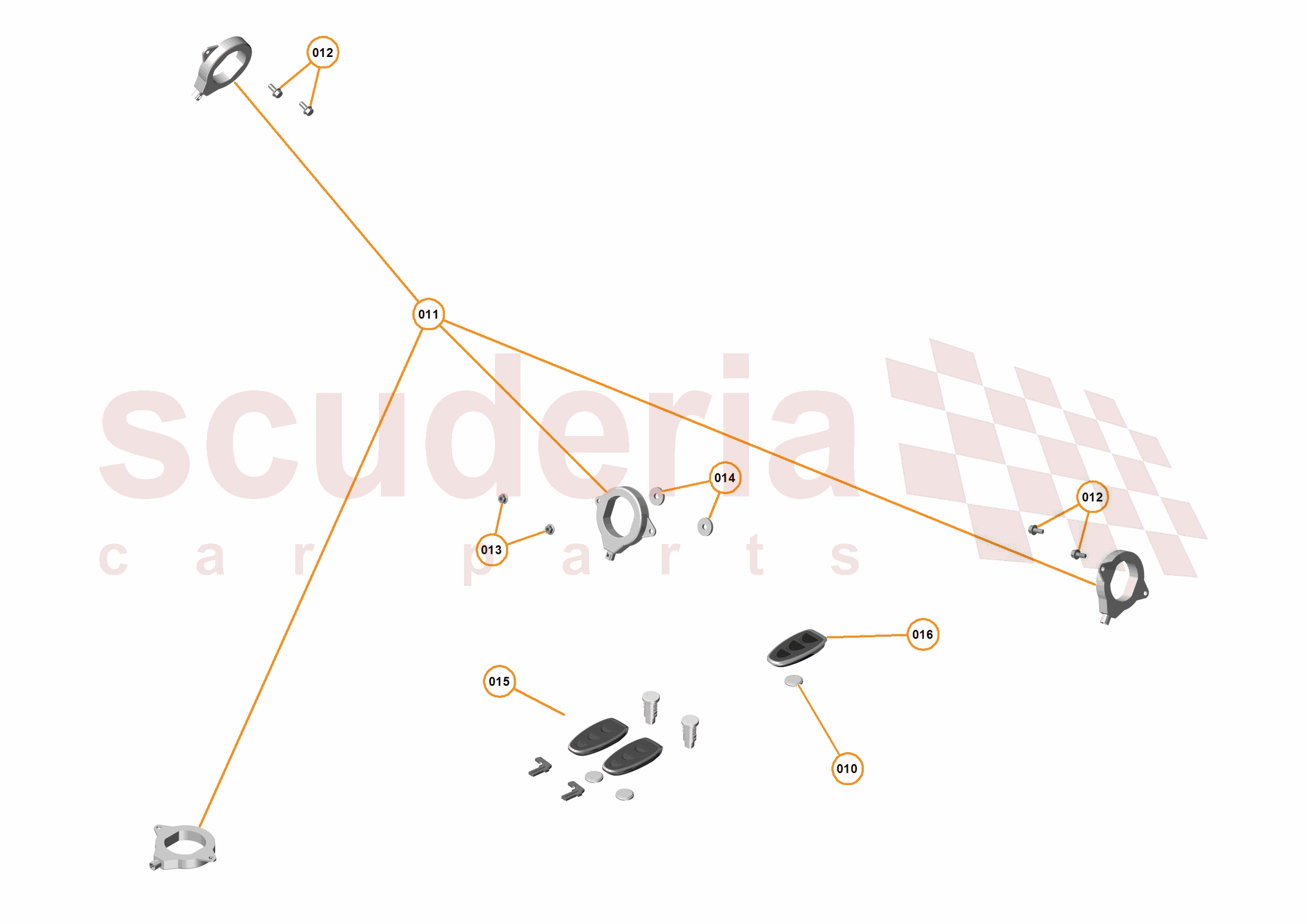

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	14FA155CP	PIPE - OIL SEPERATOR	$183.62	To Order

Photo	Part No	Description	Price (each)	Stock
	14AC556CP	LUGGAGE BIN - FRONT - FIRE EXTINGUISHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14N1306CP	BRACKET - SPEAKER - REAR QUARTER - RH	$75.92	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA074	NUT-HEX HEAD FLANGE-M5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14FA106CP	PIPE - FEED - ENGINE OIL - TANK TO ENGINE	Enquire	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	14FA155CP	PIPE - OIL SEPERATOR	14FA155CP PIPE - OIL SEPERATOR Row ID: ID_BGMB0601_11M1213CP_ContPgHS; Resolution: Available;	$183.62	1
011	14AC556CP	LUGGAGE BIN - FRONT - FIRE EXTINGUISHER	14AC556CP LUGGAGE BIN - FRONT - FIRE EXTINGUISHER Row ID: ID_BGMB0602_11M0436CP_ContPgHS; Resolution: Available;	-	4	Enquire
012	14N1306CP	BRACKET - SPEAKER - REAR QUARTER - RH	14N1306CP BRACKET - SPEAKER - REAR QUARTER - RH Row ID: ID_BGMB0603_00RA064_ContPgHS; Resolution: Available;	$75.92	4
013	00RA074	NUT-HEX HEAD FLANGE-M5	00RA074 NUT-HEX HEAD FLANGE-M5 Row ID: ID_BGMB0604_00RA074_ContPgHS; Resolution: Available;	-	2	Enquire
014	14FA106CP	PIPE - FEED - ENGINE OIL - TANK TO ENGINE	14FA106CP PIPE - FEED - ENGINE OIL - TANK TO ENGINE Row ID: ID_BGMB0605_00RC049_ContPgHS; Resolution: Available;	-	2	Enquire
015	11F0919CP	O-ring - Hose - Oil Tank	11F0919CP O-ring - Hose - Oil Tank Row ID: ID_BGMB0606_12M0738CP_ContPgHS; Resolution: Available;	$25.37	1
015	14FA223CP	OIL TANK FILLER ASSY	14FA223CP OIL TANK FILLER ASSY Row ID: ID_BGMB0607_12M0749CP_ContPgHS; Resolution: Available;	$406.43	1
016	14FA211CP	CAP - ENGINE - OIL FILLER	14FA211CP CAP - ENGINE - OIL FILLER Row ID: ID_BGMB0608_11M2410CP_ContPgHS; Resolution: Available;	$57.92	1
016	11F1595CP	BOWL - OIL FILLER - COUPE	11F1595CP BOWL - OIL FILLER - COUPE Row ID: ID_BGMB0609_11M2411CP_ContPgHS; Resolution: Available;	$209.00	1
