6 - Active Aero - 6.2 - Rear Active Aero Panels

McLaren Ultimate Series McLaren P1 Coupe

Find Your Part

McLaren Ultimate Series McLaren P1 Coupe - 6 - ACTIVE AERO - 6.2 - REAR ACTIVE AERO PANELS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14AC655CP STRUCTUAL PLATE - COVER UPPER DOOR HINGE - LH $45.65 To Order
Photo Part No Description Price (each) Stock
14AC657CP STRUCTUAL PLATE - COVER UPPER DOOR HINGE - RH $45.65 To Order
14AC542CP TAPE – STONE PROTECTION – BODYSIDE LOWER – LH $60.19 To Order
Photo Part No Description Price (each) Stock
14AA890CP CHEATER PANEL - RH $71.23 To Order
14AA893CP CHEATER PANEL - LH $71.23 To Order
Photo Part No Description Price (each) Stock
14AB114CP DECK VENT - REAR Enquire To Order
Photo Part No Description Price (each) Stock
14AA032MP DECK VENT - REAR - GLOSS CARBON FIBRE Enquire To Order
Photo Part No Description Price (each) Stock
00RA521 SCREW - BUTTON HEAD - HEX - M5X16-10.9-86 Enquire To Order
Photo Part No Description Price (each) Stock
00RA621 SCREW - M6X24 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
00RC017 WASHER - M5X15X1.2 Enquire To Order
Photo Part No Description Price (each) Stock
14AC162CP ASSY - SERVICE COVER - INC. MESH $2,393.20 To Order
Photo Part No Description Price (each) Stock
14AC838CP ASSY - CF SERVICE COVER AIH - INC. MESH $4,343.26 To Order
Photo Part No Description Price (each) Stock
14AB233CP SUPPORT - WIPER COVER - LH $135.11 To Order
View All

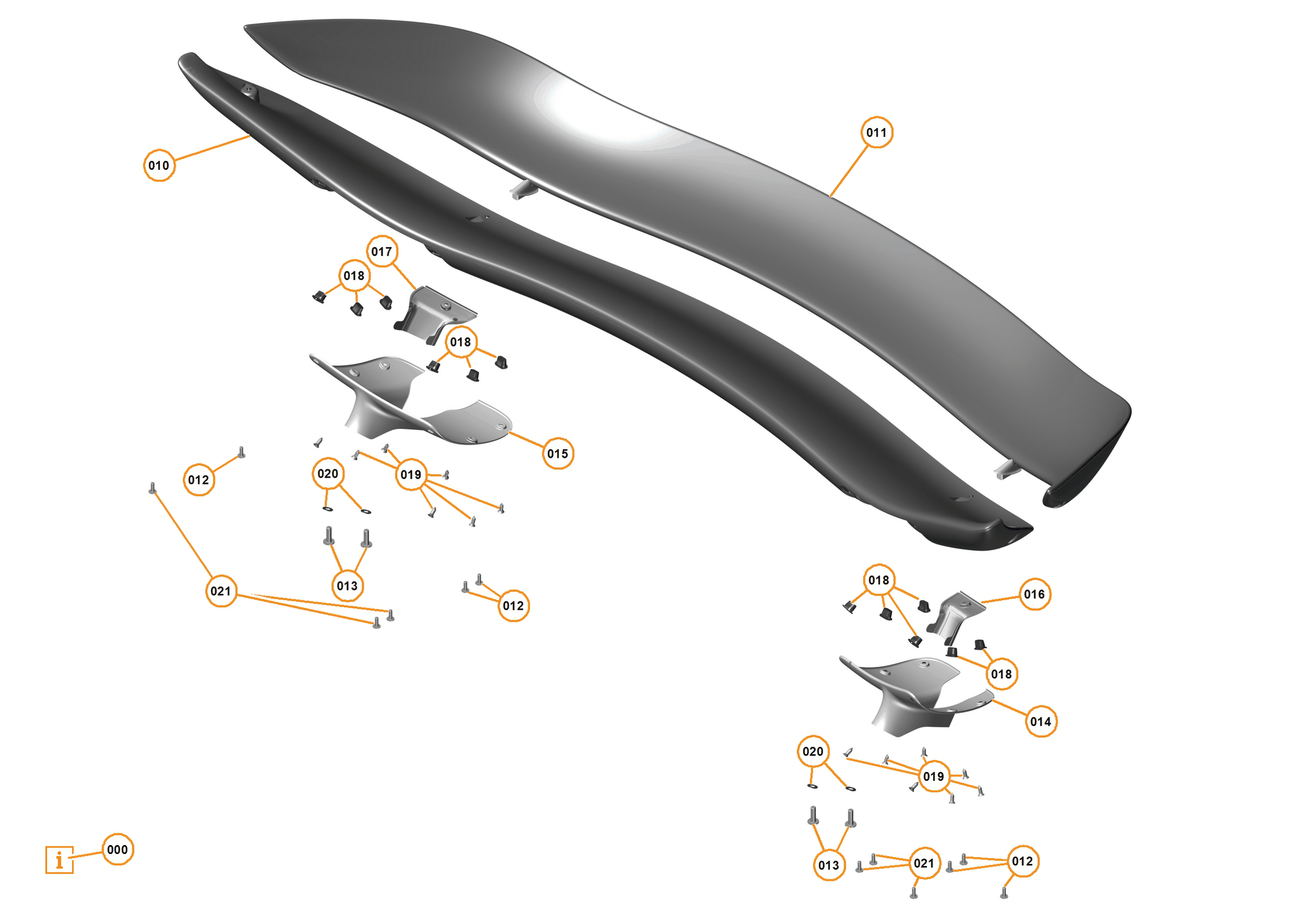

6 - ACTIVE AERO - 6.2 - REAR ACTIVE AERO PANELS of McLaren McLaren Ultimate Series McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 14AC655CP
STRUCTUAL PLATE - COVER UPPER DOOR HINGE - LH
Row ID: ID_BBAG0301_12A2966CP_ContPgHS; Resolution: Available; 		$45.65 1
010 14AC657CP
STRUCTUAL PLATE - COVER UPPER DOOR HINGE - RH
Row ID: ID_BBAG0302_12A2644CP_ContPgHS; Resolution: Available; 		$45.65 1
010 14AC542CP
TAPE – STONE PROTECTION – BODYSIDE LOWER – LH
Row ID: ID_BBAG0314_12A3348CP_ContPgHS; Resolution: Available; 		$60.19 1
011 14AA890CP
CHEATER PANEL - RH
Row ID: ID_BBAG0303_12A2645CP_ContPgHS; Resolution: Available; 		$71.23 1
011 14AA893CP
CHEATER PANEL - LH
Row ID: ID_BBAG0313_12A3349CP_ContPgHS; Resolution: Available; 		$71.23 1
012 14AB114CP
DECK VENT - REAR
Row ID: ID_BBAG0304_00RA108_ContPgHS; Resolution: Available; 		- 6 Enquire
013 14AA032MP
DECK VENT - REAR - GLOSS CARBON FIBRE
Row ID: ID_BBAG0305_00RA078_ContPgHS; Resolution: Available; 		- 4 Enquire
014 00RA521
SCREW - BUTTON HEAD - HEX - M5X16-10.9-86
Row ID: ID_BBAG0306_12A3127CP_ContPgHS; Resolution: Available; 		- 1 Enquire
015 00RA621
SCREW - M6X24 - BUTTON
Row ID: ID_BBAG0307_12A3128CP_ContPgHS; Resolution: Available; 		- 1 Enquire
016 00RC017
WASHER - M5X15X1.2
Row ID: ID_BBAG0308_12A2508CP_ContPgHS; Resolution: Available; 		- 1 Enquire
017 14AC162CP
ASSY - SERVICE COVER - INC. MESH
Row ID: ID_BBAG0309_12A2509CP_ContPgHS; Resolution: Available; 		$2,393.20 1
018 14AC838CP
ASSY - CF SERVICE COVER AIH - INC. MESH
Row ID: ID_BBAG0310_00RA470_ContPgHS; Resolution: Available; 		$4,343.26 12
021 14AB233CP
SUPPORT - WIPER COVER - LH
Row ID: ID_BBAG0315_00RA492_ContPgHS; Resolution: Available; 		$135.11 6
