McLaren GT McLaren GT - 33 - HVAC - 33.2 - HVAC FLUIDS CIRCUIT

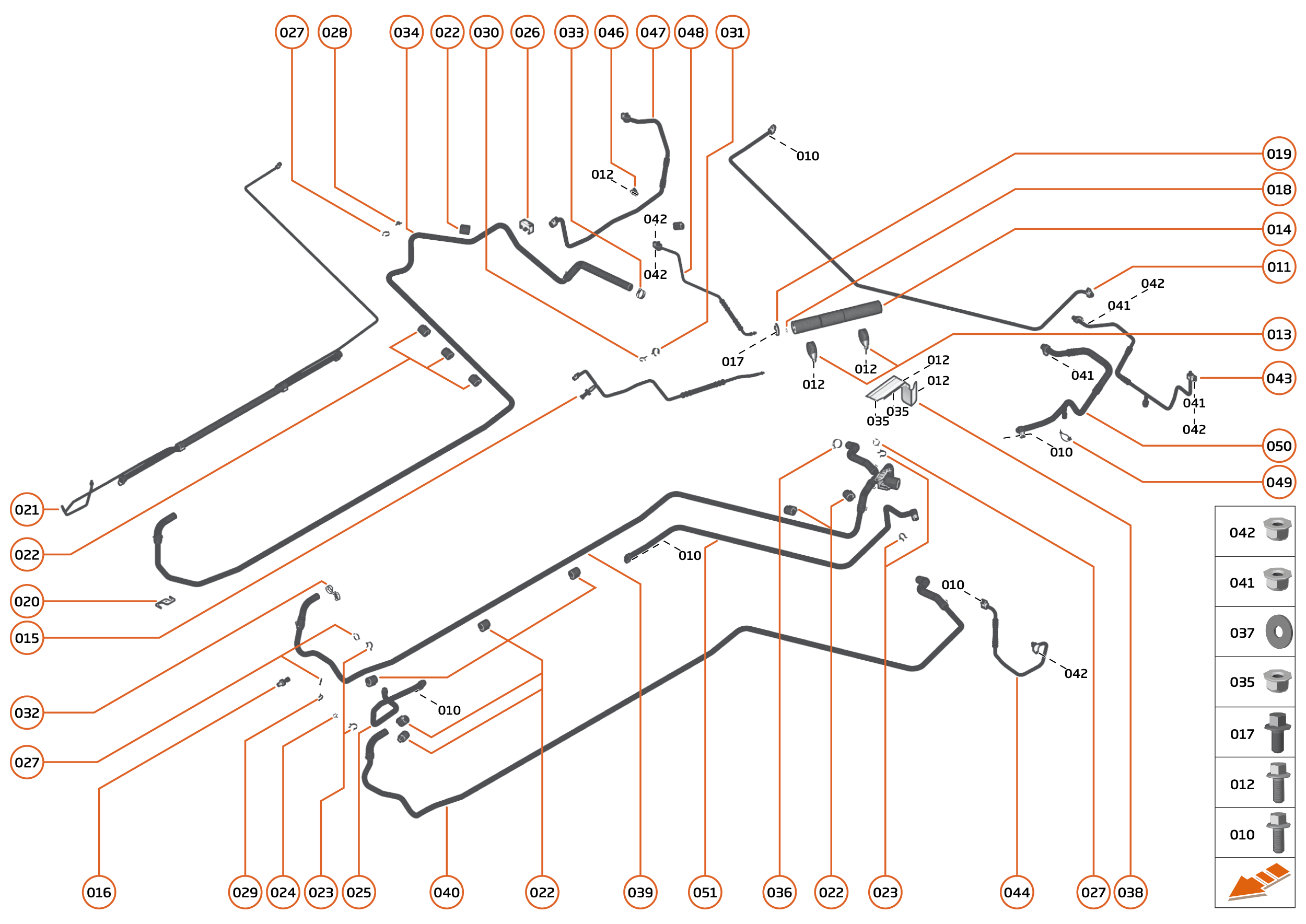

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA120	SCREW - M6X25 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14A1645CP	HOSE - CONDENSER LATERAL - CENTRE - HVAC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA313	SCREW - M6X16 - HEX - SILVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB029	P CLIP - DIA 45-M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A2757CP	RECEIVER DRIER - HVAC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13A4104CP	HOSE - RECEIVER DRIER - HVAC - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A6627CP	SENSOR - PRESSURE - HVAC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA002	BOLT - M8X20 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC038	WASHER - WAVE M8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A4433CP	CLAMP PLATE - RECEIVER DRIER - HVAC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A4434CP	CLAMP PLATE - HVAC EVAPORATOR CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14A3051CP	INTERNAL HEAT EXCHANGER UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA367	PIPE PROTECTOR - 19MM ID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB007	CLIP - 18-20MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB045	CLIP - 9.5-10MM - MALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13A3307CP	PIPE - EVAPORATOR - INTERNAL HEAT EXCHANGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14A3034CP	CLIP - HEATER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB008	CLIP - 18-20MM - MALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB019	CLIP - 90DEG - FEMALE - 10-12MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB032	CLIP - 13-14MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB120	CLIP - 90 DEGREE - FEMALE - 20-22	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB202	CLAMP - SPRING BAND - 23X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB204	CLAMP - SPRING BAND - 27X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14A4228CP	HOSE - HEATER TO PUMP - HVAC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB145	CLAMP - SPRING BAND - 26/12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC013	WASHER - M6X18X1.6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13LA034CP	BRACKET - SUPPORT - HVAC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14LA045CP	HOSE - HEATER TO ENGINE - INCLUDING VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14A1799CP	HOSE - HEATER TO ENGINE - HVAC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA011	NUT-HEX HEAD-FLANGE-M6-8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA075	NUT - M8-8 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	22AC290GP	ASSY-HOSE-COMPRESSOR-CONDENSOR - 1234YF	Enquire	To Order
	22AA945GP	ASSY-HOSE-COMPRESSOR-CONDENSOR - 134A	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	22AA947GP	ASSY HOSE-CONDENSOR LATERAL-LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB027	P-CLIP - DIAMETER 13 - M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	22AA949GP	ASSY HOSE-CONDENSOR LATERAL-RH-STD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	22AA951GP	ASSY-HOSE-CONDENSER-RECIEVER DRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL001	CABLE TIE - FIRTREE BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	22LA052GP	ASSY-HOSE-HVAC-COMPRESSOR-REAR R134A	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14A1800CP	PIPE - INTERNAL HEAT EXCHANGER - COMPRESSOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA120	SCREW - M6X25 - HEX	00RA120 SCREW - M6X25 - HEX Row ID: ID__00RA120_ContPgHS;	-	1	Enquire
011	14A1645CP	HOSE - CONDENSER LATERAL - CENTRE - HVAC	14A1645CP HOSE - CONDENSER LATERAL - CENTRE - HVAC Row ID: ID__14A1645CP_ContPgHS;	-	1	Enquire
012	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID__00RA313_ContPgHS;	-	3	Enquire
013	00RB029	P CLIP - DIA 45-M6	00RB029 P CLIP - DIA 45-M6 Row ID: ID__00RB029_ContPgHS;	-	1	Enquire
014	12A2757CP	RECEIVER DRIER - HVAC	12A2757CP RECEIVER DRIER - HVAC Row ID: ID__12A2757CP_ContPgHS;	-	1	Enquire
015	13A4104CP	HOSE - RECEIVER DRIER - HVAC - REAR	13A4104CP HOSE - RECEIVER DRIER - HVAC - REAR Row ID: ID__13A4104CP_ContPgHS;	-	1	Enquire
016	11A6627CP	SENSOR - PRESSURE - HVAC	11A6627CP SENSOR - PRESSURE - HVAC Row ID: ID__11A6627CP_ContPgHS;	-	1	Enquire
017	00RA002	BOLT - M8X20 - HEX	00RA002 BOLT - M8X20 - HEX Row ID: ID__00RA002_ContPgHS;	-	8	Enquire
018	00RC038	WASHER - WAVE M8	00RC038 WASHER - WAVE M8 Row ID: ID__00RC038_ContPgHS;	-	1	Enquire
019	11A4433CP	CLAMP PLATE - RECEIVER DRIER - HVAC	11A4433CP CLAMP PLATE - RECEIVER DRIER - HVAC Row ID: ID__11A4433CP_ContPgHS;	-	1	Enquire
020	11A4434CP	CLAMP PLATE - HVAC EVAPORATOR CONNECTION	11A4434CP CLAMP PLATE - HVAC EVAPORATOR CONNECTION Row ID: ID__11A4434CP_ContPgHS;	-	1	Enquire
021	14A3051CP	INTERNAL HEAT EXCHANGER UNIT	14A3051CP INTERNAL HEAT EXCHANGER UNIT Row ID: ID__14A3051CP_ContPgHS;	-	1	Enquire
022	00RA367	PIPE PROTECTOR - 19MM ID	00RA367 PIPE PROTECTOR - 19MM ID Row ID: ID__00RA367_ContPgHS;	-	2	Enquire
023	00RB007	CLIP - 18-20MM - FEMALE	00RB007 CLIP - 18-20MM - FEMALE Row ID: ID__00RB007_ContPgHS;	-	1	Enquire
024	00RB045	CLIP - 9.5-10MM - MALE	00RB045 CLIP - 9.5-10MM - MALE Row ID: ID__00RB045_ContPgHS;	-	1	Enquire
025	13A3307CP	PIPE - EVAPORATOR - INTERNAL HEAT EXCHANGER	13A3307CP PIPE - EVAPORATOR - INTERNAL HEAT EXCHANGER Row ID: ID__13A3307CP_ContPgHS;	-	1	Enquire
026	14A3034CP	CLIP - HEATER PIPE	14A3034CP CLIP - HEATER PIPE Row ID: ID__14A3034CP_ContPgHS;	-	1	Enquire
027	00RB008	CLIP - 18-20MM - MALE	00RB008 CLIP - 18-20MM - MALE Row ID: ID__00RB008_ContPgHS;	-	1	Enquire
028	00RB019	CLIP - 90DEG - FEMALE - 10-12MM	00RB019 CLIP - 90DEG - FEMALE - 10-12MM Row ID: ID__00RB019_ContPgHS;	-	1	Enquire
029	00RB032	CLIP - 13-14MM - FEMALE	00RB032 CLIP - 13-14MM - FEMALE Row ID: ID__00RB032_ContPgHS;	-	1	Enquire
030	00RB034	CLIP - 14-15MM - MALE	00RB034 CLIP - 14-15MM - MALE Row ID: ID__00RB034_ContPgHS;	-	1	Enquire
031	00RB120	CLIP - 90 DEGREE - FEMALE - 20-22	00RB120 CLIP - 90 DEGREE - FEMALE - 20-22 Row ID: ID__00RB120_ContPgHS;	-	1	Enquire
032	00RB202	CLAMP - SPRING BAND - 23X12	00RB202 CLAMP - SPRING BAND - 23X12 Row ID: ID__00RB202_ContPgHS;	-	2	Enquire
033	00RB204	CLAMP - SPRING BAND - 27X12	00RB204 CLAMP - SPRING BAND - 27X12 Row ID: ID__00RB204_ContPgHS;	-	1	Enquire
034	14A4228CP	HOSE - HEATER TO PUMP - HVAC	14A4228CP HOSE - HEATER TO PUMP - HVAC Row ID: ID__14A4228CP_ContPgHS;	-	1	Enquire
035	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS;	-	4	Enquire
036	00RB145	CLAMP - SPRING BAND - 26/12	00RB145 CLAMP - SPRING BAND - 26/12 Row ID: ID__00RB145_ContPgHS;	-	1	Enquire
037	00RC013	WASHER - M6X18X1.6	00RC013 WASHER - M6X18X1.6 Row ID: ID__00RC013_ContPgHS;	-	10	Enquire
038	13LA034CP	BRACKET - SUPPORT - HVAC	13LA034CP BRACKET - SUPPORT - HVAC Row ID: ID__13LA034CP_ContPgHS;	-	1	Enquire
039	14LA045CP	HOSE - HEATER TO ENGINE - INCLUDING VALVE	14LA045CP HOSE - HEATER TO ENGINE - INCLUDING VALVE Row ID: ID__14LA045CP_ContPgHS;	-	1	Enquire
040	14A1799CP	HOSE - HEATER TO ENGINE - HVAC	14A1799CP HOSE - HEATER TO ENGINE - HVAC Row ID: ID__14A1799CP_ContPgHS;	-	1	Enquire
041	00RA011	NUT-HEX HEAD-FLANGE-M6-8	00RA011 NUT-HEX HEAD-FLANGE-M6-8 Row ID: ID__00RA011_ContPgHS;	-	6	Enquire
042	00RA075	NUT - M8-8 - HEX	00RA075 NUT - M8-8 - HEX Row ID: ID__00RA075_ContPgHS;	-	2	Enquire
043	22AC290GP	ASSY-HOSE-COMPRESSOR-CONDENSOR - 1234YF	22AC290GP ASSY-HOSE-COMPRESSOR-CONDENSOR - 1234YF Row ID: ID__22AC290GP_ContPgHS;	-	1	Enquire
043	22AA945GP	ASSY-HOSE-COMPRESSOR-CONDENSOR - 134A	22AA945GP ASSY-HOSE-COMPRESSOR-CONDENSOR - 134A Row ID: ID__22AA945GP_ContPgHS;	-	1	Enquire
044	22AA947GP	ASSY HOSE-CONDENSOR LATERAL-LH	22AA947GP ASSY HOSE-CONDENSOR LATERAL-LH Row ID: ID__22AA947GP_ContPgHS;	-	1	Enquire
045	00RA366	PIPE PROTECTOR - 13MM ID	00RA366 PIPE PROTECTOR - 13MM ID Row ID: ID__00RA366_ContPgHS;	-	1	Enquire
046	00RB027	P-CLIP - DIAMETER 13 - M6	00RB027 P-CLIP - DIAMETER 13 - M6 Row ID: ID__00RB027_ContPgHS;	-	3	Enquire
047	22AA949GP	ASSY HOSE-CONDENSOR LATERAL-RH-STD	22AA949GP ASSY HOSE-CONDENSOR LATERAL-RH-STD Row ID: ID__22AA949GP_ContPgHS;	-	1	Enquire
048	22AA951GP	ASSY-HOSE-CONDENSER-RECIEVER DRIER	22AA951GP ASSY-HOSE-CONDENSER-RECIEVER DRIER Row ID: ID__22AA951GP_ContPgHS;	-	1	Enquire
049	00RL001	CABLE TIE - FIRTREE BASE	00RL001 CABLE TIE - FIRTREE BASE Row ID: ID__00RL001_ContPgHS;	-	5	Enquire
050	22LA052GP	ASSY-HOSE-HVAC-COMPRESSOR-REAR R134A	22LA052GP ASSY-HOSE-HVAC-COMPRESSOR-REAR R134A Row ID: ID__22LA052GP_ContPgHS;	-	1	Enquire
051	14A1800CP	PIPE - INTERNAL HEAT EXCHANGER - COMPRESSOR	14A1800CP PIPE - INTERNAL HEAT EXCHANGER - COMPRESSOR Row ID: ID__14A1800CP_ContPgHS;	-	1	Enquire
