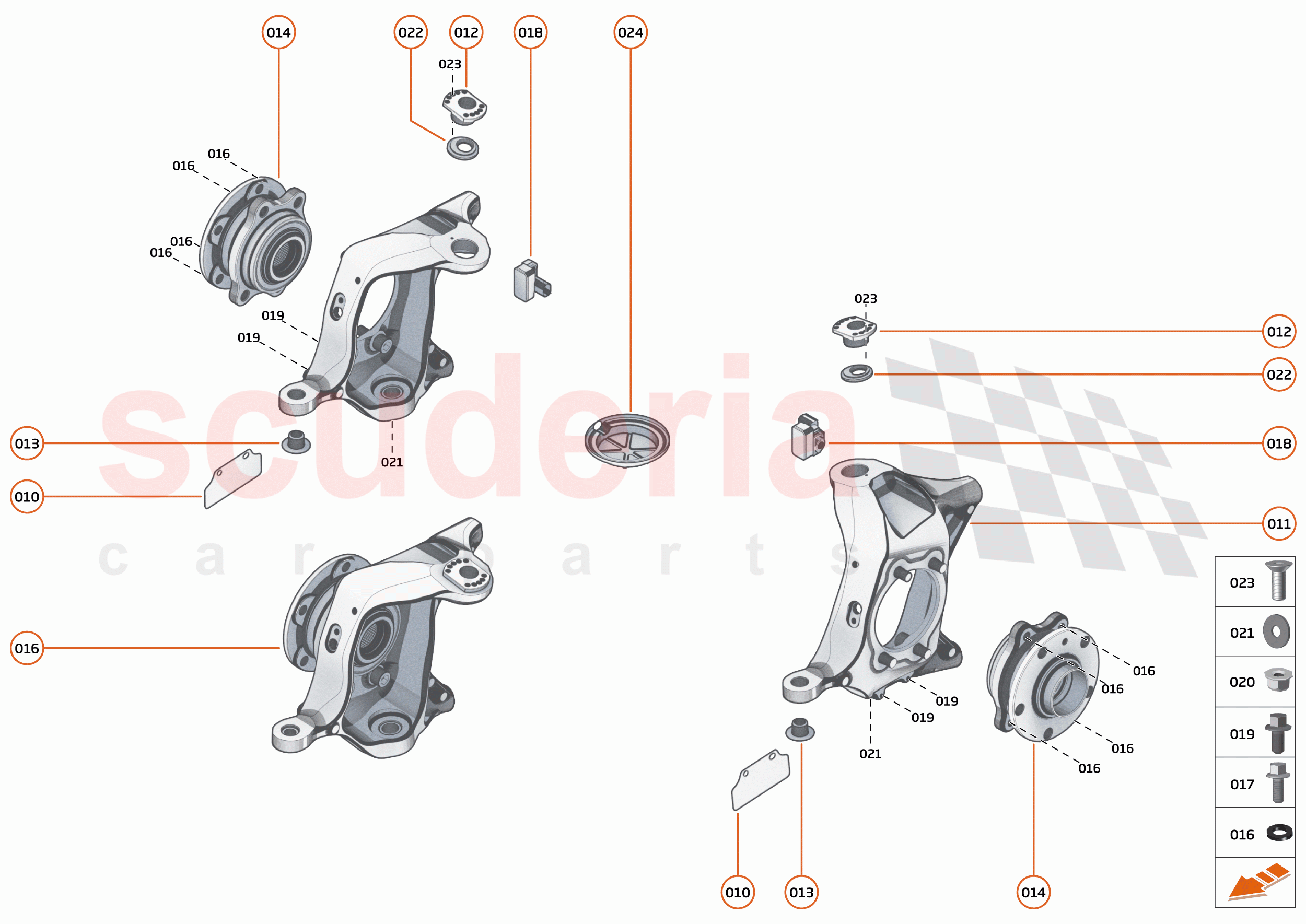

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	14B0431CP	HEATSHIELD - SUSPENSION UPRIGHT - LOWER	$16.09	To Order

Photo	Part No	Description	Price (each)	Stock
	22BA135GP	- LOWER - FRONT - RH	$974.90	To Order

Photo	Part No	Description	Price (each)	Stock
	11B0541CP	TOPHAT - CAMBER ADJUSTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13B0750CP	TOPHAT - TRACKROD - 1.6 TAPER	$25.37	To Order

Photo	Part No	Description	Price (each)	Stock
	13BA350RP	WHEEL HUB ASSY - BEARING	$491.14	To Order

Photo	Part No	Description	Price (each)	Stock
	22BA137GP	- SUSPENSION - FRONT - LH	$974.90	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA083	SCREW - M6X20 - FLANGE HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14M0358CP	SENSOR - ACCELEROMETER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA165	BOLT - M5X8 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA229	NUT - M14X1.5 - LOCKED HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11B0320CP	WASHER - DIA 35X3.9X14.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11B0739CP	WASHER - CAMBER ADJUSTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11B0993CP	SCREW - M3X12 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13BA459RP	PROTECTOR CAP - HUB	$16.22	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	14B0431CP	HEATSHIELD - SUSPENSION UPRIGHT - LOWER	14B0431CP HEATSHIELD - SUSPENSION UPRIGHT - LOWER	$16.09	1
011	22BA135GP	- LOWER - FRONT - RH	22BA135GP - LOWER - FRONT - RH	$974.90	1
012	11B0541CP	TOPHAT - CAMBER ADJUSTMENT	11B0541CP TOPHAT - CAMBER ADJUSTMENT	-	1	Enquire
013	13B0750CP	TOPHAT - TRACKROD - 1.6 TAPER	13B0750CP TOPHAT - TRACKROD - 1.6 TAPER	$25.37	1
014	13BA350RP	WHEEL HUB ASSY - BEARING	13BA350RP WHEEL HUB ASSY - BEARING	$491.14	1
015	14B0714CP	WASHER - M12X23	14B0714CP WASHER - M12X23	$2.82	4
016	22BA137GP	- SUSPENSION - FRONT - LH	22BA137GP - SUSPENSION - FRONT - LH	$974.90	1
017	00RA083	SCREW - M6X20 - FLANGE HEX	00RA083 SCREW - M6X20 - FLANGE HEX	-	3	Enquire
018	14M0358CP	SENSOR - ACCELEROMETER	14M0358CP SENSOR - ACCELEROMETER	-	1	Enquire
019	00RA165	BOLT - M5X8 - HEX	00RA165 BOLT - M5X8 - HEX	-	2	Enquire
020	00RA229	NUT - M14X1.5 - LOCKED HEX	00RA229 NUT - M14X1.5 - LOCKED HEX	-	2	Enquire
021	11B0320CP	WASHER - DIA 35X3.9X14.5	11B0320CP WASHER - DIA 35X3.9X14.5	-	1	Enquire
022	11B0739CP	WASHER - CAMBER ADJUSTMENT	11B0739CP WASHER - CAMBER ADJUSTMENT	-	1	Enquire
023	11B0993CP	SCREW - M3X12 - HEX	11B0993CP SCREW - M3X12 - HEX	-	1	Enquire
024	13BA459RP	PROTECTOR CAP - HUB	13BA459RP PROTECTOR CAP - HUB CAP - HUB; Superseded parts: 13BA357RP;	$16.22	1
