3 - REAR STRUCTURES - 3.1 - REAR FRAME of McLaren McLaren GT McLaren GT

View All

McLaren GT McLaren GT - 3 - REAR STRUCTURES - 3.1 - REAR FRAME

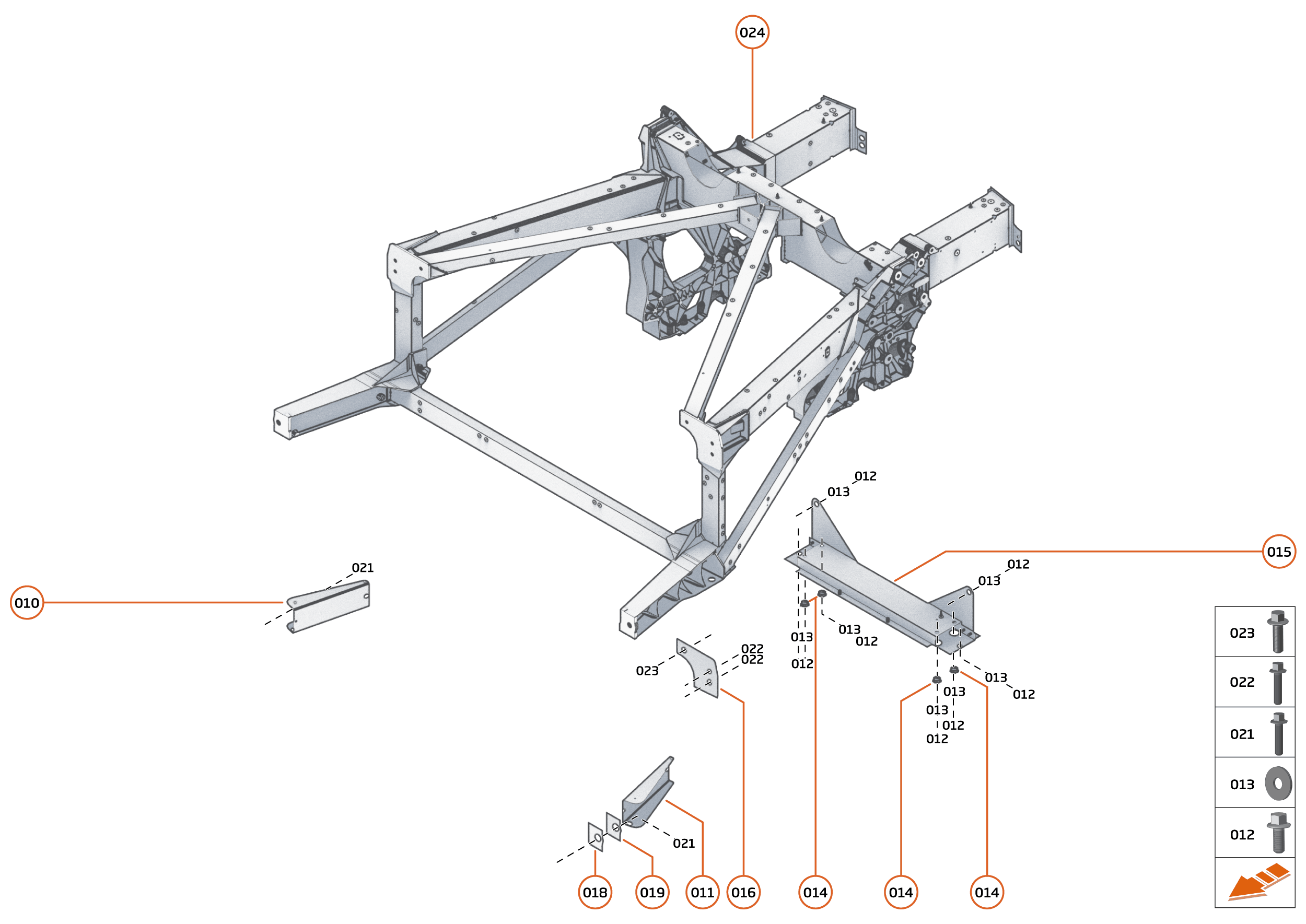

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	11A3816CP	COVER FRAME BULKHE24 MNTG LWR-	11A3816CP COVER FRAME BULKHE24 MNTG LWR- Row ID: ID__11A3816CP_ContPgHS;	$95.65	1
011	11A3817CP	COVER FRAME BULKHE24 MNTG LWR-	11A3817CP COVER FRAME BULKHE24 MNTG LWR- Row ID: ID__11A3817CP_ContPgHS;	$95.65	1
012	00RA457	SCREW - M10X30-10.9 - HEX	00RA457 SCREW - M10X30-10.9 - HEX Row ID: ID__00RA457_ContPgHS;	-	8	Enquire
013	00RC065	WASHER - M10X21X2.0	00RC065 WASHER - M10X21X2.0 Row ID: ID__00RC065_ContPgHS;	-	4	Enquire
014	11A4284CP	PLUG - DOME - 25 DIAMETER	11A4284CP PLUG - DOME - 25 DIAMETER Row ID: ID__11A4284CP_ContPgHS;	-	4	Enquire
015	14AA942CP	CROSS BEAM - TRANSMISSION FLOOR	14AA942CP CROSS BEAM - TRANSMISSION FLOOR Row ID: ID__14AA942CP_ContPgHS;	-	1	Enquire
015	11A4416CP	CROSS BEAM - TRANSMISSION FLOOR	11A4416CP CROSS BEAM - TRANSMISSION FLOOR Row ID: ID__11A4416CP_ContPgHS;	-	1	Enquire
016	14AB836CP	SHIM - 0.5MM - REAR - UPPER	14AB836CP SHIM - 0.5MM - REAR - UPPER Row ID: ID__14AB836CP_ContPgHS;	-	1	Enquire
016	14AB835CP	SHIM - 1MM - REAR - UPPER	14AB835CP SHIM - 1MM - REAR - UPPER Row ID: ID__14AB835CP_ContPgHS;	-	1	Enquire
016	14AB834CP	SHIM - 2MM - REAR - UPPER	14AB834CP SHIM - 2MM - REAR - UPPER Row ID: ID__14AB834CP_ContPgHS;	-	1	Enquire
018	14AB839CP	SHIM - 0.5MM - REAR - LOWER	14AB839CP SHIM - 0.5MM - REAR - LOWER Row ID: ID__14AB839CP_ContPgHS;	-	1	Enquire
018	14AB837CP	SHIM - 2MM - REAR - LOWER	14AB837CP SHIM - 2MM - REAR - LOWER Row ID: ID__14AB837CP_ContPgHS;	-	1	Enquire
019	14AB838CP	SHIM - 1MM - REAR - LOWER	14AB838CP SHIM - 1MM - REAR - LOWER Row ID: ID__14AB838CP_ContPgHS;	-	1	Enquire
021	00RA164	BOLT-HEX HEAD-FLANGE-M16X80-10	00RA164 BOLT-HEX HEAD-FLANGE-M16X80-10 Row ID: ID__00RA164_ContPgHS;	-	2	Enquire
022	00RA400	SCREW - HEX HEAD - M10X60 - 10.9	00RA400 SCREW - HEX HEAD - M10X60 - 10.9 Row ID: ID__00RA400_ContPgHS;	-	4	Enquire
023	00RA559	BOLT - HEX HEAD - M10X1.5X40	00RA559 BOLT - HEX HEAD - M10X1.5X40 Row ID: ID__00RA559_ContPgHS;	-	2	Enquire
024	14AC731CP	FRAME ASSY - REAR	14AC731CP FRAME ASSY - REAR Row ID: ID__14AC731CP_ContPgHS;	-	1	Enquire
