21 - ENGINE - 21.11 - ENGINE WATER PUMP & WATER CIRCUIT of McLaren McLaren Ultimate Series McLaren Elva

View All

McLaren Ultimate Series McLaren Elva - 21 - ENGINE - 21.11 - ENGINE WATER PUMP & WATER CIRCUIT

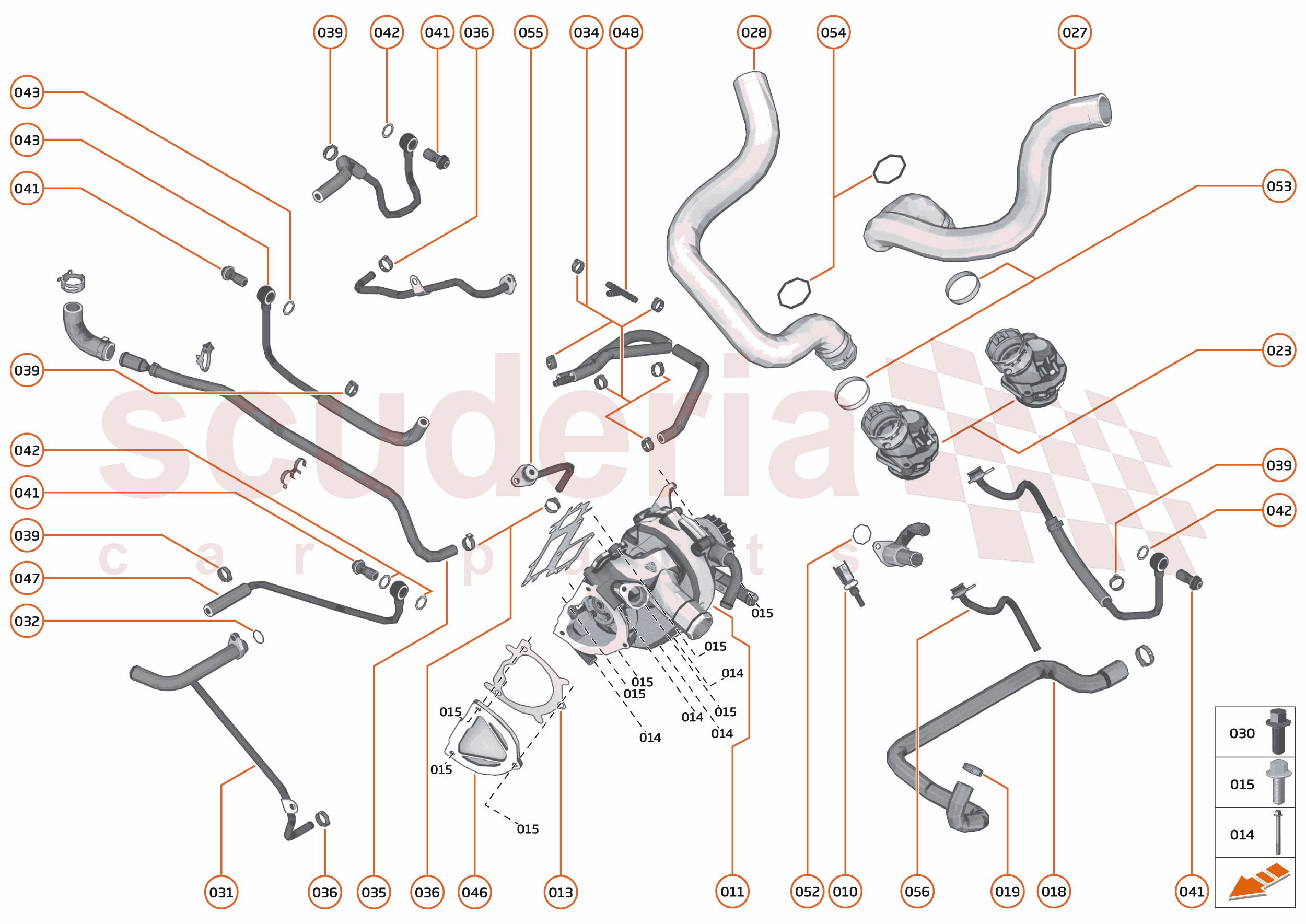

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	16AC879CP	FOAM-NITTO 1010 355X25X15	$15.34	To Order

Photo	Part No	Description	Price (each)	Stock
	14FA182CP	Water Pump - Engine	$1,602.02	To Order

Photo	Part No	Description	Price (each)	Stock
	11F2434CP	Gasket - Water Pump Cover - Engine	$14.53	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA451	SCREW - M4X16 - BUTTON - FLANGED - BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14HA035RP	BRACKET - ESG SYMPOSER	$54.81	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA564	NUT - M4 - FLANGE HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AD350CP	HIDE GAP NEOPRENE FIRM GRADE - 180X5X8	$8.27	To Order

Photo	Part No	Description	Price (each)	Stock
	13FA050CP	Thermostat Assy - Engine - inc. Gasket	$240.35	To Order

Photo	Part No	Description	Price (each)	Stock
	16AD483CP	DUCT- HTR OUTLET RH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	16AA813CP	PANEL DOP RR EXTENSION RH	16AA813CP PANEL DOP RR EXTENSION RH Row ID: ID__11F2412CP_ContPgHS; Resolution: Available;	-	2	Enquire
010	16AC879CP	FOAM-NITTO 1010 355X25X15	16AC879CP FOAM-NITTO 1010 355X25X15 Row ID: ID__11F2418CP_ContPgHS; Resolution: Available;	$15.34	1
011	14FA182CP	Water Pump - Engine	14FA182CP Water Pump - Engine Row ID: ID__14FA182CP_ContPgHS; Resolution: Available;	$1,602.02	1
013	11F2434CP	Gasket - Water Pump Cover - Engine	11F2434CP Gasket - Water Pump Cover - Engine Row ID: ID__11F2434CP_ContPgHS; Resolution: Available;	$14.53	1
014	00RA451	SCREW - M4X16 - BUTTON - FLANGED - BLACK	00RA451 SCREW - M4X16 - BUTTON - FLANGED - BLACK Row ID: ID__11FA031CP_ContPgHS; Resolution: Available;	-	4	Enquire
015	14HA035RP	BRACKET - ESG SYMPOSER	14HA035RP BRACKET - ESG SYMPOSER Row ID: ID__11F1793CP_ContPgHS; Resolution: Available;	$54.81	16
018	00RA564	NUT - M4 - FLANGE HEX	00RA564 NUT - M4 - FLANGE HEX Row ID: ID__13F0866CP_ContPgHS; Resolution: Available;	-	1	Enquire
019	16AD350CP	HIDE GAP NEOPRENE FIRM GRADE - 180X5X8	16AD350CP HIDE GAP NEOPRENE FIRM GRADE - 180X5X8 Row ID: ID__11F1859CP_ContPgHS; Resolution: Available;	$8.27	1
022	16AD482CP	DUCT- HTR OUTLET LH	16AD482CP DUCT- HTR OUTLET LH Row ID: ID__11F1791CP_ContPgHS; Resolution: Available;	$362.02	2
023	13FA050CP	Thermostat Assy - Engine - inc. Gasket	13FA050CP Thermostat Assy - Engine - inc. Gasket Row ID: ID__13FA050CP_ContPgHS; Resolution: Available;	$240.35	2
056	16AD483CP	DUCT- HTR OUTLET RH	16AD483CP DUCT- HTR OUTLET RH Row ID: ID__13F0829CP_ContPgHS; Resolution: Available;	-	1	Enquire
